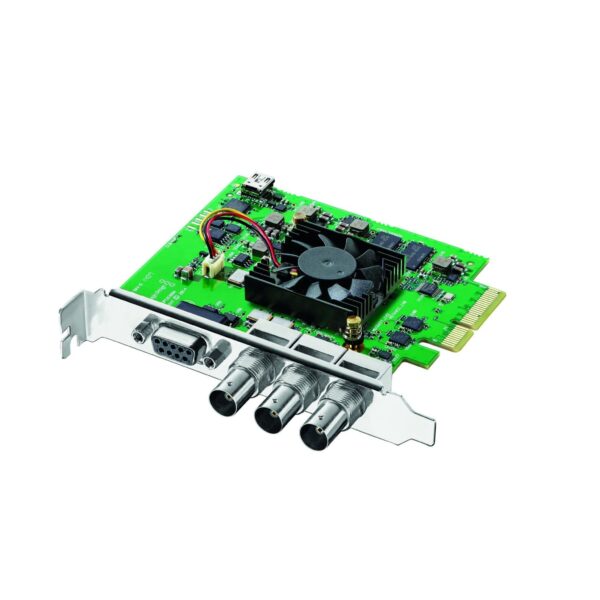

Blackmagic DeckLink SDI 4K – 6G-SDI Video Capture and Playback Card
The Blackmagic DeckLink SDI 4K is a high-performance PCIe capture and playback card designed for professional video workflows requiring ultra-clean SDI signal processing. Featuring a single 6G-SDI input and output, the DeckLink SDI 4K supports video resolutions up to Ultra HD 2160p30, making it a powerful and cost-effective solution for broadcast, post-production, and live video applications.
This card offers 10-bit YUV and 12-bit RGB support for uncompromising image fidelity, as well as embedded audio, reference input for sync, and compatibility with major video software on macOS, Windows, and Linux. Whether you’re capturing, monitoring, or delivering SD, HD, or Ultra HD video, the DeckLink SDI 4K ensures consistent and reliable performance.
Key Features:
- Single 6G-SDI input and output for up to Ultra HD 2160p30
- Supports SD, HD, 3G-SDI, and 6G-SDI formats
- 10-bit YUV and 12-bit RGB color depth
- Embedded SDI audio (up to 16 channels)
- Reference input for genlock and sync
- Compatible with macOS, Windows, and Linux
- Supports popular software like DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, and more
Technical Specifications:
- SDI Video Input: 1 x 6G-SDI (10-bit YUV or 12-bit RGB)
- SDI Video Output: 1 x 6G-SDI (10-bit YUV or 12-bit RGB)
- Supported Video Formats: SD (525i/625i), HD (720p, 1080i, 1080p), Ultra HD (2160p30)
- Audio Input/Output: 16 channels embedded in SDI
- Reference Input: Blackburst or tri-sync
- PCI Express Interface: PCIe x4 lane Gen 2 (compatible with x8 and x16 slots)
- Color Precision: 10-bit YUV, 12-bit RGB 4:4:4
- Software Support: DaVinci Resolve, Media Composer, Premiere Pro, Final Cut Pro, and more
- Operating System Support: macOS, Windows, Linux
Ideal For:
The DeckLink SDI 4K is ideal for broadcasters, editors, and system integrators who need a compact yet powerful SDI I/O solution for Ultra HD workflows. From live production and color grading to ingest and playout, it offers the essential features professionals require in demanding environments.
Deliver stunning video with the Blackmagic DeckLink SDI 4K – engineered for high-quality, broadcast-level SDI capture and playback.
