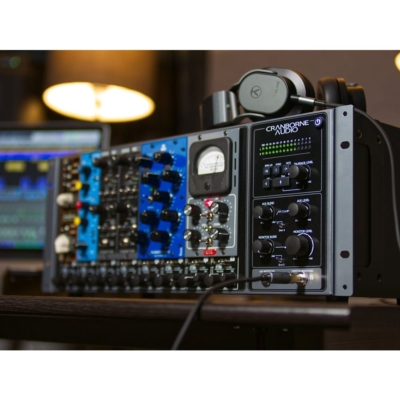

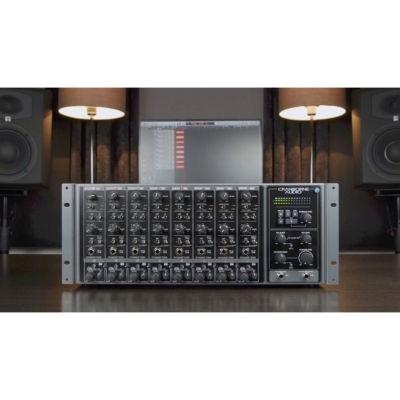

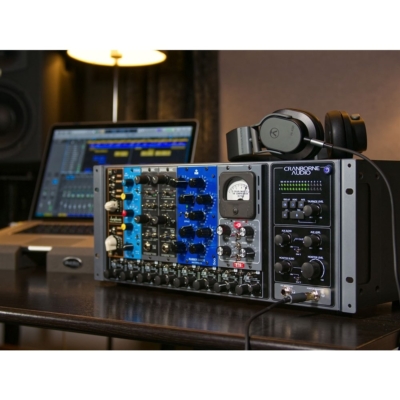

Cranborne Audio 500R8

500R8 is the centerpiece to the modern studio. It’s a 28-in/30-out USB audio interface that combines a 500 series rack and high-performance AD/DA conversion with all of the connectivity required in the modern professional or home studio. 500R8 features the studio essentials that you need to build your dream studio such as an 8-into-2 high-headroom analogue summing mixer, comprehensive monitor controller with talkback facility, 16-in/16-out ADAT interface, as well as a zero -latency analogue artist mixer with reference-quality, high-powered headphone outputs.

The Best Of Analogue Character – Thanks To 500 Series

By capitalizing on the vast and ever growing 500 series market, you can configure your 500R8 to suit your tastes of analogue flavour. By installing your favorite 500 series modules into the 8 available 500 series slots, you can create your ultimate analogue front-end/preamp stage that can be multi-track recorded directly into your DAW. Fill 500R8 full of vintage preamps for recording drums. Fill 500R8 full of clean and pristine preamps for recording strings. Fill 500R8 full of Preamp, EQ, and Compressor modules to create your own custom, analogue channel strips. The possibilities are endless and every 500R8 is unique to your sound. Integrating 500 series modules into your workflow doesn’t stop after the recording. Dedicated module source switches for each 500 series slot allow you to send USB channels from your DAW, into 500R8, through the 8 installed 500 series modules, and back into your DAW for recording (with that analogue ‘mojo’ applied). Think of 500R8 as a bank of 8 external Analogue Plug-ins. For a more hands-on, all-analogue approach to mixing, 500R8 also features an 8-into-2 high-headroom analogue summing mixer with dedicated level and pan controls that you can use to create your own high-headroom analogue mix before recording it back into your DAW using dedicated USB inputs 9/10.

Digital Precision

In order to capture every subtle nuance of your analogue signal, 500R8 features reference-class AD/DA conversion with 121dB (A-wtd) dynamic range and THD+N of< 0.00032% (@ -4dBFS, 1kHz, A-wtd), all governed by the 500R8’s master-reference grade internal clock with< 0.5 picoseconds of jitter. The combination of highly-accurate, low-jitter clocking and high-performance digital conversion ensures that every ounce of analogue character is captured with the utmost detail – free of unwanted digital artefacts from the conversion process and with a wide dynamic range thanks to 500R8’s high -headroom analogue design and low noise floor. Cranborne Audio’s USB 2.0 audio interface provides high channel-count and low-latency performance whilst being accepted by all PC/macOS devices with unparalleled stability and longevity. 500R8 is core audio compliant for macOS or features a lightweight control panel for Windows machines that absorbs as little CPU resources as possible to leave you with more power for plug-ins within your DAW session. Plug 500R8 into your PC/macOS device and your DAW will see a full 28-in, 30-out USB audio interface. 500R8 also includes a full complement of 5-pin MIDI I/O, ADAT I/O, Word Clock I/O via BNC, and S/PDIF I/O to ensure that all of your digital studio connectivity is covered.

Monitor Controller

The 500R8 features a comprehensive monitor controller with connectivity for two sets of studio monitors. As well as seamless speaker switching between both sets of studio monitors, there’s a Mono button that sums LR channels to check for mono compatibility, a DIM switch that drops the speaker volume by 12dB for relaxed discussions during recordings, and a speaker mute switch for when you are tracking with headphones. 500R8 also features a comprehensive Talkback section with XLR input, 48v phantom power, push-to-talk operation, and automatic signal routing to all CAST and headphones outputs connected to the system.

Humming Mixer

Analogue summing can give your mix the final bit of analogue character required to achieve professional and polished sonic results. What makes 500R8’s 8-into-2 channel summing mixer so special is that it is positioned after the 8 500 series slots – allowing you to insert saturation or subtle ‘bus-compression’ modules and create a stereo mix using 500R8’s dedicated analogue level and pan controls beneath each module. 500R8’s humming mixer also has a dedicated converter which can be used to record your stereo mix into your DAW on USB inputs 9/10 with a massive +24dBu of headroom.

Zero-Latency Artist Mixer

500R8 moves away from clunky “virtual” software mixers and gets your hands back onto the mix. By using the 500R8’s high-headroom analogue summing mixer, you can create zero-latency, all-analogue mixes of live sources that can be blended with discrete USB playback paths and sent directly to the recording musicians via CAST or the local headphone outputs.

CAST Equipped

CAST stands for Cat 5 Analogue Snake Transport and enables cost effective and organized cable management around your studio. CAST repurposes off-the-shelf, shielded Cat5 Networking cables to transport 4 channels of balanced analogue audio over a single cable. 500R8 has 4 CAST IN ports that allow you to connect CAST enabled breakout boxes (such as the Cranborne Audio N22 and N22H) to 500R8 and relocate analogue I/O wherever it is needed around the studio. Connect mic/line sources into the CAST breakout box and that signal travels through the Cat 5 cable and directly into the modules installed into 500R8. At the same time, the analogue mix created on 500R8 is sent through the same cable and into the connected breakout box. This allows for seamless analogue audio connectivity between the control room, live room, vocal booth, or the bedroom next door! CAST is 100% analogue and requires no setup in order to operate. It can easily work at distances up to 100m when Cat 6e or Cat 7 cable is used and a complete cat 5 studio cabling infrastructure costs a fraction of what analogue multi core would cost. No setup. No latency. No fuss. And it sounds great.

Designed and Engineered in the UK

To ensure that every product bearing the Cranborne Audio name is worthy of studio environments big or small, all 500R8’s are manufactured in the UK under the company’s watchful eye. 500R8 is carefully assembled by a skilled workforce with immense attention to detail and every product is tested thoroughly by a skilled engineer before shipping to destinations around the world.

Key Features

28-in/30-out USB 2.0 audio interface – Low-latency USB 2.0 interface with high-stability and compatibility with a wide range of PC/macOS devices. – ADAT I/O (16/16 channels @ 44.1/48kHz, 8/8 channels @ 88.2/96kHz) – S/PDIF I/O – 5-pin MIDI I/O

High-performance A/D conversion – Dynamic Range: 121dB A-weighted, AES17 method, 20Hz – 20kHz – Frequency Response: -1dB, 2.2Hz to> 80kHz – THD+N:< 0.00032% (-110dB) @ -4dBFS, 20Hz – 40kHz, 1kHz, A-weighted – Max Input Level: +24dBu

High-performance D/A conversion – Dynamic Range: 121dB A-weighted, AES17 method, 20Hz – 20kHz – Frequency Response: -1dB,< 1Hz two> 61kHz – THD+N:< 0.0003% (-110.5dB) @ -4dBFS, 20Hz – 40kHz, 1kHz, A-weighted – Max Output Level: +24dBu

Master reference-quality internal clock – Capable of 44.1, 48, 88.2, 96, 176.4, and 192kHz operation -< 0.5ps of jitter – Dedicated Word Clock Input and Output via BNC – External sync options using Word Clock BNC, S/PDIF, or ADAT

Monitor controller with talkback – Speaker A/B switching, Mono check, Dim, Mute, and 28-segment peak meter – Dedicated talkback input with phantom power, push-to-talk activation, and automatic routing to all headphone and CAST facilities – Easy -access illuminated front panel controls for all monitor controller functions.

Analogue summing mixer – 8-into-2 analogue summing mixer with +26.5dBu of headroom, dedicated ADC, and balanced 1/4″ jack outputs – CAST link port for increasing summing mixer to 16-into-2 using Cranborne Audio 500ADAT

Zero-latency artist mixer – Zero-latency analogue artist mixer with physical level/pan controls per channel and DAW return blend controls – 2 high-power headphone outputs with independent blend and level controls

Reference-Quality Headphone Outputs – THD+N:< 0.0006% (-104.4dB) @ 20dBu, 1kHz, A-weighted, 300ohm load – Output Wattage (1kHz): 250mW x 2 @ 600 ohms, 650mW x 2 @ 220 ohms, 1.21W x 2 @ 100 ohms, 500mW x 2 @ 32 ohms – Frequency Response: 1dB,< 1Hz two> 70kHz High-current 8-slot 500 series rack – 250mA current per-slot with 2A total for all slots – XLR inputs, XLR line outputs, and TRS Inserts (pre-ADC) per 500 series slot – Module source switching options to send Analogue , USB or external CAST signals through your favorite 500 series modules – Module bypass switches per-slot allowing 500R8 to be used without 500 series modules inserted.

CAST Compatible – CAST ports per channel for relocating analogue I/O around studio using passive or active CAST breakout boxes via standard shielded Cat 5

24v, 5a external locking power supply – External power supply for improved analogue audio performance and heat dissipation.

Designed and Engineered in the UK

– Each and every 500R8 is extensively tested by a team of dedicated engineers to ensure reliability and consistency.
