26-input, 40-channel rack mixer with stagebox and monitor mixer modes.

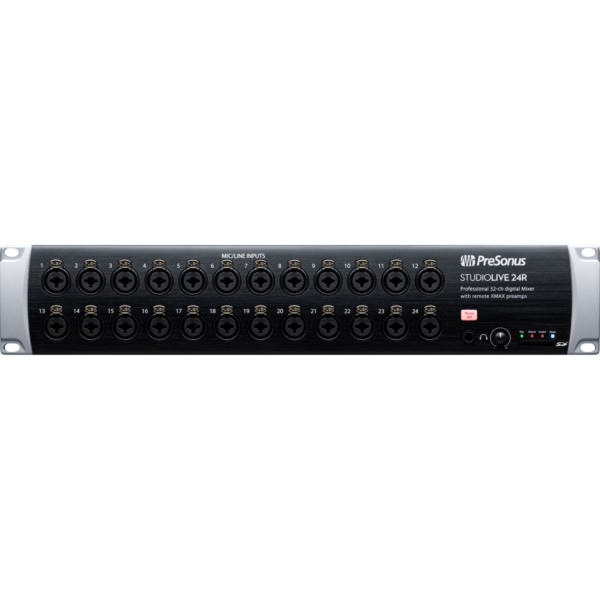

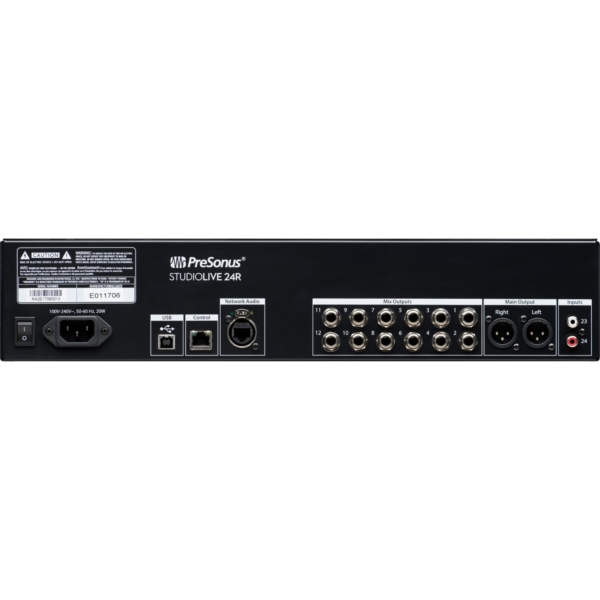

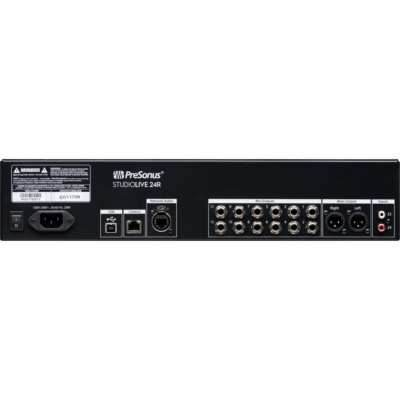

The StudioLive® 24R digital mixer is four audio tools in two compact rack spaces. Use it as a standalone digital mixer with Universal remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 128-channel (64×64) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
Inside the StudioLive 24R, the single-core PreSonus® FLEX DSP Engine powers 40 mixing channels, 22 mix buses, and 270 simultaneous processors, including 4 stereo effects and Fat Channel plug-in models on every input channel and mix bus. This is a true 24-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders.
An integrated 128-channel (64×64) audio interface lets you record with digitally recallable analog preamps and a complete rack of vintage EQ and dynamics processors for every channel and bus. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 24R and inside Studio One®, providing the ultimate mixing and recording flexibility.
Features
- Powered by the new dual-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
- 36 input-channel digital rack mixer with 24 local digitally controlled XMAX mic/line inputs and FLEX FX returns
- 26 mix buses: 16 FlexMixes (Aux, Subgroup, Matrix), 4 dedicated FLEX FX buses, and Stereo Main bus
- 286 simultaneous processors: HPF, Gate/Expander Compressor with Fat Channel plug-in models, 4-band/6-band parametric EQ with Fat Channel plug-in models, Limiter
- 31-band graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
- State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- 24 DCAs to control groups of channels
- 128-channel (64×64) recording over USB
- Onboard stereo SD recorder with true Virtual Soundcheck mode
- AVB networking onboard (64×64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
- Monitor Mix and Stage Box mode for use with StudioLive Series III console mixers
- Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
- Remote control every mix function from your computer, iPad®, or Android™ tablet with Universal Control (included)
- Put your musicians’ monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
- Capture® 3.0 multitrack software included with Automated Virtual Soundcheck
- Advanced Studio One® integration (12 months Studio One Pro + Included)
