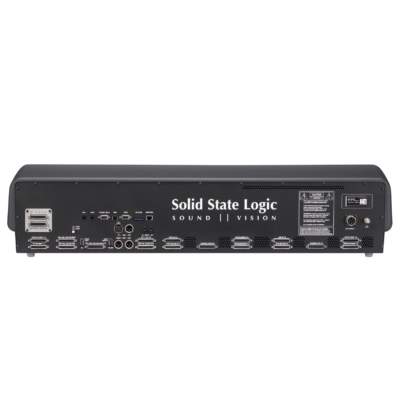

SSL Matrix 2 Delta

Matrix2 Delta is the latest addition to the well-known hybrid mixer Matrix. The Matrix 2 Delta provides even more control and is the ideal analog console / controller combination perfect for the modern hybrid production studio. The latest features allow full control of the analogue part, mix, sum, etc. directly in e.g. Pro Tools, Logic etc. Matrix 2 Delta is the most elegant solution available today when you want SSL audio integrated into a DAW-centric studio without having to compromise. The Matrix2 contains a whopping 40 input SuperAnalogue ™ sum mixer, full-featured Monitor Switching & Talkback and a built-in ‘Insert Router’. This makes it quick and easy to incorporate outboards or chains of outboards. 16 + 1 fader hardware control surface swaps with a single button press from control of the analog part of the mixer and analog signal path to comprehensive multi-layer DAW control surface.

Key Features

• NEW! δelta control automates your console within your DAW like a plug-in
• 40 input SuperAnalogue™ summing console:
• 16 analogue line channels with two inputs per channel
• 32 x 16 x 16 ‘Insert Router’ for up to 16 external hardware processing devices
• Hardware processors can be inserted via console controls or cross platform drag and drop software browser
• Hardware processors can be inserted individually or as ‘chains’
• Stereo Aux Send and 4 x Mono Sends per channel
• 4 Stereo Returns with full stereo mix bus routing
• Dual Stereo Mix Buses with summing Inserts and reassign
• Artist Monitor output with independent EQ and monitor source selection
• ‘In Line’ DAW monitoring with ‘SuperCue’ headphone mode
• Stereo or 5.1 External Monitor inputs
• Stereo or 5.1 EXT monitoring outputs with independent Main and Mini monitor control
• 5.1 Monitor card available as an upgrade for Matrix V1 owners: here.
• Stereo digital I/O (S/PDIF, AES/EBU) with SSL converter technology
• iJack front panel Monitor input
• Heavy duty external PSU
• Ergonomically advanced hybrid hardware control surface:
• Single button push flips control between the analogue signal path and DAW software
• Multi-layer control of up to four DAWs simultaneously
• Digital scribble strips for constant visual feedback
• 16 channel strips each with motorized fader and assignable rotary encoder
• Additional motorized ‘Focus’ fader for simultaneous DAW/Console control
• Fader linking for analogue channels
• Programmable hardware buttons for sending standard USB keyboard commands
• Total Recall for analogue console controls
• General purpose MIDI controller mode
• A-FADA or MIDI Fader automation
• Ethernet MIDI connectivity
• Cross platform ‘Logictivity’ remote browser interface:
• Intuitive cross platform remote browser for system configuration and project management
• Simple drag and drop insert router page for configuring hardware device chains and loading inserts
