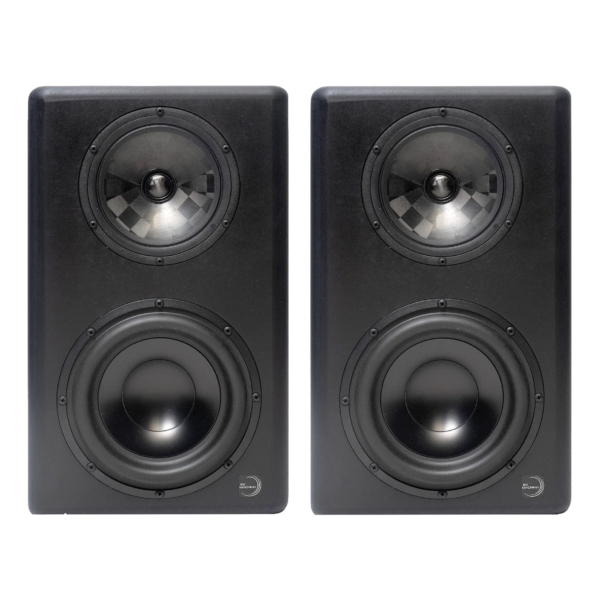

Ex Machina Pulsar MkII (pair)

Price per Set

Have No Doubts – PULSAR MKII

Building on the success of our first-generation model, the Pulsar MKII is the smaller of our two monitors, making it an ideal choice for nearfield and midfield monitoring applications. Whether you’re setting up in a professional studio or a small to medium-sized room, Pulsar delivers outstanding performance as primary monitors.

Featuring custom SEAS drivers with advanced Metamodal TX™ mid-range and tweeter diaphragms, developed in collaboration with Composite Sound, this monitor offers unparalleled clarity. The acoustically inert, sealed Valchromat® cabinets, powered by Hypex Ncore® amps, ensure minimal distortion, while the AKM AK5572EN & AK4493EQ conversion and dedicated 5th generation SHARC® DSP per speaker deliver improved proprietary calibration technology.

With a wide sweet spot, linear phase and magnitude response, and highly detailed transient response, the Pulsar MKII enables faster and more accurate mix decisions, helping you elevate your productions to the next level.

Performance Measurements:

•Linear Frequency Response: ±1db 35Hz – 32kHz

•Low Frequency Cutoff: -6db at 28Hz

•Linear Phase Response: ±15° 20Hz – 30kHz

•Maximum Continuous SPL @ 1m: 110db, 104db @50Hz

•THD+N (94db @ 1m): <0.5% Power Average 100Hz – 30kHz

•Constant Directivity Index: 90° conical (±3db to 18kHz)

Specifications:

Driver Complement:

•176mm (7”) midrange, 25mm (1”) tweeter – Custom SEAS/Ex Machina/Composite Sound Metamodal TX™ mid/high coaxial

•221mm (9”) Custom Aluminum SEAS Extreme Series Architecture Subwoofer

Crossovers:

•200Hz Sub/Mid, digital 8th order, phase corrected

•2kHz Mid/Tweet, digital 8th order, phase corrected

Amplifier Complement:

•Subwoofer: Hypex NC252MP – 250W RMS

•Midrange: Hypex NC252MP – 100W RMS, voltage limited

•Tweeter: Hypex NC100HF – 50W RMS, voltage limited

DSP/Conversion:

•A/D Chipsets: AKM AK5572EN

•D/A Chipsets: AKM AK4493EQ

•DSP: 5th Gen SHARC+ AD21565

Input Sensitivity:

•2vrms to full scale

Mass & Dimensions:

•Dimensions: 483mm H x 289mm W x 345mm D (19″ x 11.3″ x 13.6″)

•Weight: 23kg (51lbs)

•Shipping Dimensions: 609mm H x 406mm W x 508mm D (24 x 16 x 20 inches)

•Shipping Weight: 26kg (58lbs)
