Lauten Audio LA-320 B-Stock

B-Stock

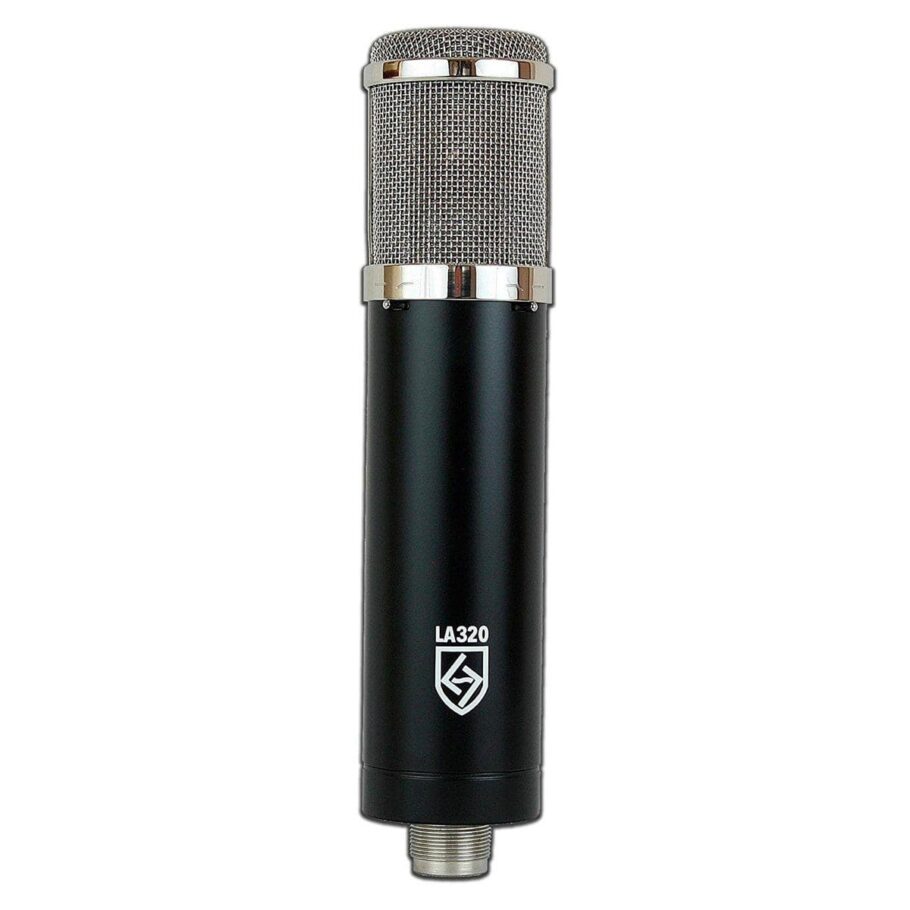

The LA-320 is a twin-tone tube condenser that blends vintage color with modern clarity and balance. This sonically flexible tube design is equipped with two dedicated filters for analog sound-shaping at the source, a USA made JFET for impactful, present sound, and a dual triode vacuum tube with vintage-inspired transformer for harmonic balance and warmth. Ideal for use of female and male vocals as well as stringed instruments and percussion, the LA-320 provides professional quality sonics at an accessible price.

Features

• Professional large diaphragm vacuum tube condenser microphone
• High-cut filter tames bright sources
• Low-cut filter removes unwanted rumble and muddiness
• 1-inch gold sputtered diaphragm
• Cardioid polar pattern
• Dual-triode vacuum tube and 1-inch capsule reminiscent of classic German mics
• Vintage inspired transformer balanced output
• Ideal for a range of instruments and vocals
• High quality components to ensure solid performance

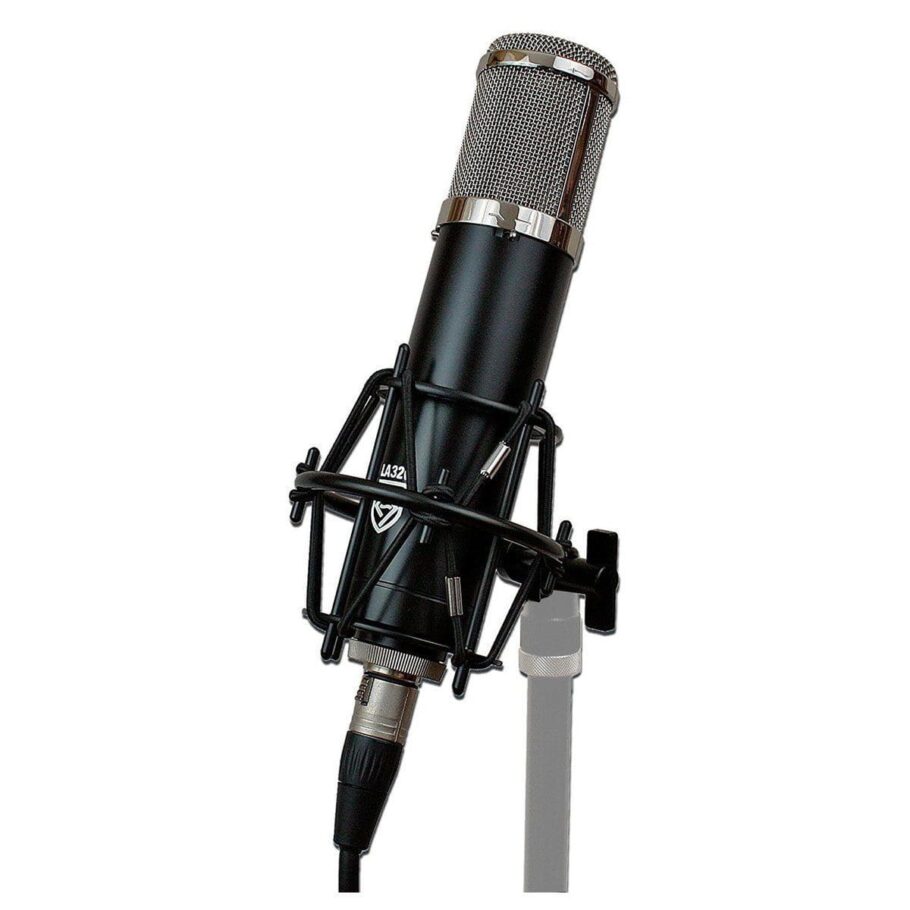

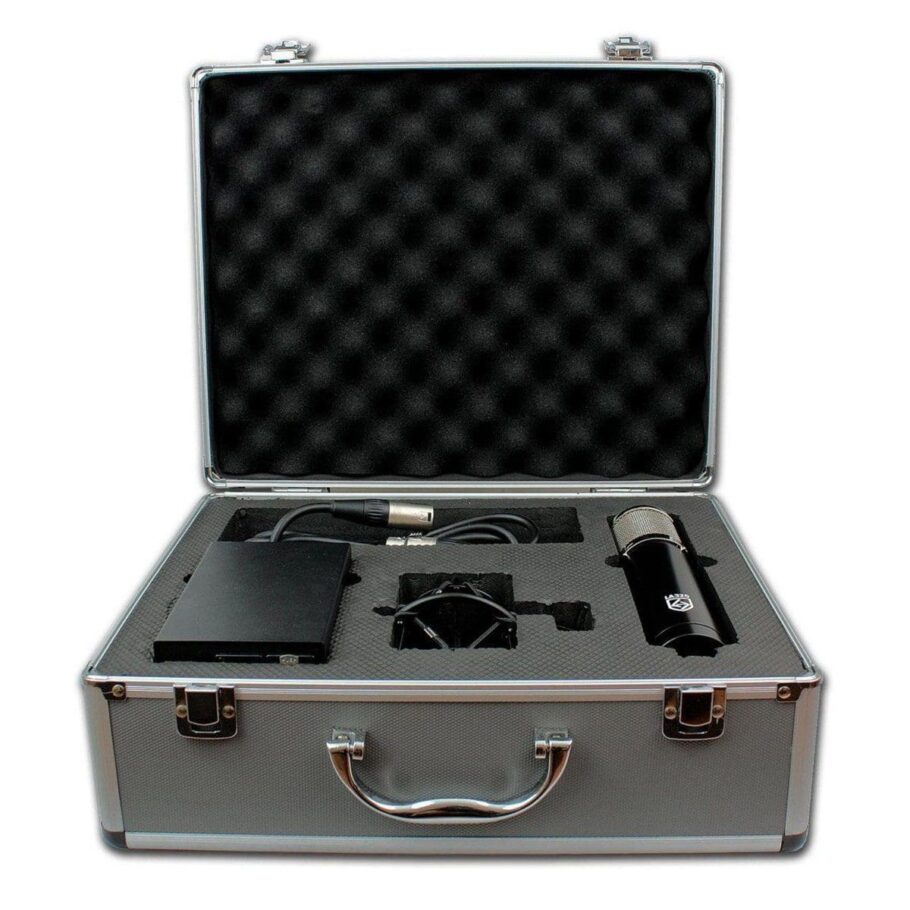

• Includes spider shock mount, 5-pin tube mic cable, and durable hard case
• Includes custom, stable, dedicated power supply with selectable mains voltage

Specifications

• Type: 1-inch dual large diaphragm pressure gradient transducer microphone
• Polar Patterns: Cardioid
• Circuit: Vacuum tube with transformer balanced output
• Frequency Range: 20Hz – 20kHz
• Dynamic Range: 120dB minimum
• Impedance: 200 ohms
• Max SPL: Less than 0.5 percent THD@1000Hz: 130dB
• Self-Noise Level: 17dB-A
• Sensitivity: 14Mv/Pa (@ 1kHz, 74dB SPL)
• Special Features: Selectable, independent 120Hz low-cut & 12kHz high-cut filters
• Connector: 5-pin XLR (PSU to microphone) and 3-pin XLR (PSU to preamp)
• Power Requirement: Custom power supply (switchable 100V to 240V compatible range)
• Product Code: LA-320
