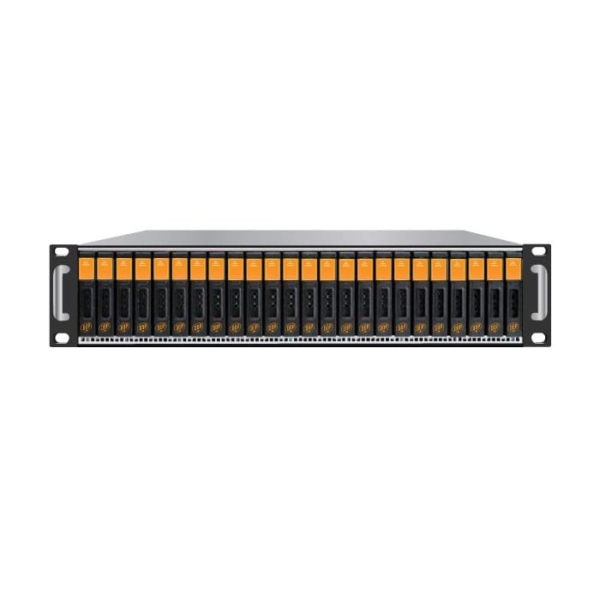

The 2U miniDDP24DF is a shared storage DDP base system for SSDs. Its CPUs are specifically selected for very high performance in bandwidth and IOPs. It is developed for M & E companies where a limited number of seats work with very high quality video and film material in the 2K, 4K and 8K domain. The DDP can be filled with up to 24 SSDs. SSDs can be delivered in packs of 4 and 8. Per SSD8 pack performance increases with 2,3GB/s on reading. When the miniDDP24DF is completely filled with 3 x SSD8 packs the performance is 6,9 GB/s. SSD packs consists of 1, 2 or 4TB SSDs. For data protection the SSD packs are configured with RAID5.
Base Systems can be selected with combinations of spindles, SSD drives and I/O cards – for detailed information see: https://ddpsan.com/products/mini-ddp-24df/
