BAE 1073MPL 500-Series Mic Pre
The BAE 1073MPL is a 500-series microphone preamplifier that delivers the unmistakable sound and character of the classic 1073 design in a compact, modern format. Designed and manufactured by BAE Audio, The 1073MPL faithfully recreates the tone, weight, and musical saturation that have defined countless iconic recordings.

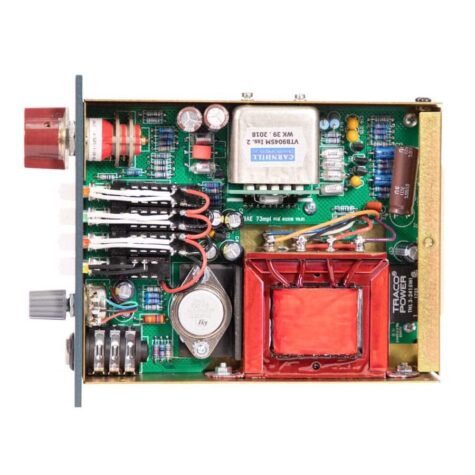

Built around a fully Class A, transformer-balanced signal path, The 1073MPL uses high-quality Carnhill input and output transformers to produce rich harmonics, solid low-end response, and a smooth, authoritative midrange. This makes it an ideal choice for vocals, guitars, drums, bass, and any source where character and depth are desired.

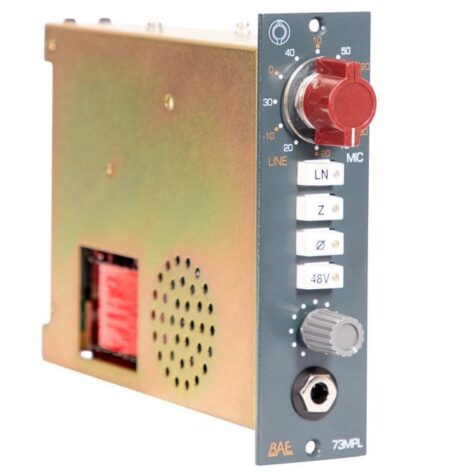

The front panel offers intuitive control with stepped gain, output trim, phantom power, phase reverse, and a front-panel DI input. Whether used subtly for clean gain or driven harder for classic British saturation, the BAE 1073MPL delivers unmistakable analogue colour in a professional 500-series format.
Features
- 500-series microphone preamplifier based on the classic 1073 design
- Fully Class A, transformer-balanced signal path
- Carnhill input and output transformers
- Stepped input gain control
- Output trim for precise level control
- Front-panel DI input for instruments
- Phantom power and phase reverse
- Hand-built construction with premium components
Applications
- Studio vocal recording
- Electric and acoustic guitars
- Bass and DI instruments
- Drums and percussion
- Tracking and colour-focused recording chains
Technical Specifications
- Format: 500-series module
- Topology: Class A, transformer-balanced
- Input Transformer: Carnhill
- Output Transformer: Carnhill
- Gain Range: Up to approx. 70 dB
- Input Impedance: Mic / DI
- Controls: Gain, Output trim, Phase, Phantom power
- DI Input: Front-panel instrument input
- Power: Supplied via 500-series rack
