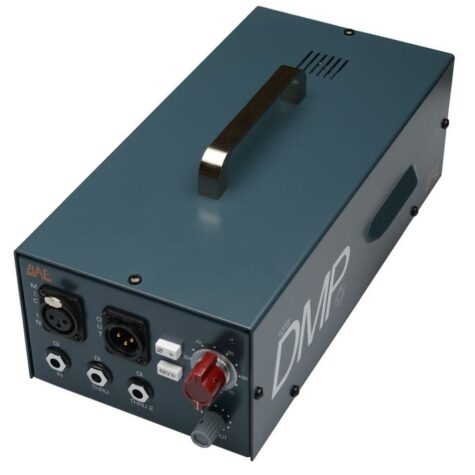

The first portable 1073 Mic Pre
The 1073 DMP is equipped with the same pre-amp and the same Carnhill (St Ives) transformers as the 1073 and 1084.
All units come standard with the ‘Bootsy Collins’ mod, which consists of a Jensen DI transformer to add high impedance DI to the 1073DMP. The 1073 DMP has a built-in PSU and the same hand-wired modular design that BAE is known for. The 1073 is a popular small box which the long line of well-known artists, here are some of them:
Slash, Vance Powell, Chris “Frenchie’ Smith, Timo Kielnecker (G Love), Chris Chaney (Alanis Morrisette Jane’s Addiction), Warren Haynes, Bootsy Collins, Snoop Dogg, Matt Sorum, Huw Williams, Dave Weiner, Derek Trucks, Oteal Burbridge , Jackie Greene, The Chris Robinson Brotherhood, Charles Twilling, Bobby Vega, Rafael Moreira
Specifications
- Built in PSU for extra portability.
- DI in and DI through.
- 48v for phantom power.
- Solid steel chassis.
- Same hand-wired modular design that BAE is known for
Features
- Frequency Response
- 10Hz to -3dB at 55kHz
- Mic Pre Input Impedance
- ≅1200 ohms
- DI Input Impedance
- ≅150k ohms
- Output Impedance
- 65 ohms
- Common Mode Rejection Ratio
- 100dB min @ 60Hz
- Maximum Output Level
- +27.4 dBu @ 600Ω
- Power Requirements
- 115/230 VAC, 28W
- Gain Voltage
- 0 to 33.4 Volts
- Gain dB
- 0 to 71 dB
- Equivalent Input Noise
- -110 dBu; Unweighted 300kHz Bandwidth
- Weight
- 7.3 LBS/3.31 KG
