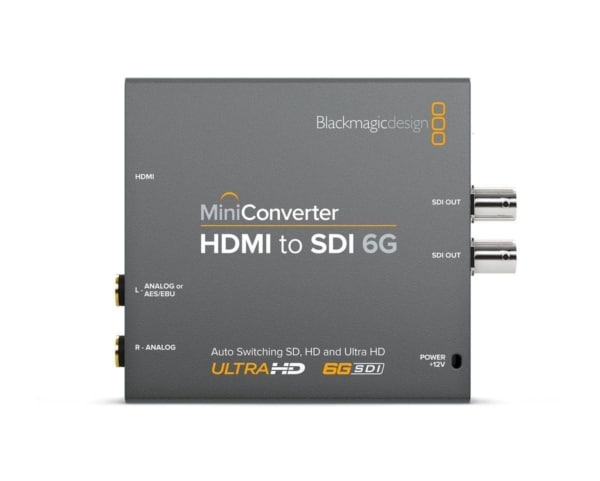

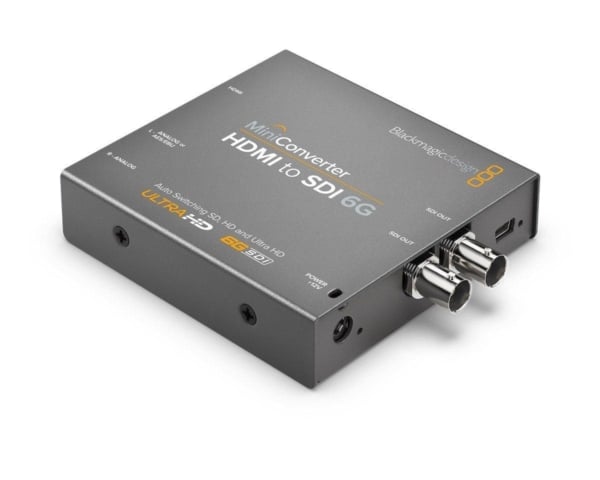

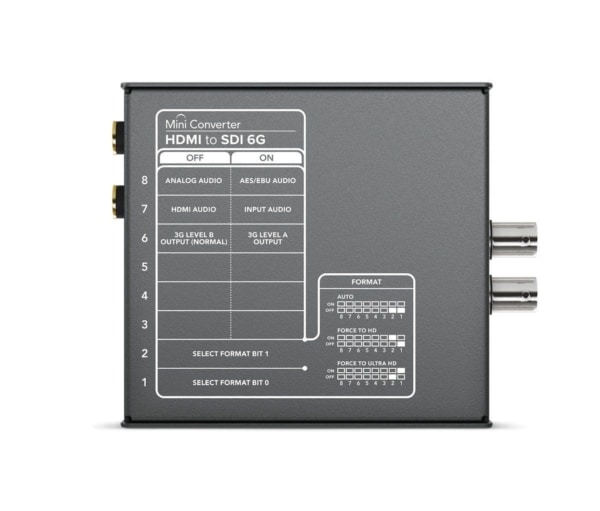

Blackmagic Mini Converter HDMI to SDI 6G – HDMI to Professional 6G-SDI Conversion

The Blackmagic Mini Converter HDMI to SDI 6G allows you to connect HDMI video sources — such as DSLR cameras, computers, or media players — to professional SDI equipment. Supporting resolutions up to Ultra HD 2160p30, this converter is perfect for live production, broadcasting, AV installations, and post-production environments requiring reliable HDMI to SDI signal conversion.

With dual SDI outputs, you can send the converted signal to two destinations simultaneously, making it ideal for multi-display or multi-recorder workflows. The converter supports 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI formats and features automatic input detection, embedded audio support, and a compact, rugged design for professional use.

Key Features:

Converts HDMI signals to SDI for professional workflows
Supports Ultra HD resolutions up to 2160p30
Dual 6G-SDI outputs for simultaneous routing
SDI Level A and B support for 3G-SDI
16-channel embedded audio over SDI
Automatic HDMI format detection
Durable metal housing for studio or field use
Compatible with SD, HD, 3G, and 6G-SDI equipment

Technical Specifications:

HDMI Video Input: 1 x HDMI Type A
SDI Video Outputs: 2 x 6G-SDI (switchable)
Supported Resolutions: 525i59.94, 625i50, 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98 to 60, 2160p24/25/30
HDMI Color Precision: 4:2:2 and 4:4:4 up to 12-bit
Audio: HDMI embedded (up to 8 channels), SDI embedded (up to 16 channels)
Power: 12V DC with included international power supply
Dimensions: 112 x 92 x 25 mm
Weight: Approx. 300 g

Ideal For:

The Blackmagic Mini Converter HDMI to SDI 6G is perfect for integrating consumer HDMI devices into SDI broadcast systems, multi-camera production setups, AV presentations, and Ultra HD live streaming workflows. Its compact form factor and dual SDI outputs make it a flexible, reliable tool for any professional video environment.

Connect your HDMI gear to the world of broadcast with the Blackmagic HDMI to SDI 6G Converter.
