The Most Compact Thunderbolt 5 Hub
The CalDigit Element 5 Hub (E5) is a truly unique device. It features more ports than any other Thunderbolt hub. It does this while also maintaining the exact same compact size as the previous Thunderbolt 4 Element Hub. With a wide selection of powerful ports, it is an ideal solution for expanding workflows, while taking up minimal desk space.
Even though the device is compact, it includes features found in high-end docks, such as 90W of consistent host charging, up to 120Gb/s connectivity, and support for up to 3 displays on supported Windows Thunderbolt 5 PCs.
Connect what you need, when you need.
Interface

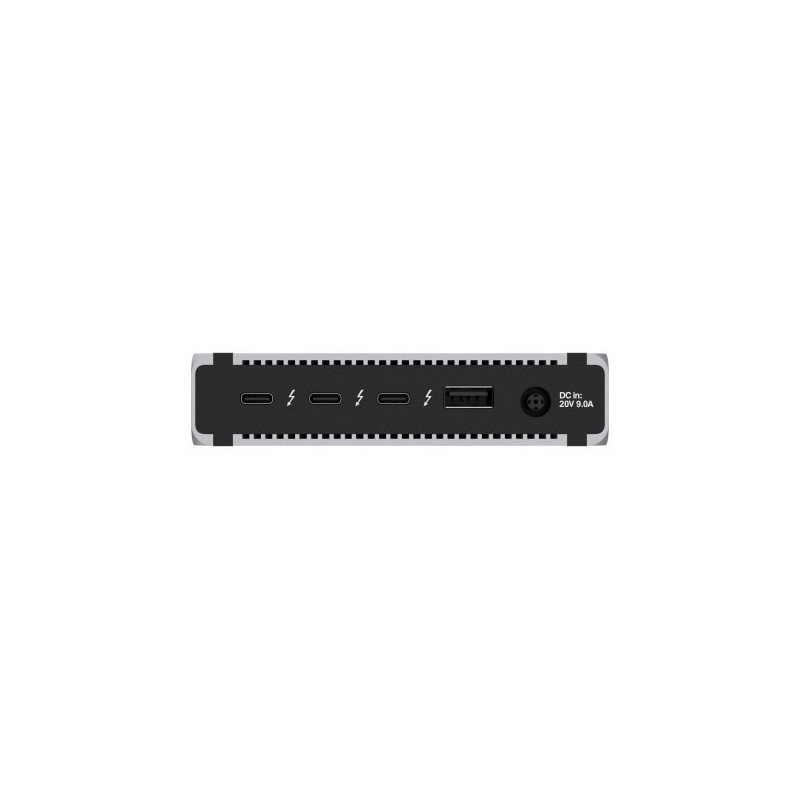

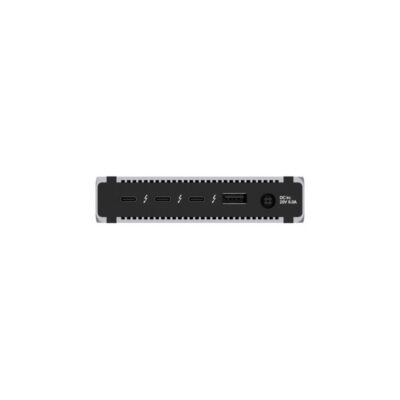

- 1 x Thunderbolt 5 Host (Up to 120Gb/s)
- 3 x Thunderbolt 5 (80Gb/s)

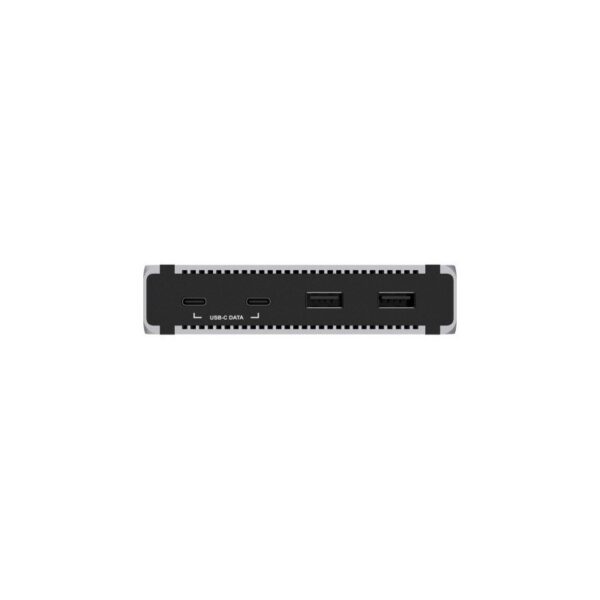

- 3 x USB-A (10Gb/s)
- 2 x USB-C (10Gb/s)
- 1 x DC In (20V | 9A)
Minimum System Requirements
- macOS 15 or above
- Windows 11 or above
- iPadOS
- Chrome OS
- Thunderbolt 5 Computer
- Thunderbolt 4 Computer
- Thunderbolt 3 Mac
- USB-C (USB4 or USB4 v2) Computer
- USB-C Computer/Tablet/Phone
- Thunderbolt/USB4 iPad
- USB-C ChromeBook
Power Delivery

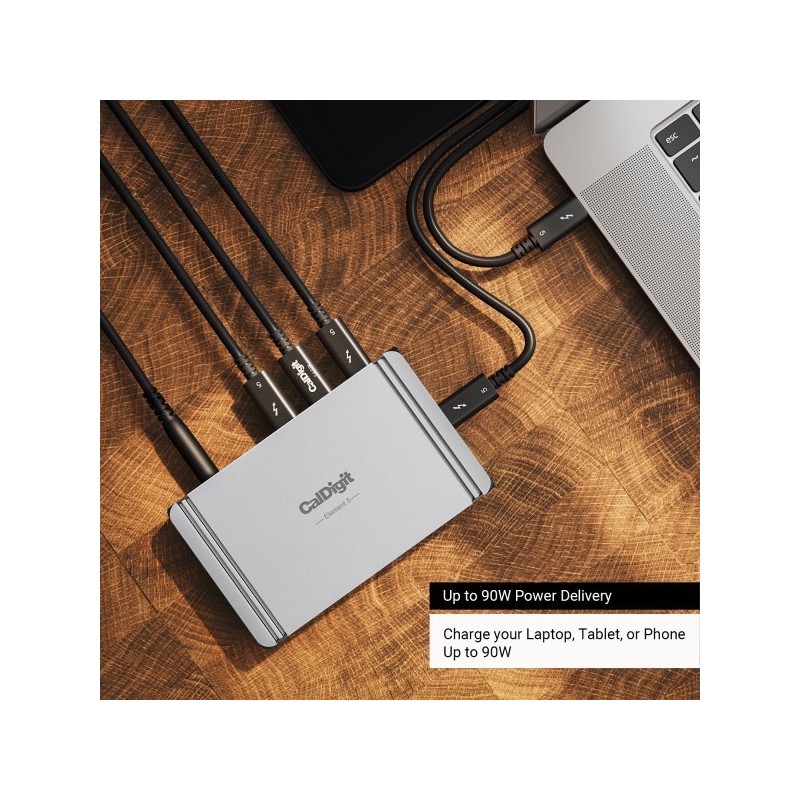

- Up to 90W Host Charging
- Each Downstream Thunderbolt 5 / USB4 v2 Port: 15W (5V/3A)
- Each USB-A Port: 7.5W (5V/1.5A)
- Each USB-C Port: 7.5W (5V/1.5A)
Size & Weight
- Height: 1.0″ (25.5mm)
- Width: 2.75″ (70 mm)
- Length: 4.48″ (114mm)
- Weight: 0.44lbs (0.20kg)

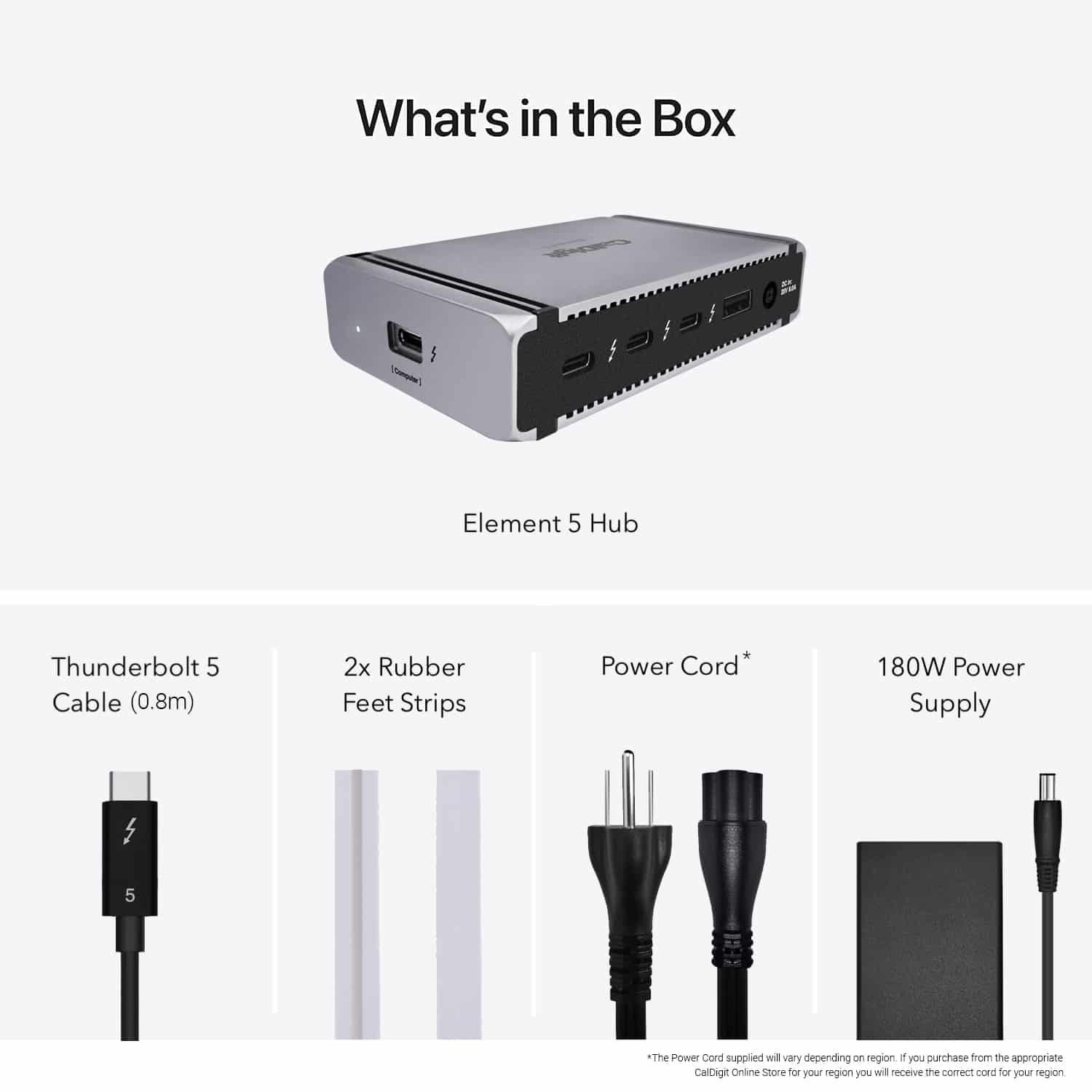

In The Box
- 1 x Element 5 Hub
- 1 x Thunderbolt 5 Cable (0.8m)
- 2 x Rubber Feet Strips
- 1 x Power Supply (180W)
- 1 x Power Cord
Warranty
- 2 Years
Total Compatibility
When you have such a powerful hub you also need the flexibility to use it with any device.
The Element 5 Hub is compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 Macs, USB4, USB4 v2, and USB-C devices.
This also includes USB-C or Thunderbolt iPads, iPhones, Windows tablets and more*.
(*The Element 5 Hub does not support Thunderbolt 3 Windows PCs. Users on Thunderbolt 3, Thunderbolt 4, and USB-C host computers, tablets, or phones will see reduced functionality.)
