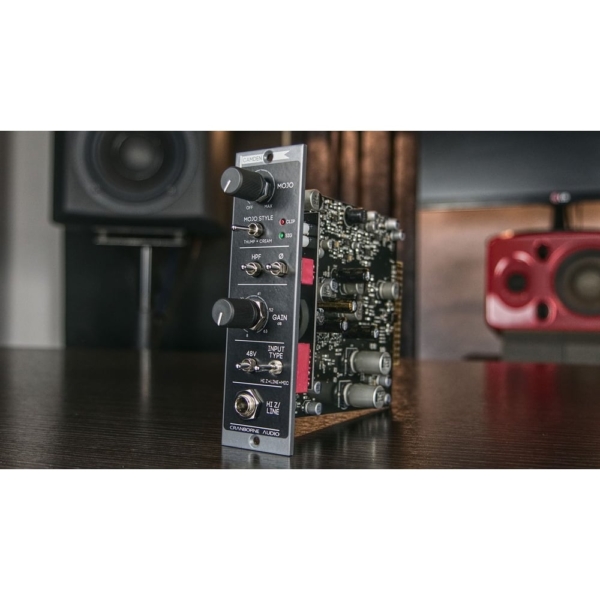

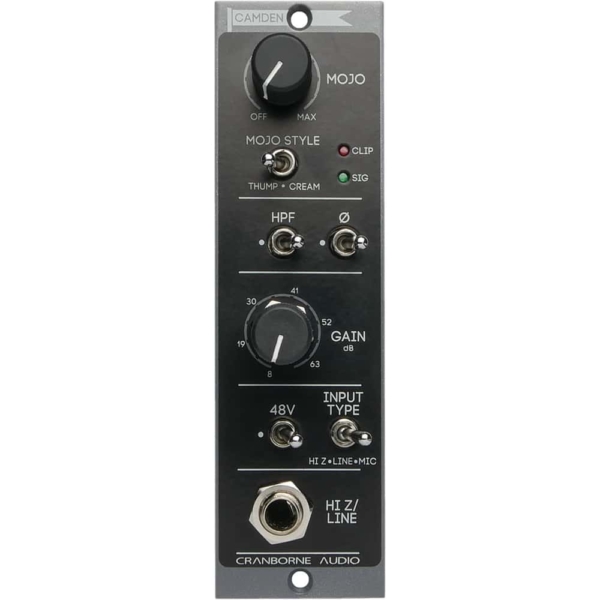

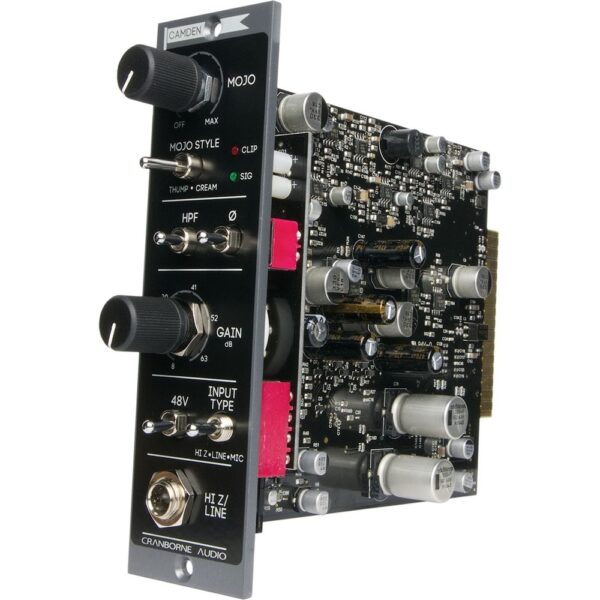

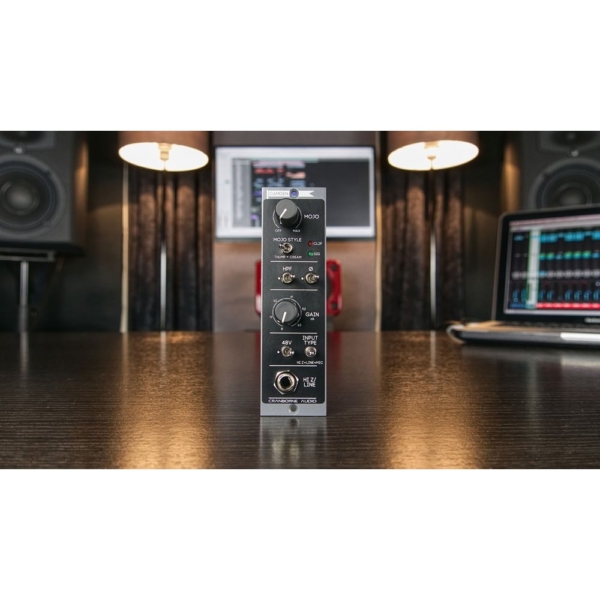

Cranborne Audio CAMDEN500

Astoundingly transparent and detailed 500 series mic, line, and hi-z preamp with mojo – two analogue saturation styles that emulate vintage valve and transformer effects. Put simply, the Camden 500 is the most astonishingly clean, linear, and transparent preamp you’ve ever heard. Camden 500 was designed from the ground-up to be the ultimate front-end for the modern studio and engineer and to withstand the rigors of modern workflow and production techniques. It features a completely original, custom-designed ‘Camden’ preamp topology that achieves stunning low-noise and low-distortion performance as well as frequency and phase linearity at all gain settings. The sum result is -129.5dB EIN (150ohm, unweighted), THD+N as low as 0.0002%, frequency response of ±0.7dB from 5Hz to 200kHz at max gain and< 2° phase shift @ 20Hz – 20kHz. For moments when that extra bit of ‘British’ character is required, rather than use a transformer and learn to live with its drawbacks, Cranborne Audio developed Mojo – two discrete analogue saturation styles that transform Camden 500 into the fattest, warmest, and most characterful preamp in your arsenal – all at the turn of a dial. Perhaps best of all, unlike transformer and other legacy designs, Mojo can be subtle, it can also be exaggerated, but it can also be bypassed.

Clean, Precise, and Natural – at all gain positions

While preamp specifications often quote fantastic figures at specific gain values, when the gain is increased, those figures often change radically. Camden 500 was designed to retain all of its impressive performance specifications at all gain positions from 8dB to 68dB. This means that even when the preamp is running at maximum gain, the Phase and Frequency response remains linear and THD always remains inaudible – enabling all gain positions to be usable for any source and mic combination.

Vintage, Warm, and Colored – thanks to Mojo

Camden 500 features mojo – a new type of saturation circuit that consists of an array of filters and discrete second/third order harmonic generators that allow precise emulation of the saturation and low-end reinforcement behaviors of vintage transformer and valve-based equipment. The key to Mojo is that it can be dialed in to taste; use subtle amounts for gentle saturation, or dial it in to well beyond the point that destructive clipping would usually occur with transformer-based. Perhaps the very best part of Mojo is that it can be bypassed to reveal the pristine base sound of the Camden 500.

Thump

Thump is a style that works best on – but is not limited to – low-frequency based instruments. Thump excites low-end content by boosting harmonics in the range of ~100Hz to 20Hz and below without increasing the fundamental frequencies – resulting in fuller low-end on all reproduction mediums. As Thump is not EQ-based, the additional harmonic content is shaped by the source and it’s existing low-end frequency content resulting in a natural addition of extra “Thump”. Similar-sounding EQ moves will result in extreme wooliness as all sonic energy is boosted – even unwanted audio in-between the hits.

Cream

Cream introduces a vintage smoothness that enables tracks to sit deep within a complex mix in a way that cannot be replicated with EQ. The Cream setting drastically increases THD whilst smoothing out the low-mids. As with Thump, Cream is not EQ based and is purely achieved by blending 2 saturation stages with the dry signal and additional harmonics. Cream varies entirely on the harmonic signature of the incoming source. It will increase high-end forwardness and create unique harmonic-based tonal shaping effects on mid-range instruments, but it will also add low-end on full range sources as well as unique “compression-style” effect on transients.

Key Features

– Fully-discrete, transformerless design featuring our custom ‘Camden’ preamp topology designed by our Director of Engineering – Edward Holmes. – Optimized for and fully compliant with the 500-series format. – Camden 500 is not a 19″ unit shoe-horned into a 500-series module, it has been designed from the ground-up to perform under the low-voltage power rails and supply current limitations of the 500-series format whilst delivering groundbreaking performance. Performs at the near-theoretical limits of noise, distortion, and phase/frequency linearity at all gain settings.< -129.5dBu, 150 ohm source, unweighted,< -135.5dBu, Inputs common, unweighted – THD+N:< 0.0004%, 1kHz, 35dB gain, 24dBu out – Intermodulation Distortion:< 0.0008%, 50Hz and 7kHz, 35dB gain, 20dBu out – Phase Shift:< 2.25°, 40dB gain, 20Hz to 20kHz,< 4°, Max gain, 20Hz to 20kHz – req. Response:< ±1dB,< 5 Hz two> 200 kHz, all gain settings – CMRR:> 70dB, typ> 85dB, 35dB Gain, 10-20kHz, 100mV Common mode Optimized input Impedance and input headroom for Mic, Line, and Hi-z sources. Mic Preamp, Instrument Di, and – thanks to Mojo – line-level analogue saturator. Reamp tracks from your DAW through Mojo to apply analogue saturation to your stems, VST, and stereo mixes. Custom ‘Mojo’ analogue saturation circuit with variable control, true bypass, and 2 discrete styles – Thump and Cream. – Thump excites low-end content by boosting lower odd/even harmonics from a range of 160Hz to 20Hz and below. – Cream boosts odd/even harmonics whilst also reducing the amplitude of the fundamental frequencies and applying typical transformer-style transient taming. Gold Flashing on backplane contacts for increased conductivity and durability. Designed, engineered and manufactured in the United Kingdom
