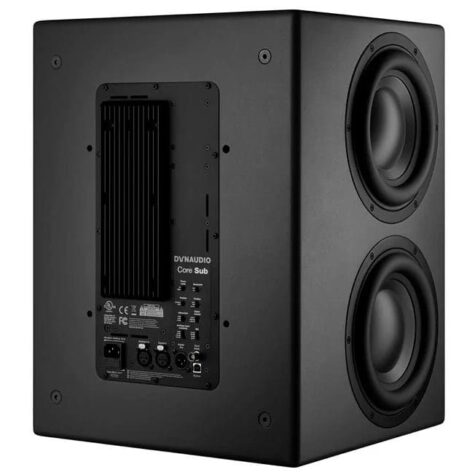

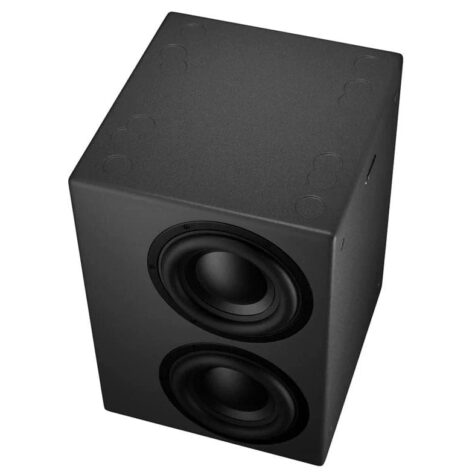

Dynaudio Core Sub

Core Sub uses the same DSP engine found in all the Core speakers, which means you can customize its response based on where it’s placed in the room. Its analogue and AES digital inputs let you calibrate it to work in any configuration from single-channel extension through 2.1-channel bass management and on to a theatrical LFE channel with the headroom to really nail it.

• Analog inputs: 1x balanced XLR
• Digital inputs: 1x AES3 XLR (no sample rate conversion), BNC Word Clock
• Digital outputs: 1x AES XLR pass-through
• Amplifier Power: (Watts) 2x 500W
• AC Power Input 100-120 V/200-240 V 50/60 Hz
• Auto on/off: Yes
• Max Stand-by Power Consumption (Watt): 0.5
• Lower Cutoff (Hz @85 dB +/- 3 dB): 15
• Upper Cutoff (Hz @ 85dB +/- 3 dB): 165
• Lower Cutoff Dynamic (Hz @ -6 dB): 13.5
• Upper Cutoff Dynamic (Hz @ -6 dB): 200
• MAX SPL (dB): 120
• Box Principle: Sealed
• Woofer: 4x 9in MSP Hybrid Drive
• Weight kg: 48
• Weight lbs: 105 7/8
• Width mm: 390
• Height mm: 365
• Depth mm: 514
• Width inches: 15 3/8
• Height inches: 14 3/8
• Depth inches: 20 2/8
