Electron Syntax

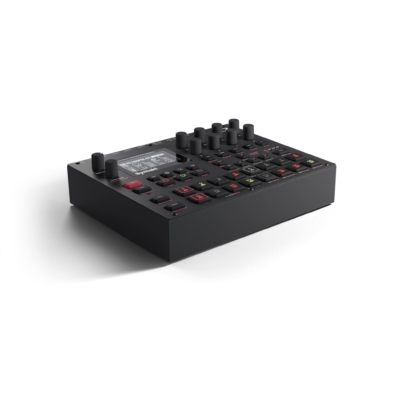

is a 12-track drum machine and a synthesizer – a sonic machine that fuses analog and digital synthesis into an instrument with unimaginable possibilities. All sound design, sequencing and processing needs are fulfilled in this all-round mega-box, which can also lie in your lap. Syntakt is a beat specialist, full of percussive possibilities, with the 12 tracks can be used for melody, harmonies and bass. Syntakt, like all the other Elektron products, is very intuitive and graphical – which makes it a breeze to route your tracks, run external inputs through delay, reverb, analogue distortion and filters. There are even a few LFOs to play with. There is also a world class 64 steps sequencer.
The possibilities are never-ending
Syntax Specifications:
Digital track features (×8) 10 × selectable machine 1 × Bass drum 2 × Snare drum 1 × Cymbal/hihat 1 × Percussion 1 × Clap 4 × Tonal synth 1 × digital overdrive per track 1 × digital multimode filter per track 1 × digital base-width filter per track 2 × assignable LFOs per track Switchable to MIDI machine
Analog Drum track features (×3)
15 × selectable machine 6 × Bass drum
4 × Snare drum 2 × Rimshot 1 × Dual VCO synth 1 × Impulse 1 × Noise generator
1 × analog overdrive per track 1 × analog multimode filter per track 2 × assignable LFOs per track Switchable to MIDI machine Analog Cymbal track features (×1) 12 × selectable machine 5 × Hihat
3 × Cymbal 2 × Cowbell 1 × Impulse 1 × Noise Generator
1 × analog overdrive per track 1 × analog multimode filter per track 2 × assignable LFOs per track Switchable to MIDI Machine Performance features
1 × Retrig modifier 1 × Velocity modifier 2 × Assignable trig modifiers Keyboard mode with 36 different scales MIDI Machine features
4 note polyphony per step 8 × assignable CC controls 1 × assignable LFOs per track Sequencer features
64 steps per pattern and track Individual pattern length per track Individual time scale multiplier per track Parameter locks Trig conditions & trig chance Retrig Micro timing Send effects
Delay Reverb Hardware

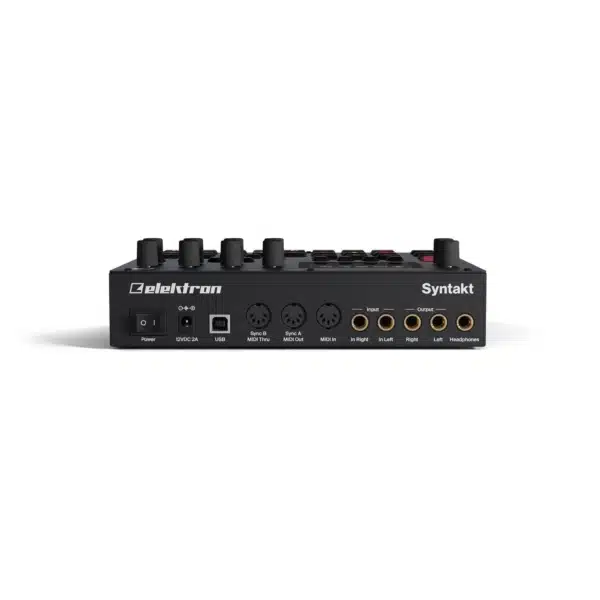

128 × 64 pixel OLED screen 2 × 1⁄4” impedance balanced audio out jacks 2 × 1⁄4” audio in jacks 1 × 1⁄4” stereo headphone jack 48 kHz, 24-bit D/A and A/D converters Hi -Speed USB 2.0 port MIDI In/Out/Thru with DIN Sync out
Physical specifications Sturdy steel casing Dimensions: W 215 × D 176 × H 63 mm Weight: approximately 1.53 kg (3.6 lbs) 100 × 100 mm VESA mounting holes. M4.
Miscellaneous Overbridge enabled Class Compliant USB Audio External Input mixer 3 year Elektron warranty
Included in the box Power Supply PSU-3c Elektron USB cable Quick Guide Exclusive artwork & epic stickers
