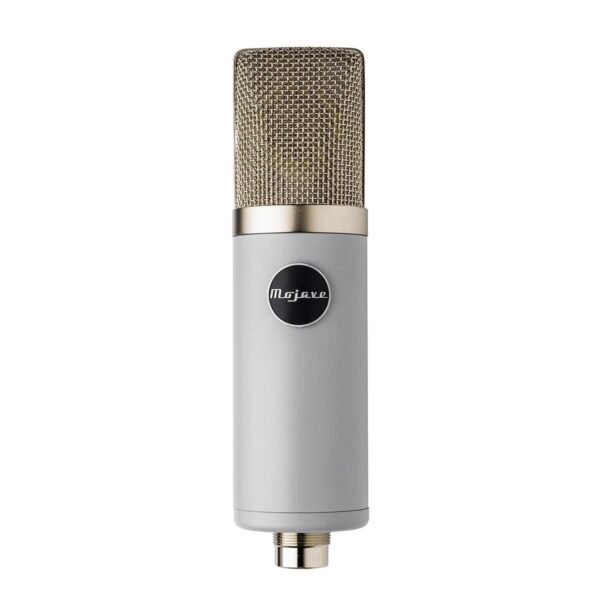

Mojave MA-201fet - Large Diaphragm Phantom-Powered Condenser Microphone
The Mojave MA-201fet is a premium large diaphragm, phantom-powered condenser microphone designed for capturing the true essence of vocals, instruments, and high-SPL sources. Featuring a fixed cardioid pattern, the MA-201fet delivers warm, full-bodied sound reproduction with exceptional clarity, avoiding the shrillness and distortion often associated with modern condenser microphones.
Born from a lineage of designs by David Royer, the MA-201fet utilises a hand-selected 3-micron gold-sputtered capsule, a high-quality Jensen audio transformer, military-grade FET, and custom-designed low-noise resistors. This combination ensures ultra-clean signal paths and performance that rivals some of the best classic condenser microphones. Ideal for vocals, acoustic instruments, high SPL sources, and more, the MA-201fet is versatile enough to handle any recording scenario with ease.
Key Features:
- Hand-selected 3-micron 1″ capsule: Ensures exceptional sound quality and accurate reproduction.
- Jensen audio transformer: Delivers clear, balanced sound with minimal distortion.
- Military-grade FET: Provides exceptional performance and reliability.
- Custom designed low-noise resistors: For a clean, transparent signal path.
- Ultra clean signal path: Captures pristine audio with minimal noise.
- Fixed cardioid pattern: Ideal for focused recording and rejection of unwanted off-axis noise.

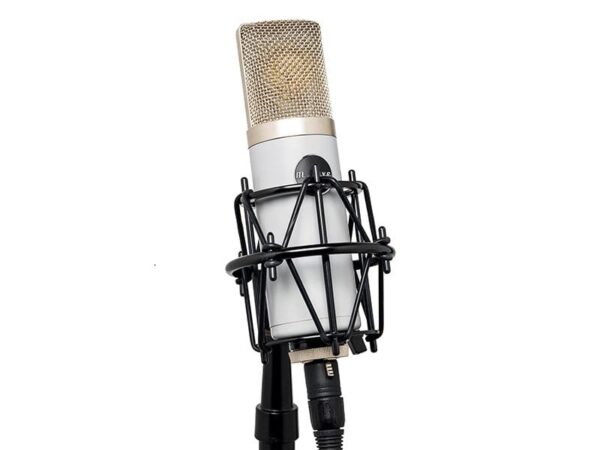

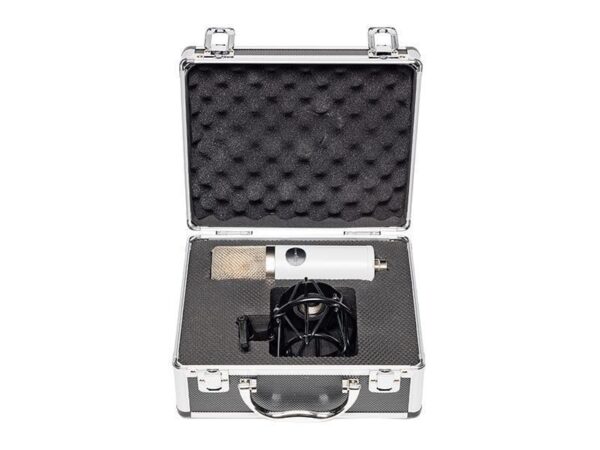

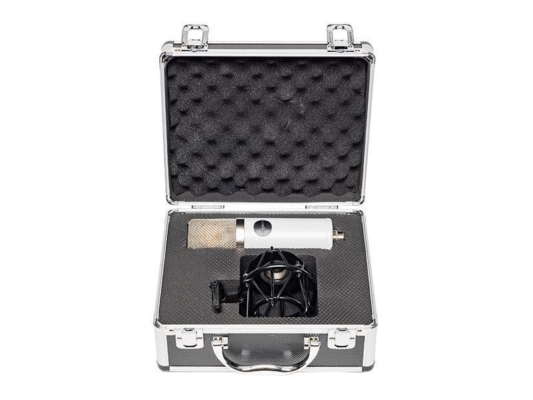

- Professional-grade shockmount and protective case included: Ensures safe handling and optimal placement.
Recommended Applications:
- Vocals
- Voice over and broadcast applications
- High SPL sources, such as kick drums and bass guitar amps
- Electric guitar
- Piano
- Drum overheads and drum rooms
- Acoustic instruments
Technical Specifications:
- Transducer Type: Externally polarised pressure gradient capacitor
- Diaphragm: 1-inch diameter, gold sputtered
- Diaphragm Thickness: 3-micron
- Polar Pattern: Cardioid
- Frequency Response: 20 Hz – 20kHz, +/- 3dB
- Sensitivity: -39 dB re. 1V/pa
- Maximum SPL: 125 dB
- Distortion: < 1% @ 120dB SPL, < 3% @ 134dB SPL
- Self Noise: 14dB nominal, not to exceed 16dB (A-weighted)
- Impedance: 550 ohms, transformer balanced (Jensen)
- Powering: 48VDC phantom power; current .68mA
- Dimensions and Weight:
- Carrying Case with Microphone, Shock Mount: 10″ x 9″ x 4.5″, 4 lbs
- Microphone: 7 5/8″ x 2″, 1 lb
The Mojave MA-201fet is a true studio workhorse, delivering unparalleled sound quality and versatility. Whether you’re recording vocals, acoustic instruments, or handling high SPL sources like drums and guitar amps, this microphone excels in any environment. With its exceptional tonal balance and premium components, the MA-201fet is an essential addition to any professional recording setup.
