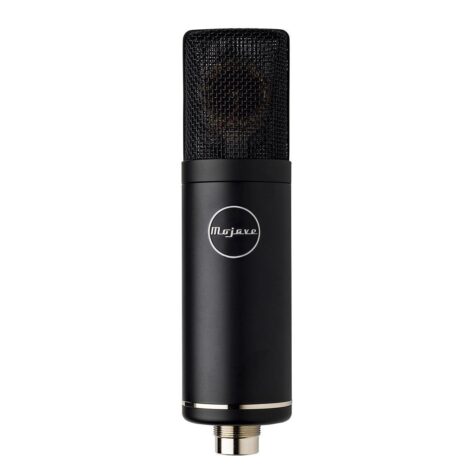

Mojave MA-50BK – Large Diaphragm Transformerless Solid State Condenser Microphone
The Mojave MA-50BK is a large diaphragm transformerless solid-state condenser microphone designed to deliver the clarity and realism Mojave microphones are known for – at an entry-level price. Designed by Grammy® award-winning microphone designer David Royer, the MA-50BK rises to the challenge of offering high-performance audio capture without the distortion typically associated with transformerless designs. Ideal for professionals and semi-professionals, the MA-50BK outperforms other transformerless mics that cost many times more.
Utilizing the same 3-micron gold-sputtered capsule as the MA-200 and MA-201fet, the MA-50BK handles the fastest transients with ease, making it ideal for everything from vocals to percussion instruments. With its fixed cardioid polar pattern and transformerless circuitry, the MA-50BK provides very low noise and high SPL handling, allowing you to capture every detail of your sound source without distortion. Perfect for home studios, professional environments, and even high SPL sources, this mic will elevate your recordings to the next level.
Key Features:
- Large-diaphragm cardioid 3-micron capsule: Captures accurate and clear sound with minimal distortion.
- Transformerless circuitry: Provides clean, transparent sound with no added coloration.
- Very low noise: Captures quiet sources and nuances with exceptional detail.
- High SPL handling: Handles up to 140 dB SPL, perfect for loud sound sources like drums and guitar amps.
- Fast transient response: Ideal for capturing fast-paced sound sources such as drums, percussion, and vocals.
- Professional shock mount included: Reduces handling noise and ensures optimal mic placement.
- Simple and elegant design: Aesthetically pleasing and perfect for home recording setups.
Recommended Applications:
- Vocals
- Voice-over
- Acoustic Instruments
- Drum Overheads
- Percussion Instruments
- Foley/ADR
Technical Specifications:
- Transducer Type: Externally polarized pressure gradient capacitor
- Diaphragm: 1-inch diameter, gold sputtered
- Diaphragm Thickness: 3-microns
- Polar Pattern: Cardioid
- Frequency Response: 20 Hz – 20 kHz, +/- 3 dB
- Sensitivity: -40 dB re. 1V/Pa
- Maximum SPL: 125 dB
- Distortion: < 0.5% @ 140 dB SPL
- Self Noise: Better than 16 dB (A weighted)
- Impedance: < 100 ohms
- Recommended Load: 1500 ohms or higher
- Powering: 48VDC phantom power; current 2 mA
- Dimensions and Weight:

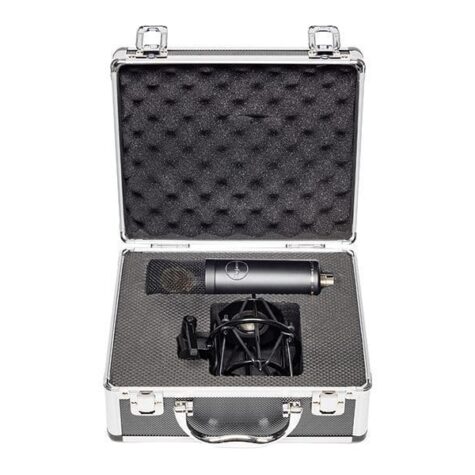

- Carrying case with microphone and shock mount: 10” x 9” x 4.5”, 4 lbs
- Microphone: 7 5/8” x 2” (194mm x 51mm), 1 lb. (0.45kg)
The Mojave MA-50BK is the perfect entry-level microphone for professionals and semi-professionals alike. With its clear, accurate sound, high SPL handling, and versatile applications, the MA-50BK is an exceptional choice for recording vocals, instruments, and more. Whether you’re setting up your first home studio or adding to your professional recording gear, this microphone offers unparalleled value and performance.
