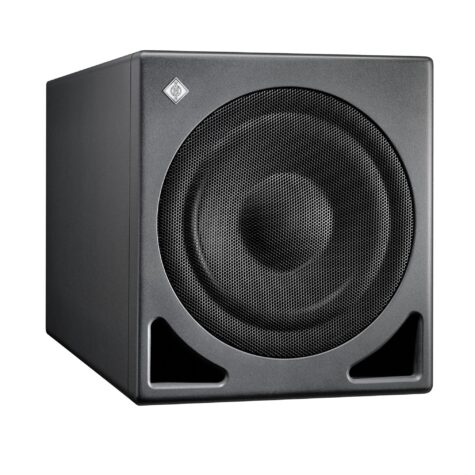

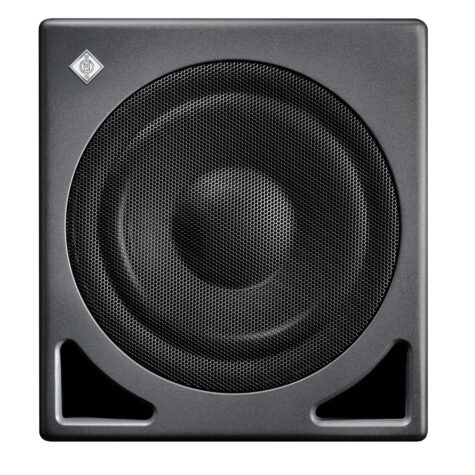

Neumann KH 805 II

The Neumann KH 805 II is a powerful professional studio subwoofer designed to extend the low-frequency performance of Neumann's KH monitor range As the successor to the acclaimed KH 805, the KH 805 II delivers even greater precision, flexibility, and integration options - making it an ideal choice for critical monitoring, mixing, mastering, and immersive audio setups

Equipped with an 8″ long-excursion driver powered by a 200 W amplifier, the KH 805 II reproduces bass frequencies with exceptional accuracy and definition down to 18 Hz The built-in DSP engine provides advanced crossover management, delay, and room correction features, and it integrates seamlessly with Neumann's MA 1 Automatic Monitor Alignment system Whether used in stereo or multi-channel configurations, the KH 805 II ensures a perfectly balanced and controlled low-end response

Features

Professional DSP-controlled subwoofer for Neumann KH monitors
8” long-throw driver with 200 W amplifier for precise low-frequency reproduction
Extends bass response down to 18 Hz
Integrated DSP for crossover, EQ, delay, and calibration
Fully compatible with Neumann MA 1 Automatic Monitor Alignment system

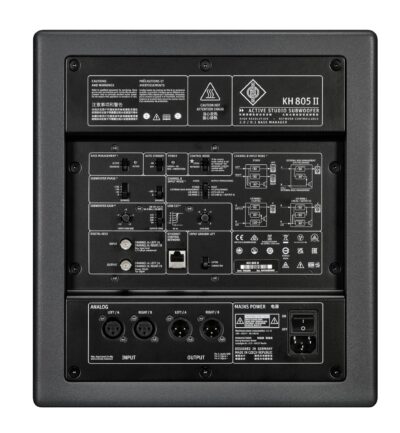

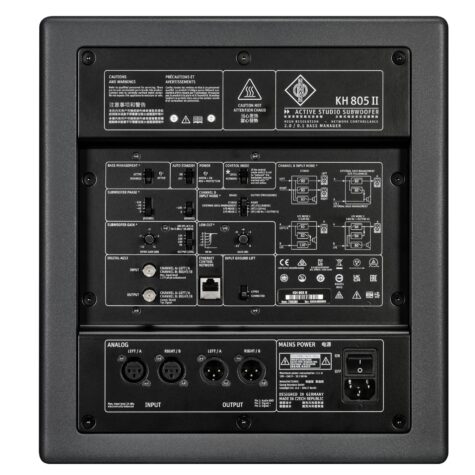

Flexible analogue and digital connectivity options
Selectable LFE and low-pass modes for different monitoring setups
Compact cabinet design optimised for professional studio integration
Made in Germany to Neumann's renowned quality standards

Applications

Professional recording, mixing, and mastering studios
Broadcast and post-production environments
Immersive and surround sound systems
High-end project and home studio monitoring

Included

Neumann KH 805 II active subwoofer
Power cable
Documentation and quick start guide

Technical Specifications

Type: DSP-controlled active subwoofer
Driver: 8” long-throw bass driver
Amplifier Power: 200 W
Frequency Response: 18 Hz - 300 Hz (±3 dB)
Maximum SPL: 111 dB at 1 m
Inputs: XLR analogue, digital AES3
Outputs: XLR link outputs with adjustable crossover
DSP Features: EQ, crossover management, delay, and MA 1 calibration
Cabinet Type: Front-firing bass reflex
Dimensions (H × W × D): 383 × 330 × 383 mm
Weight: 145 kg
Finish: Anthracite grey
