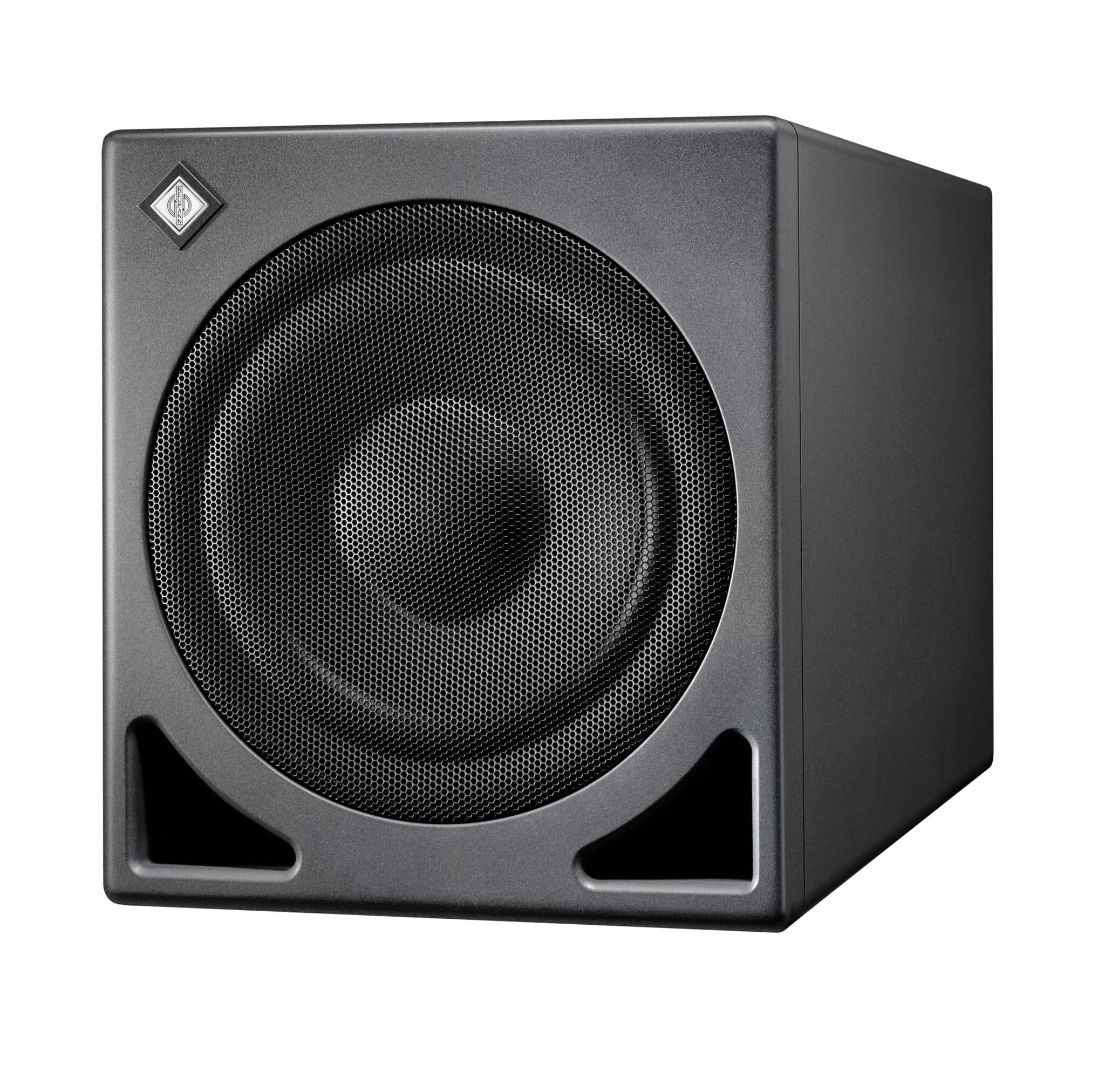

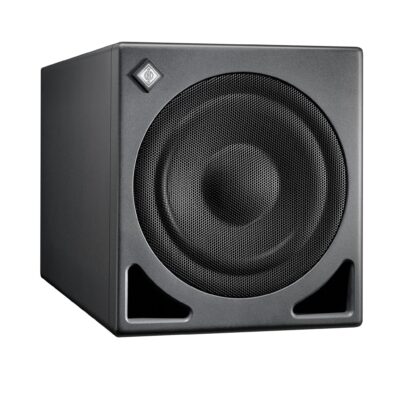

Neumann KH 810 II
The Neumann KH 810 II is a high-performance DSP-controlled subwoofer designed to deliver precise and powerful low-frequency reproduction in professional studio environments As the next generation of Neumann’s acclaimed KH 810, this model offers extended bass response, advanced DSP integration, and full compatibility with Neumann’s MA 1 Automatic Monitor Alignment system Perfect for stereo, surround, and immersive monitoring setups, the KH 810 II ensures a seamless and accurate extension of your KH monitor system
Equipped with a 10″ long-excursion driver and a 260 W amplifier, the KH 810 II provides exceptional clarity and control in the low end, reaching frequencies as low as 18 Hz Its integrated DSP engine enables precise crossover management, delay alignment, and room correction, while flexible connectivity options — including analog and digital inputs — make it easy to integrate into modern production systems Built to Neumann’s uncompromising standards, the KH 810 II combines precision engineering with unmatched sonic performance
Features
- Professional DSP-controlled active subwoofer for Neumann KH monitor systems
- 10” long-throw driver with 260 W amplifier for accurate low-end reproduction
- Extends frequency response down to 18 Hz
- Integrated DSP for crossover, delay, EQ, and room alignment
- Fully compatible with Neumann MA 1 Automatic Monitor Alignment system
- Flexible analog and digital (AES3) inputs and outputs
- Selectable low-pass and LFE modes for different monitoring setups
- Compact, acoustically optimized cabinet with front-firing design
- Made in Germany to Neumann’s world-class quality standards
Applications
- Professional recording, mixing, and mastering studios
- Broadcast and post-production facilities
- Immersive and surround sound systems (Dolby Atmos, Auro-3D, etc)
- High-end project studios requiring accurate low-frequency extension
Included
- Neumann KH 810 II active subwoofer
- Power cable
- Documentation and quick start guide
Technical Specifications
- Type: DSP-controlled active subwoofer
- Driver: 10” long-excursion woofer
- Amplifier Power: 260 W
- Frequency Response: 18 Hz – 300 Hz (±3 dB)
- Maximum SPL: 114 dB (at 1 m)

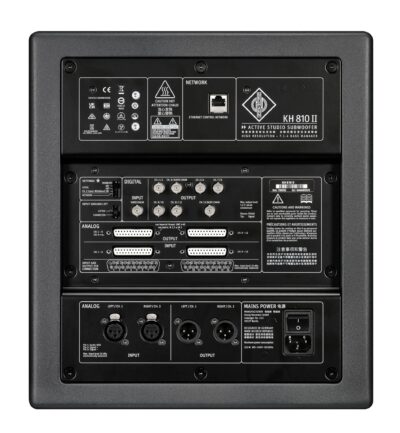

- Inputs: XLR analog, AES3 digital
- Outputs: XLR link outputs with selectable crossover
- DSP Features: EQ, crossover, delay, and MA 1 alignment compatibility
- Cabinet Type: Front-firing bass reflex
- Dimensions (H × W × D): 450 × 400 × 460 mm
- Weight: 225 kg
- Finish: Anthracite gray
