Neumann KH 810 II AES67

Neumann KH 810 II AES67

The Neumann KH 810 II AES67 is a state-of-the-art DSP-controlled subwoofer that delivers powerful, precise, and network-ready low-frequency reproduction for professional studio environments. Designed for use in both stereo and multi-channel systems, it combines the sonic excellence of Neumann’s KH series with advanced AES67 audio-over-IP connectivity — fully compatible with Dante® and Ravenna® networks. Built to meet the demands of modern broadcast and immersive production workflows, the KH 810 II AES67 provides seamless integration, superior control, and unmatched accuracy down to 18 Hz.

Featuring a 10” long-excursion driver powered by a 260 W amplifier, the KH 810 II AES67 delivers deep, controlled bass with exceptional definition and transient response. Its integrated DSP engine enables precise crossover control, EQ, delay, and room correction, and it works perfectly with Neumann’s MA 1 Automatic Monitor Alignment system for easy, accurate calibration. The subwoofer’s AES67 compatibility ensures flexible and future-proof operation within networked production environments.

Features

• Professional DSP-controlled active subwoofer with AES67 network audio

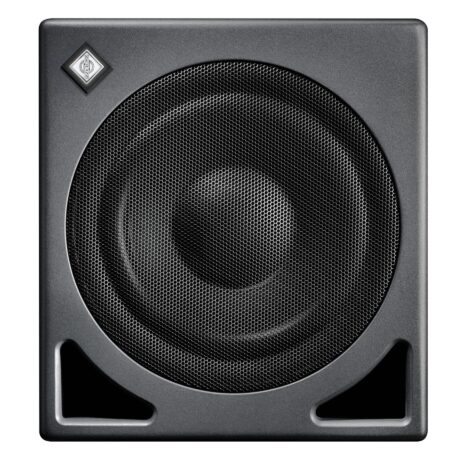

• 10” long-throw driver for accurate and extended low-frequency performance
• Frequency response from 18 Hz to 300 Hz (±3 dB)
• Integrated AES67 connectivity compatible with Dante® and Ravenna®
• Powerful 260 W amplifier for precise and dynamic output
• Built-in DSP for EQ, crossover, delay, and room calibration
• Fully compatible with Neumann MA 1 Automatic Monitor Alignment system

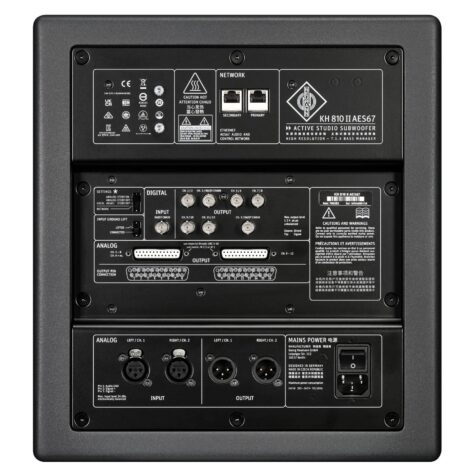

• Analog and digital (AES3) inputs plus network input (RJ45)

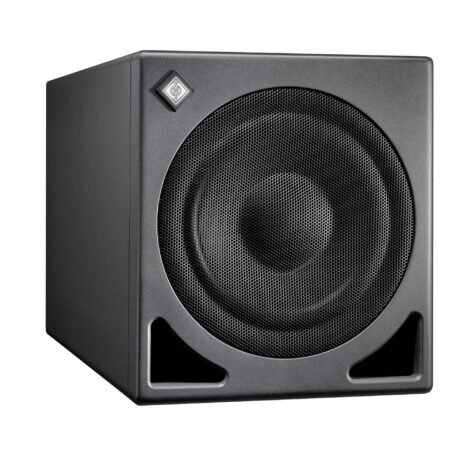

• Front-firing bass reflex cabinet for accurate and tight low-end response
• Made in Germany with Neumann’s signature precision and reliability

Applications

• Professional recording, mixing, and mastering studios
• Broadcast and network-based audio facilities
• Immersive and surround sound systems (Dolby Atmos, Auro-3D, etc.)
• Post-production and high-end monitoring environments

Included

• Neumann KH 810 II AES67 subwoofer
• Power cable
• Documentation and quick start guide

Technical Specifications

• Type: DSP-controlled active subwoofer with AES67 network interface
• Driver: 10” long-excursion woofer
• Amplifier Power: 260 W
• Frequency Response: 18 Hz – 300 Hz (±3 dB)
• Maximum SPL: 114 dB (at 1 m)
• Inputs: XLR analog, AES3 digital, AES67 network (RJ45)
