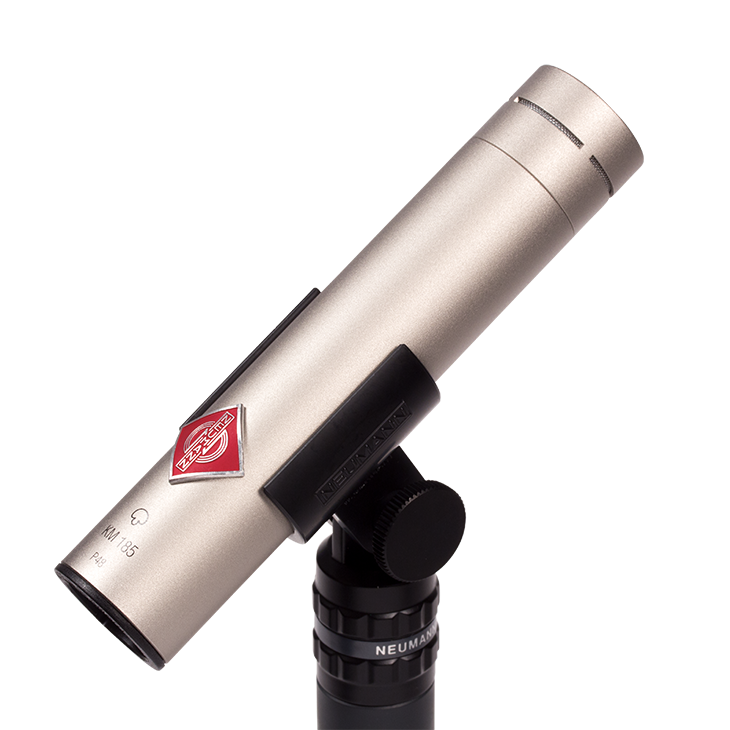

Neumann KM 185
The Neumann KM 185 is a high-quality small-diaphragm condenser microphone featuring a hypercardioid polar pattern for precise sound capture and excellent off-axis rejection Designed for professional studio, stage, and broadcast use, it delivers a clear, detailed, and natural sound with minimal coloration and extremely low self-noise
Part of Neumann’s renowned KM 180 series, the KM 185 offers a tighter pickup pattern than the KM 184, making it particularly suitable for situations with strong ambient noise or where greater isolation is required Its transparent sound, smooth frequency response, and solid construction make it a versatile choice for instruments such as strings, piano, percussion, and brass, as well as for use as a spot or overhead microphone
Features
- Small-diaphragm condenser microphone with hypercardioid polar pattern
- Accurate, natural sound reproduction with smooth off-axis response
- Extremely low self-noise and high SPL handling
- Transformerless output design for maximum transparency
- Compact and lightweight for flexible placement
- Ideal for instruments, overheads, and spot miking
- Made in Germany to Neumann’s highest standards
Applications
- Strings, woodwinds, and brass instruments
- Piano, percussion, and drum overheads
- Choir and ensemble recording
- Broadcast and live sound applications
Included
- Neumann KM 185 microphone
- Microphone clip
- Windscreen
- Wooden box
Technical Specifications
- Acoustic Principle: Pressure gradient condenser
- Polar Pattern: Hypercardioid
- Frequency Response: 20 Hz - 20 kHz
- Sensitivity: 12 mV/Pa
- Equivalent Noise Level: 15 dB-A
- Maximum SPL: 142 dB (05% THD)
- Output Impedance: 50 Ω
- Signal-to-Noise Ratio: 79 dB (A-weighted)
- Power Supply: 48V ±4V phantom power
- Connector: XLR 3-pin
- Dimensions: 22 × 107 mm (⌀ × L)
- Weight: approx 80 g
