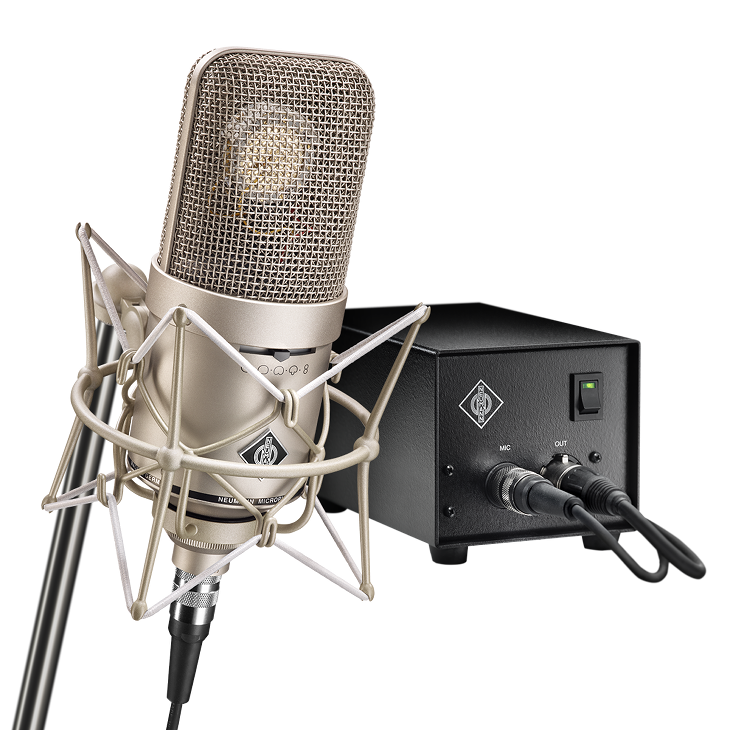

Neumann M 149 Tube Set
The Neumann M 149 Tube Set is a premium large-diaphragm condenser microphone that represents the pinnacle of Neumann’s tube microphone design Drawing inspiration from the legendary M 49, the M 149 combines classic tube warmth with state-of-the-art technology, delivering unmatched detail, presence, and musicality It is designed for the most demanding studio applications, from lead vocals and orchestral recordings to high-end broadcast and voiceover work
At its heart lies a carefully selected triode tube amplifier coupled with transformerless output circuitry for maximum transparency and low noise The M 149 offers nine selectable polar patterns, allowing it to adapt perfectly to any recording situation The included power supply and dedicated EA 170 shock mount ensure optimal performance and stability
Features
- Large-diaphragm tube condenser microphone inspired by the classic Neumann M 49
- Nine selectable polar patterns from omnidirectional to figure-8
- Tube amplifier circuit for warm, smooth tone with exceptional detail
- Transformerless output stage for clean, low-noise signal
- Switchable low-cut filter to reduce rumble and proximity effect
- Extremely wide frequency response and dynamic range
- Ideal for vocals, strings, piano, and orchestral recording
- Handcrafted in Germany to the highest standards
Applications
- Lead and background vocals
- Voiceover, narration, and broadcast
- Acoustic instruments, piano, and strings
- Orchestral and ensemble recording
- High-end studio and mastering environments
Included
- Neumann M 149 Tube microphone
- Neumann N 149 A power supply
- EA 170 elastic shock mount
- KT 8 cable (7-pin)
- Wooden presentation box
- Aluminum transport case
Technical Specifications
- Acoustic Principle: Pressure gradient condenser
- Polar Patterns: 9 (Omnidirectional, Cardioid, Figure-8, and intermediate positions)
- Frequency Response: 20 Hz – 20 kHz
- Sensitivity: 16 mV/Pa
- Equivalent Noise Level: 13 dB-A
- Maximum SPL: 140 dB (05% THD)
- Signal-to-Noise Ratio: 81 dB (A-weighted)
- Output Impedance: 50 Ω
- Power Supply: Neumann N 149 A (included)
- Connector: XLR 3-pin (microphone), 7-pin connection to PSU
- Dimensions: 70 × 201 mm (⌀ × L)
- Weight: approx 730 g (microphone only)
