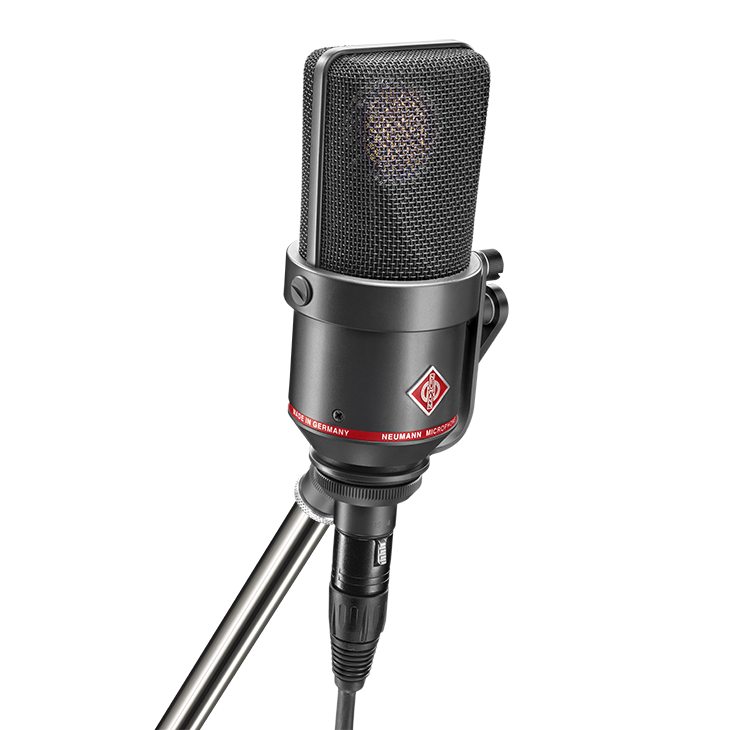

Neumann TLM 170 R MT
The Neumann TLM 170 R MT is a world-class multi-pattern large-diaphragm condenser microphone offering exceptional transparency, dynamic range, and versatility Designed for the most demanding professional studio and broadcast applications, the TLM 170 R MT delivers the natural, uncolored sound that has made Neumann microphones the reference choice for engineers worldwide The “MT” version features a sleek matte black finish for a refined and modern studio aesthetic
Equipped with five selectable polar patterns — omni, wide cardioid, cardioid, hypercardioid, and figure-8 — the TLM 170 R adapts easily to any recording environment Its dual-diaphragm capsule ensures smooth frequency response and consistent polar pattern behavior across the entire spectrum, capturing sound with exceptional realism and depth
The microphone’s transformerless circuitry provides an ultra-linear signal path with minimal distortion and maximum headroom It can handle extremely high sound pressure levels up to 154 dB (with the -10 dB pad engaged) while maintaining an impressively low self-noise The TLM 170 R MT is a true reference microphone, equally suited for orchestral recording, vocals, instruments, and broadcast applications
Features
- Multi-pattern large-diaphragm condenser microphone
- Five selectable polar patterns: omni, wide cardioid, cardioid, hypercardioid, and figure-8
- Transformerless output for transparent, low-distortion performance
- Handles sound pressure levels up to 154 dB (with pad)
- Exceptionally linear frequency response and natural sound
- Ultra-low self-noise and wide dynamic range
- Matte black (MT) finish for a modern studio look
- Made in Germany
Applications
- Professional studio and orchestral recording
- Broadcast, film, and post-production
- Vocals and acoustic instruments (piano, strings, winds, brass)
- Stereo and surround recording setups
Included
- Neumann TLM 170 R MT microphone
- Microphone mount (EA 170 or equivalent)
- Documentation
Technical Specifications
- Acoustic Operating Principle: Pressure gradient transducer
- Transducer Type: Dual large-diaphragm condenser
- Polar Patterns: Omni, Wide Cardioid, Cardioid, Hypercardioid, Figure-8
- Frequency Range: 20 Hz – 20 kHz
- Sensitivity: 8 mV/Pa
- Rated Impedance: 50 Ω
- Load Impedance: ≥ 1 kΩ
- Maximum SPL: 154 dB (with pre-attenuation)
- Equivalent Noise Level: 14 dB-A
- Dynamic Range: 130 dB
- Low Cut: 100 Hz (switchable)
- Pad: 0 dB / -10 dB
- Supply Voltage: 48 V ± 4 V (P48, IEC 61938)
- Connector: XLR 3F
- Dimensions: Ø 60 mm × 152 mm
- Weight: approx 625 g
- Finish: Matte black (MT)
- Made in Germany
