Royer Labs R-10 Ribbon Microphone with R-DB20 dBooster In-line Signal Booster
This high-performance bundle combines the Royer R-10 ribbon microphone with the R-DB20 dBooster in-line signal booster—an ideal solution for capturing the warm, detailed tone of a ribbon mic with added headroom and clarity. Whether you’re in the studio or on stage, this combo delivers world-class sound with excellent gain control and minimal noise.

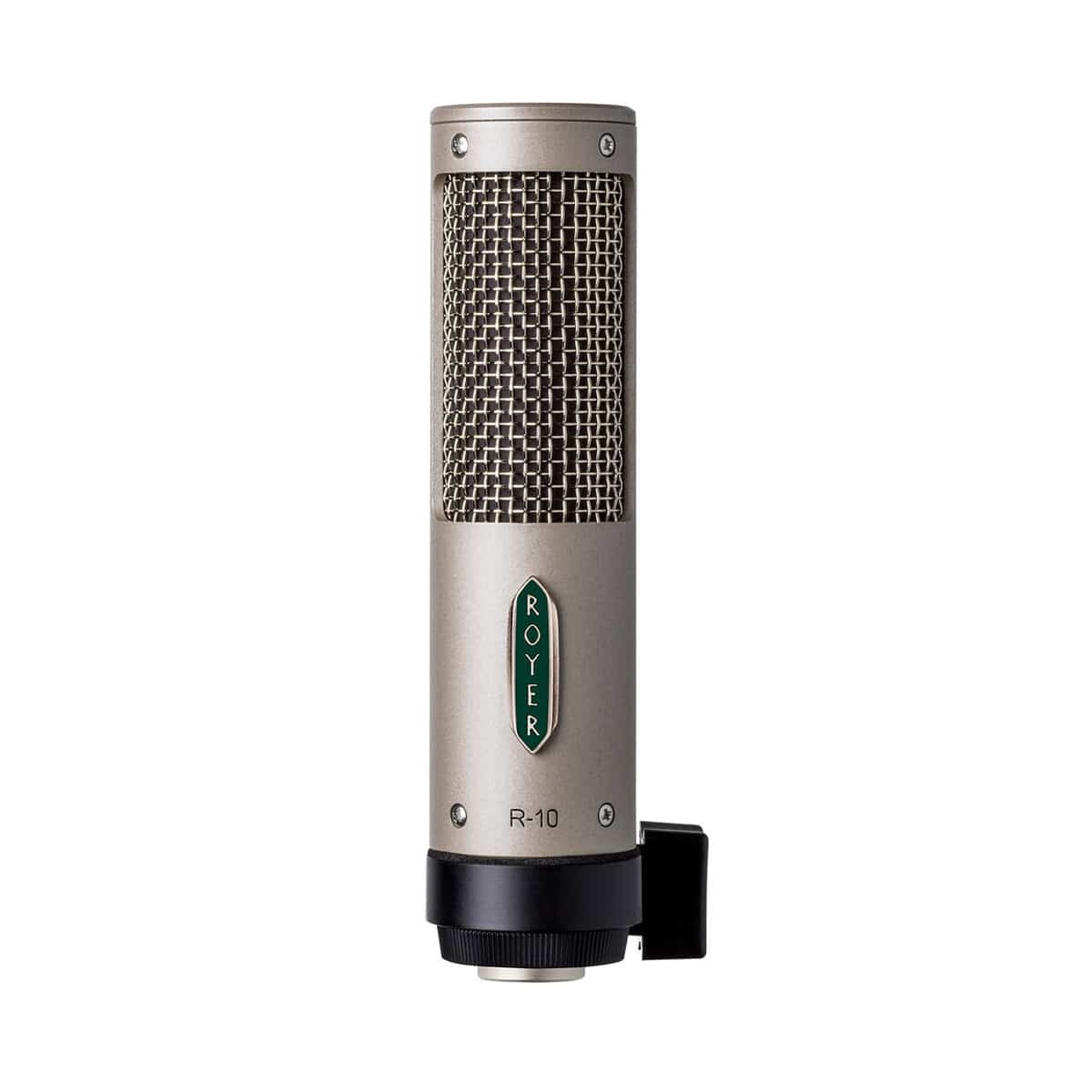

The Royer R-10 is a compact, rugged ribbon microphone designed to handle high SPLs while delivering the natural, balanced sound Royer is known for. Perfect for electric guitars, drums, brass, vocals, and more, the R-10 maintains an open and detailed sonic profile even in demanding recording environments. Its figure-8 polar pattern and smooth frequency response make it versatile for both close and ambient miking.

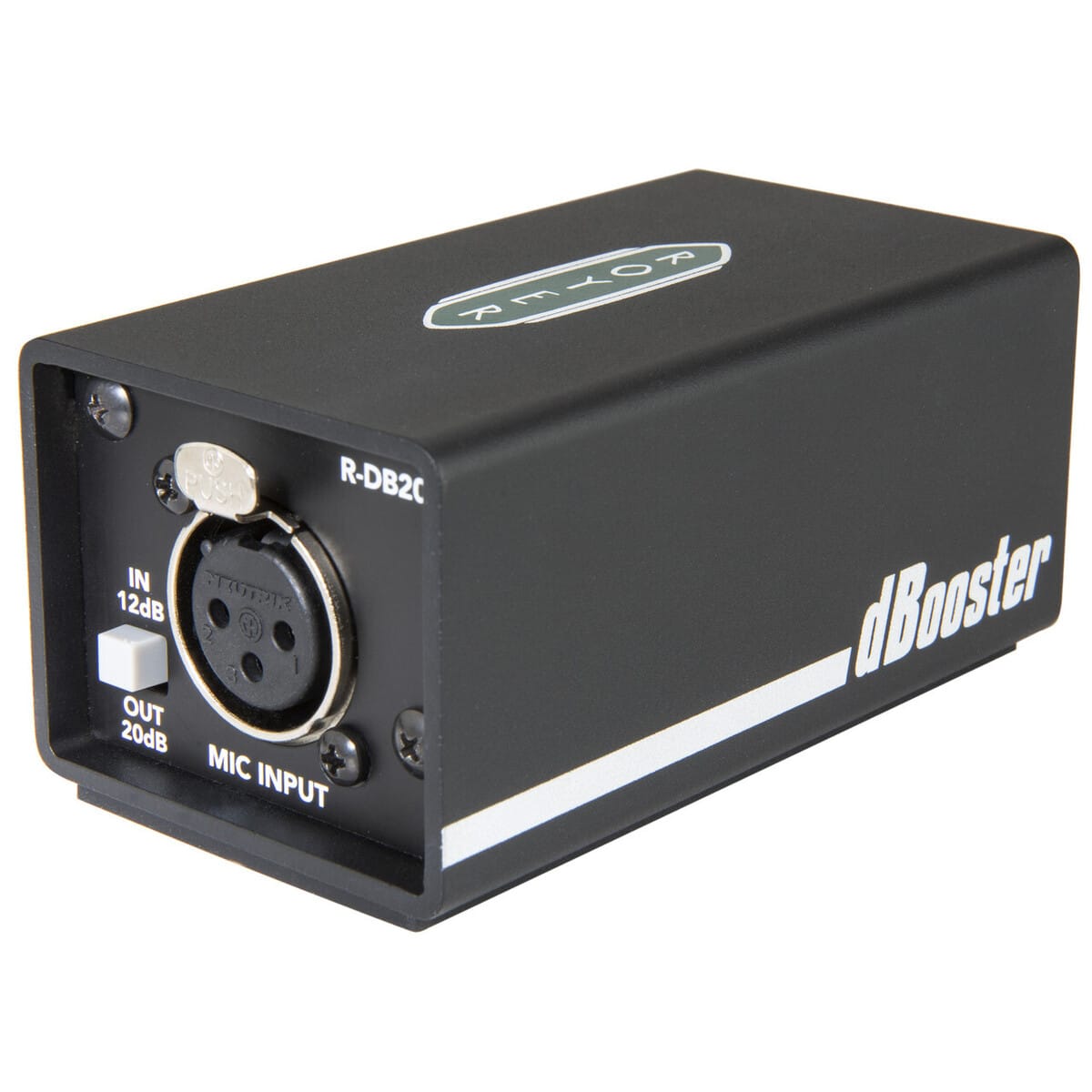

Included is the Royer R-DB20 dBooster, an in-line signal booster that provides switchable +12 dB or +20 dB of ultra-clean gain—ideal for low-output microphones like the R-10. The dBooster ensures full frequency capture, low distortion, and excellent transient response, enhancing the mic’s output without adding coloration or noise.

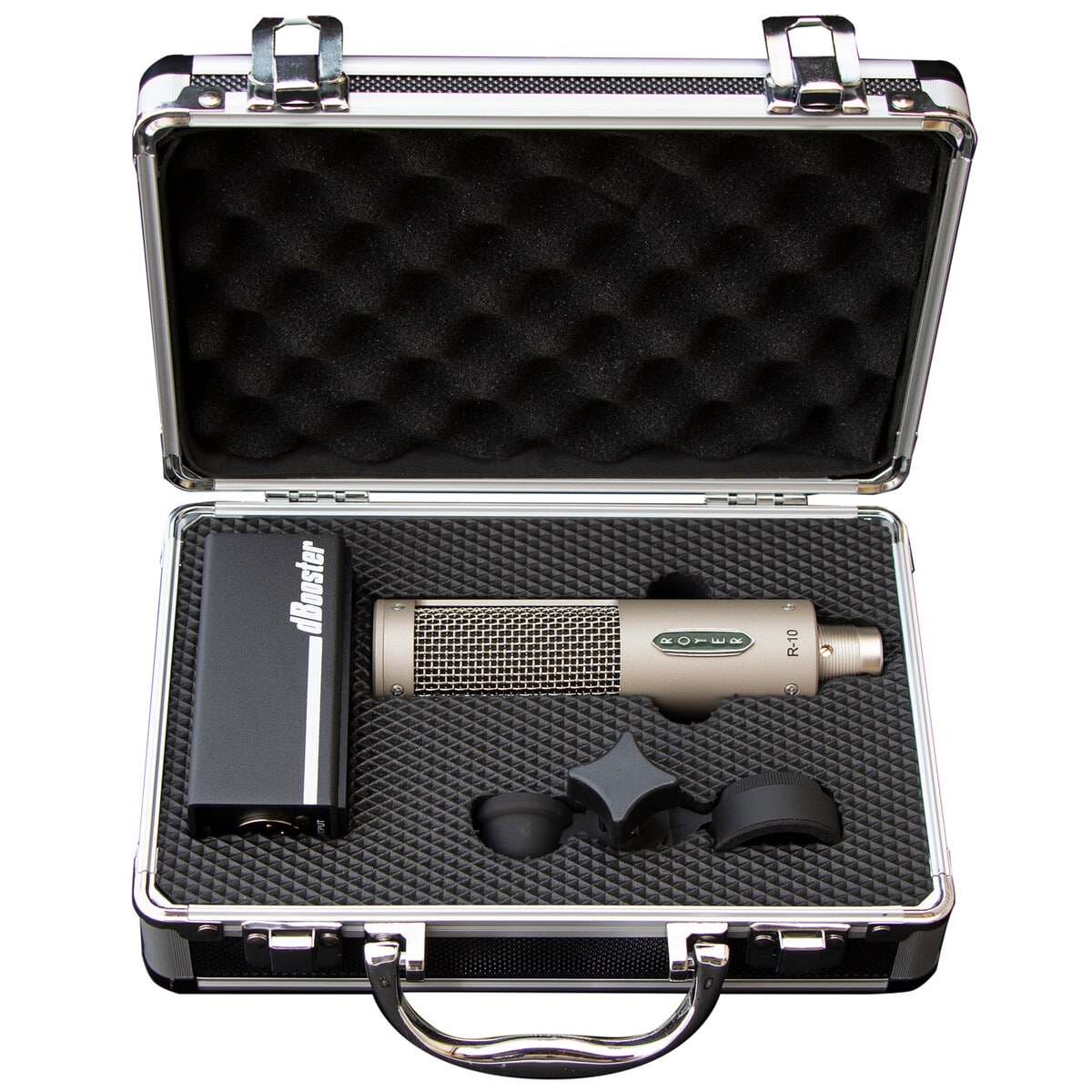

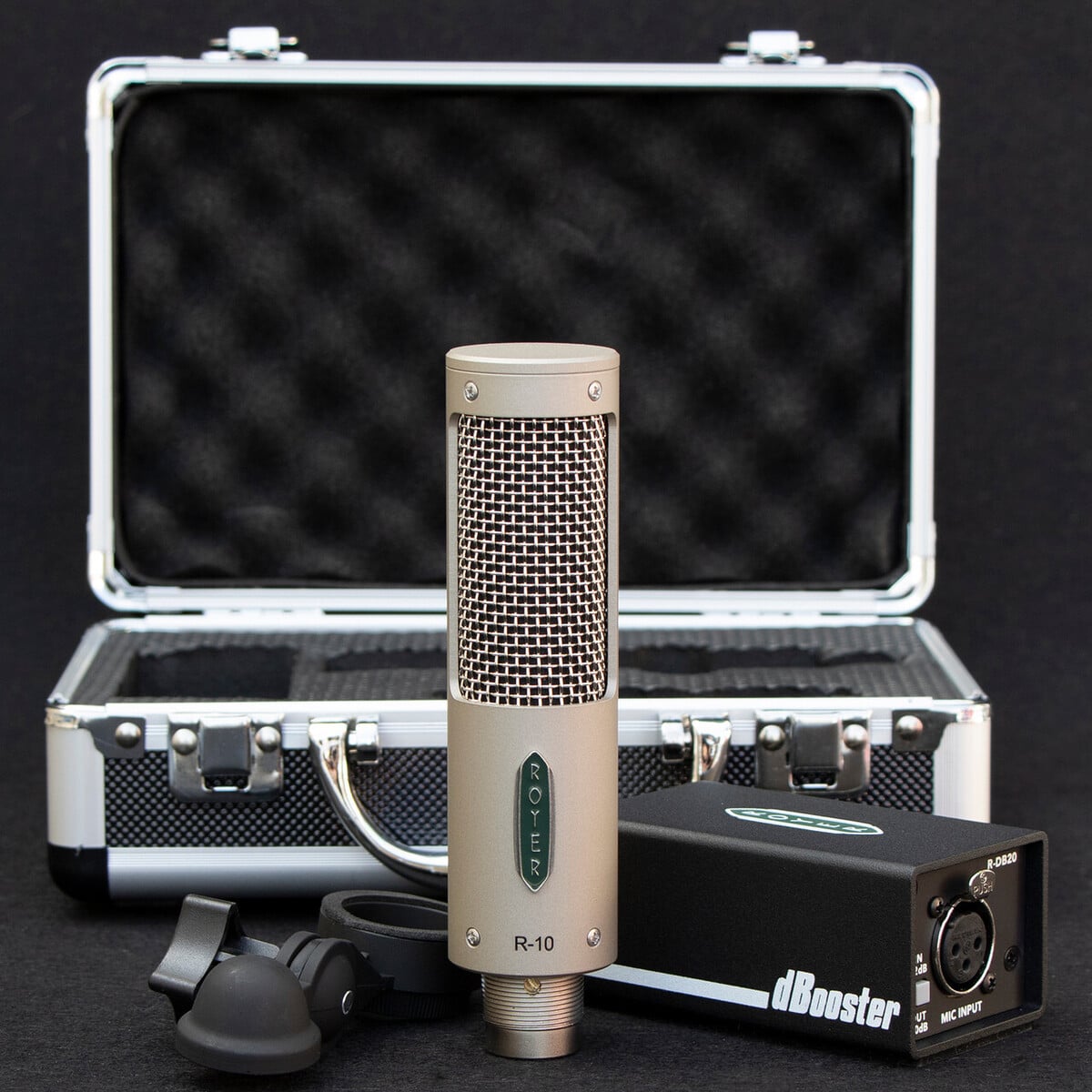

What's Included:
- 1 x Royer Labs R-10 Ribbon Microphone
- 1 x Royer Labs R-DB20 dBooster In-line Signal Booster
- 1 x Microphone Mounting Clip
- 1 x Protective Microphone Sleeve
- 1 x Padded Carrying Case
R-10 Ribbon Microphone Technical Specifications:
- Transducer Type: Ribbon Velocity Microphone
- Frequency Response: 30 Hz - 15 kHz ±3 dB
- Polar Pattern: Figure-8
- Sensitivity: -54 dBv/Pa (2.0 mV/Pa)
- Impedance: 100 Ohms (nominal)
- Max SPL: 160 dB @ 1 kHz
- Output Connector: XLR, 3-pin male
- Weight: 368 g (13 oz)
- Dimensions: 45 mm x 158 mm (1.77″ x 6.25″)
R-DB20 dBooster Technical Specifications:
- Gain Options: Selectable +12 dB or +20 dB
- Input Impedance: 3.3 kΩ (optimised for ribbon and dynamic mics)
- Output Impedance: 300 Ω
- Max Input Level: +1 dBu at 1% THD
- Noise: Less than -100 dB EIN
- Power: Requires 48V phantom power (phantom not passed to mic)
- Construction: Rugged metal housing for studio and stage use
- Dimensions: 33 mm x 120 mm (1.3″ x 4.75″)
- Weight: Approx. 170 g (6 oz)
Why Choose the R-10 + dBooster Bundle?
This bundle offers the perfect combination of Royer’s signature ribbon tone and the clean gain required for professional-grade recordings. The R-10 delivers depth and warmth across a wide range of sources, while the R-DB20 ensures compatibility with virtually any preamp, removing the need for ultra-high-gain mic inputs.
From guitar cabinets to acoustic instruments, this setup ensures a clear, full-bodied signal path—ideal for engineers, musicians, and content creators seeking ribbon mic warmth with modern flexibility.
