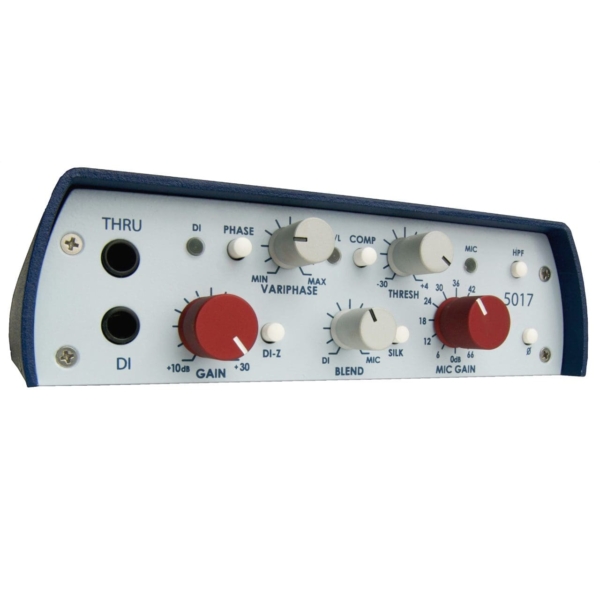

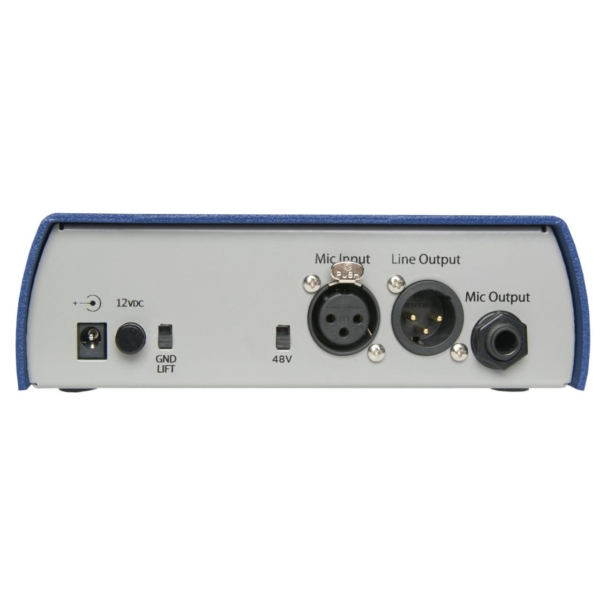

Rupert Neve Portico 5017 is Neve sound in a portable format. Portico 5017 consists of a robust, portable chassis with Neve Portico pre-amp, compressor and DI circuitry and options for two-channel operation, vari-phase, silk circuitry and DI/mic mix functions.
The 5017 is an innovative and powerful tool for recording or live performance, and with the built-in compressor it's possible to control the dynamics too.
Specifications:
Dimensions
7.5″ (deep) x 6.5″ (wide) x 2″ (high)
Frequency Response:
Main Output, no load,
-0.2 dB @ 10 Hz
-3 dB @ 160 kHz
Noise:
Measured at Main Output, unweighted, 22Hz-22kHz,
Terminated 150 Ohms.
With gain at unity better than -100 dBu
With gain at 66 dB better than -62 dBu
Equivalent Input Noise better than -128 dBu
Noise Factor 1.5dB
Maximum Output Level:
Maximum output from 20 Hz to 40 kHz is +23 dBu.
Total Harmonic Distortion and Noise:
@ 1kHz, +20 dBu output: Main Output: Better than 0.001%
@ 20Hz, +20 dBu output: Main Output: Better than 0.002%
Silk Engaged: Better than 0.2% Second harmonic
Crosstalk:
Measured channel to channel: Better than -90 dB @ 15kHz.
Phantom Power:
+48 Volts DC +/- 1%
