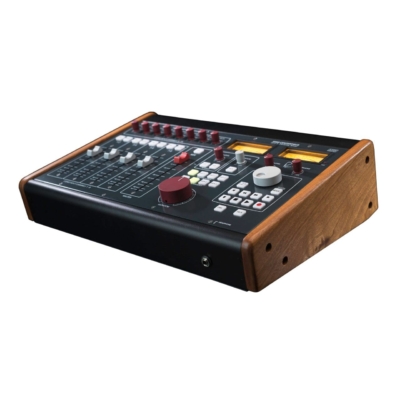

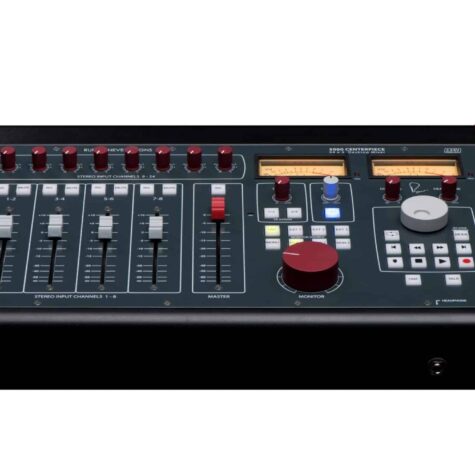

Rupert Neve 5060 Centerpiece 24×2 Desktop Mixer

Rupert Neve 5060 24×2 desktop mixer perfect as the center of the modern studio.
The 5060 is a true Neve mixer in an ultra compact format, it is in practice a scaled down version of the large 5088 mixer and uses the same mixbux/center section as this mixer. This means that Rupert Neve transformers and Class-A mix buses, but also that the tonality can be varied with his “Silk” and a mix can be “driven” as you now do with a Neve mixer when you want to achieve the beloved “tone” and fullness which is a Neve trademark. The 5060 is built so that it unites Rupert’s vision of sound and humming with the modern compact studio, and it integrates easily and clearly with DAW systems, not only with the analog connections but also with DAW control of the usual start-stop-rec etc.

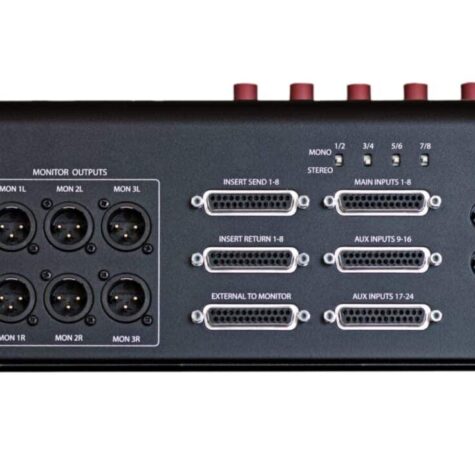

Connections

• Mix Inputs 1-24: 2 x DB-25
• Mix Channel Inserts Send/Return1-8: 1 x DB-25
• Mix Send to External Monitor:
• Monitor Outputs (Mon 3 latching): 6 x XLR
• Talkback Output: 1 x TRS
• Talkback Remote: 1 x TS
• Stereo Mix Insert/Return L-R: 4 x TRS
• Stereo Mix Output:2 x XLR

Midi In / Out: 2 x Midi
Computer Connection: USB
Power: 3-Pin IEC
Dimensions

• 18.5″ wide x 12.5″ deep x 5.75″ high in the back (3.5″ in the front)

Stereo Outputs
(unless otherwise specified, frequency is 1 kHz)

• Channels 1-8 Max input level
• Fader at 0: 25.4 dBu
• Fader at +10: 15.2 dBu
• Channels 9-24 Max input level
• trim at 0: 25.4 dBu
• Max Output level
• Any combination of inputs: 25.4 dBu
• THD+N
• Channels 1-8, fader at unity, THD+N BW <10 Hz – 80k Hz
• +20 dBu, 20 Hz: 0.023%
• +20 dBu, 2 kHz: 0.0022%
• +20 dBu, 20 kHz: 0.016%
• Channels 9-24, trim at unity, THD+N BW <10 Hz – 80k Hz>
• +20 dBu, 20 Hz: 0.023%
• +20 dBu, 2 kHz: 0.0032%
• +20 dBu, 20 kHz: 0.017%
• Noise
• BW 22 Hz – 22 kHz
• Channels 1-24: Better than -90 dBV
• Channels 9-24: Better than -100 dBV
• X-talk
• + 10 dbu, 10 kH, L/R: -49 dB

Channel to channel

• CMRR at 1K input to channel 1, 0 dBu fader at unity: -70 dBu
• Frequency Response
• 10 Hz to 120 kHz: +/- 0.25 dB
• 185 kHz: -3 dB
• IMD
• +4 dBu, CCIF/DFD: 0.0008%
• Silk (Texture control at maximum)

Noise

• +20 dBu in, 20 Hz: Better than 5%
• +20 dBu in, 200 Hz: Better than 0.2%
• Frequency Response
• 0 dBu in, 20 kHz – 2.3 dBu
• Distortion
• +20 dBu in, 20 Hz -Better than 5%
• +20 dBu in, 200 Hz – Better than 0.15%
• Frequency Response
• 0 dBu in, 30 Hz: -1 dBu
• Peak LEDs:
• Trigger Threshold: +22 dBu

Monitor Outputs

• Max Output level 1 kHz: +25 dBu
• THD+N
• +20 dBu, 20 Hz: 0.023%
• +20 dBu, 2 kHz: 0.0032%
• +20 dBu, 20 kHz: 0.017%
• Noise
• 1-24: Better than -90 dBV
• 9-24: Better than -100 dBV
• Headphone Out
• Max output level: Better than +20 dBu, unloaded
• THD+N
• 2 kHz into 68 ohms, 16 dBu output: Better than 0.02%
• Noise (22 Hz – 22 kHz): Better than -85 dBV
• Minimum Load: 16 ohms recommended (8 absolute min)
