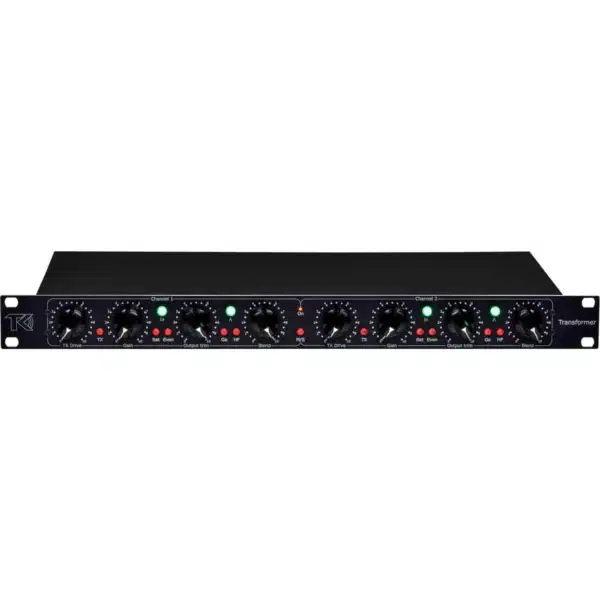

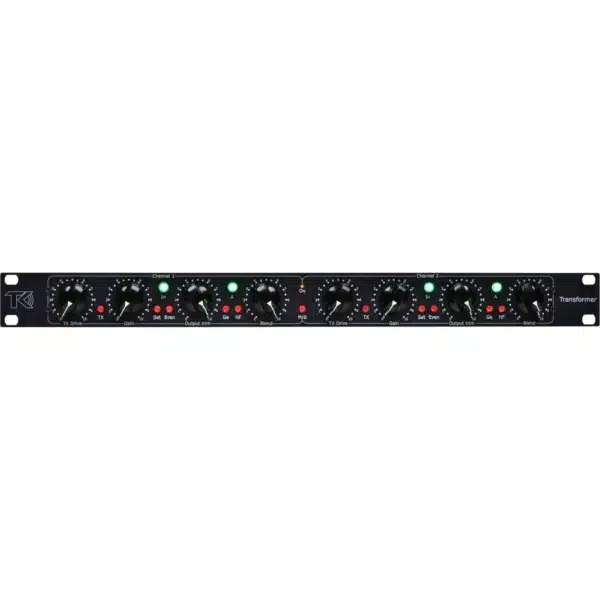

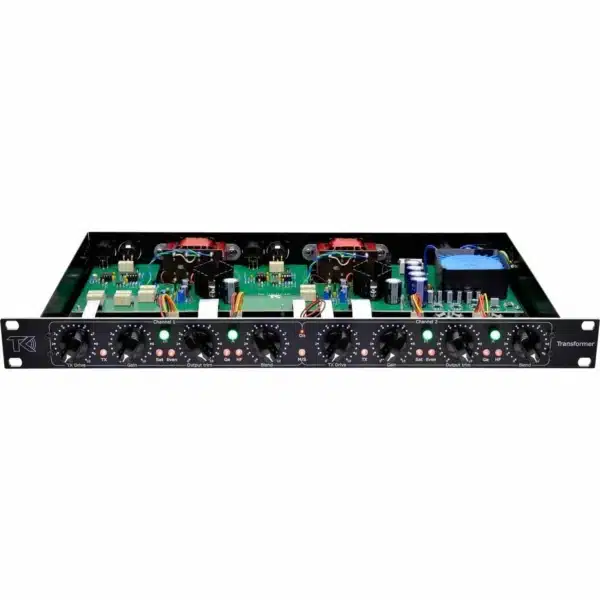

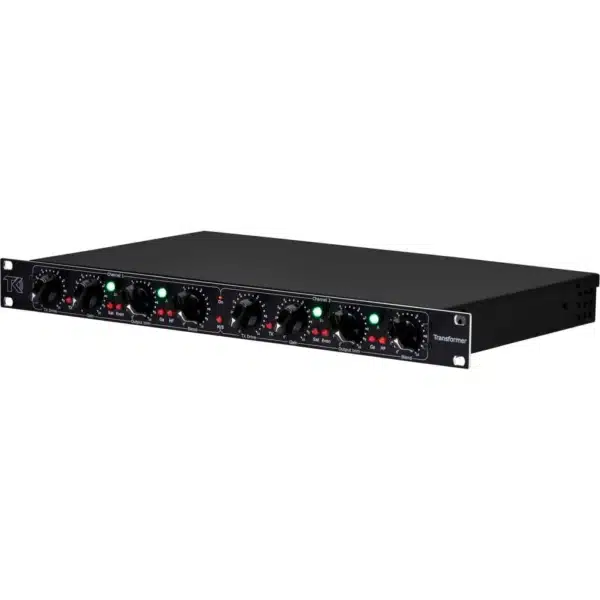

The TK Audio The Transformer is a powerful and versatile tool designed to shape and enrich sound through multiple harmonic stages, offering vintage warmth, punch, and colour to recordings and mixes.
Harmonic Generating Stages
The Transformer incorporates three distinct harmonic generation stages: a transformer saturation circuit, a passive saturation circuit, and an active germanium stage. These stages work together to produce a rich blend of odd and even harmonics, each contributing uniquely to the tonal quality of the sound. The transformer saturation stage adds low-end harmonics while providing a subtle low-end boost around 30Hz. The passive saturation circuit introduces both odd and even harmonics, depending on the intensity with which it is driven, whereas the active germanium stage offers a more vintage tone, emphasising even harmonics with a smooth high-end. These stages allow for significant flexibility in tonal shaping, ensuring each sound retains character and depth.
TX Drive – Transformer Saturation Stage
The TX Drive is the first harmonic stage, focused on transformer saturation. With a single control, the amount of transformer saturation can be adjusted without altering the overall level. This circuit generates a gentle 1% of low-end distortion and a modest increase in higher harmonics, alongside a noticeable low-end boost around 30Hz. Turning the drive control adjusts the saturation, reducing the low-end bump and higher harmonics while maintaining the low-end harmonic content.
Gain Control
Following the TX Drive is a gain control, allowing further pushing of the saturation and germanium stages for additional harmonic content. This control is essential for those looking to drive the circuitry harder, intensifying the harmonic distortion in later stages.
Sat – Passive Saturation Circuit
The second stage, labelled as “Sat”, is a passive saturation circuit known for introducing a considerable amount of odd harmonics. By engaging the Even switch, users can introduce even harmonics as well. The saturation and harmonic content in this stage are highly dependent on the amount of drive applied, giving users precise control over the type and intensity of distortion.
Ge – Active Germanium Stage
Next in the chain is the Ge stage, an active germanium circuit that adds a more vintage, warm tone, predominantly generating even harmonics. The germanium stage introduces a unique character, with a smoother high-end and a pleasant overall tonal balance. Like the previous stages, the amount of harmonic content is determined by how hard the stage is driven.
Output Trim
Both the Sat and Ge stages are followed by an output trim control, which allows for fine adjustment of the signal level before it enters the blend control. This is crucial for achieving the perfect balance between the processed signal and the dry signal, giving engineers precise control over the final output level.
Blend Control
The blend control enables users to mix the processed harmonic signal with the dry signal, allowing for a seamless integration of the added harmonics while preserving the integrity of the original sound. This feature provides flexibility in achieving the desired amount of saturation and harmonic colour, from subtle to more pronounced effects.
M/S Processing
The M/S (Mid/Side) function in The Transformer allows for independent processing of the mid and side channels, providing the option to apply different harmonic stages to each. For example, one can use the TX Drive on the mid channel for added low-end warmth and apply the Sat and Ge stages to the side channels for increased harmonic richness. The M/S function, however, is not compatible with the class-A stage, as this stage is placed after the M/S processing in the signal chain.
Class-A Stage
The final section of The Transformer features a selectable vintage transformer-coupled class-A stage. This stage imparts a fat, punchy sound with mid-range character and a silky high-end reminiscent of the British class-A tone from the 1970s. Additionally, the class-A stage includes a high-frequency boost function, adding a touch of air to the sound when activated. This feature helps to brighten up the overall tone, adding clarity and sparkle without becoming harsh or artificial.
