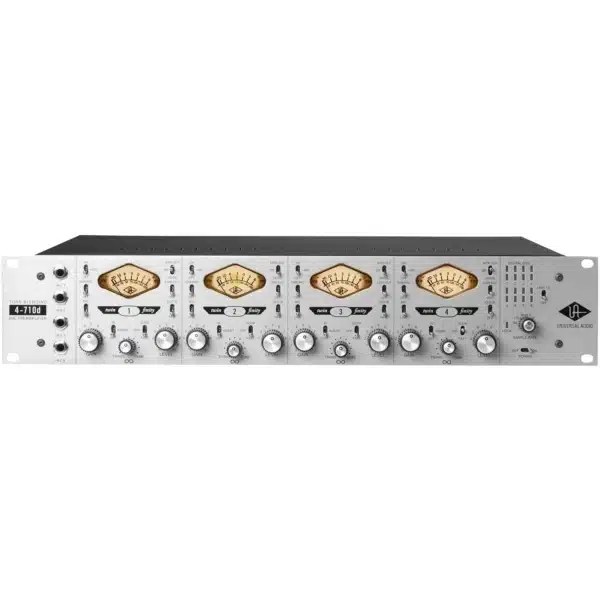

4-710D Four-Channel “Twin-Finity” Mic Preamp & DI with Compressor The 4-710D is a modern 4-channel preamp with roots back in time, featuring 4 of the award-winning 710 Twin-Finity mic preamp with both transistor and tube, allowing you to seamlessly mix tube and transistor-based sound.
But the 4-710D is much more than that… Each mic channel is equipped with a newly designed 1176-style compressor/soft limiter for dynamic control.
If you use the built-in A/D digital conversion, you get access to 4 extra inputs.
A total of 8 channels of 24-bit, 192 kHz A/D conversion with both ADAT and AES/EBU output (DB25).
This makes the 4-710D ideal as an add-on to, for example, one of Universal Audio’s Apollo interfaces and complements Apogee Symphony or Avid HD/HDX systems.

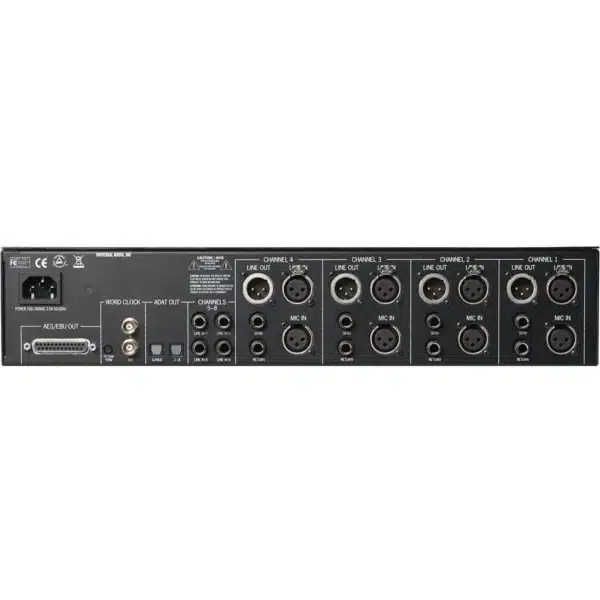

The microphone channels naturally also have analog outputs – separate and balanced, and are also equipped with balanced insert send/returns so you can add EQ or effects to the signal path. SpecificationsPreamplifiers
- Four TEC Award-winning 710 Twin-Finity™ microphone/line preamps, each featuring:

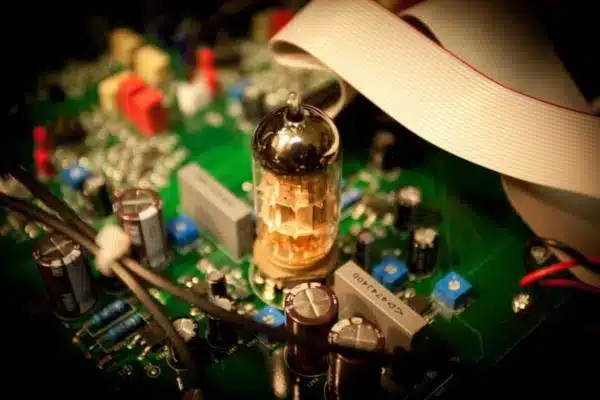

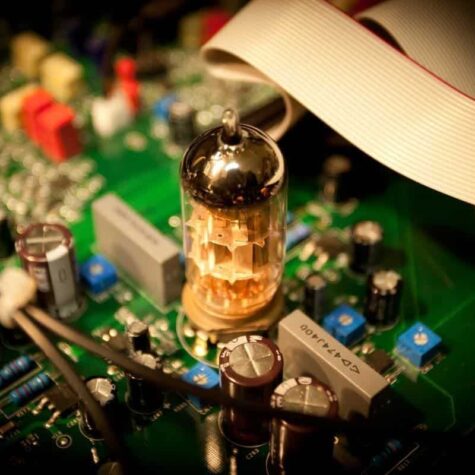

- Dual-path 285-volt Class-A tube and transimpedance solid-state preamps
- Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy
- Newly designed 1176-style compression circuit per preamp channel
- JFET Direct Input with 2.2MΩ ultra Hi-Z impedance w/auto input override
- Large backlit VU meters for flexible metering of input drive, gain level, and gain reduction
- Balanced send/return inserts (half-normalized)
- 48V phantom power
- 75 Hz low cut filter
- Polarity switch
- Monolithic balanced output stage
Analog-to-Digital Conversion
- Eight channels of high quality 24-bit A/D conversion:
- Selectable sample rates up to 192 kHz
- Digital output via dual ADAT optical and AES/EBU DB-25 connectors
- 8-channel soft limiter (switchable for all channels)
- Ultra-low jitter clock subsystem
- LED metering array with clip/hold indicators
- 75Ω BNC work clock I/O
- Digital outputs anti-pop protection on power-up
Other
- Universal voltage internal power supply
- Heavy-duty metal construction, two-space rack unit
