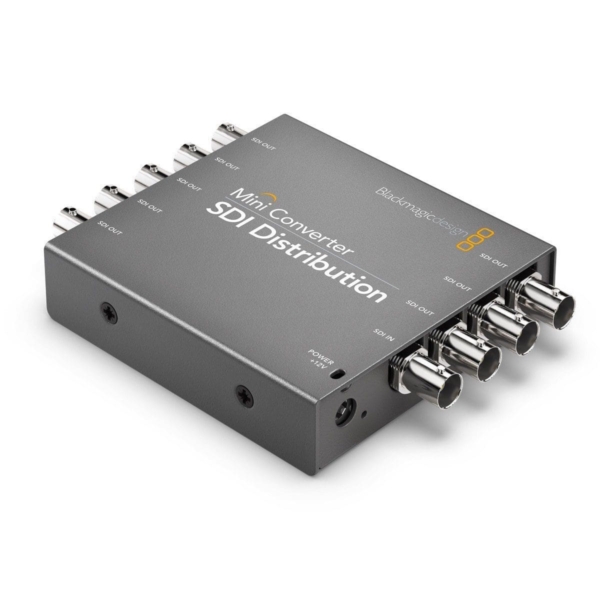

Blackmagic Mini Converter SDI Distribution – 1×8 SDI Reclocking Distribution Amplifier
The Blackmagic Mini Converter SDI Distribution is a compact, professional SDI splitter designed for broadcasting, live events, and video installations. It takes a single SDI input and distributes it to eight independent 3G-SDI outputs, all with automatic reclocking to ensure the highest signal integrity over long cable runs.
This robust converter supports all common SDI video formats in SD, HD, and 3G-SDI up to 1080p60, and is ideal for delivering clean, synchronized signals to multiple monitors, recorders, or switchers simultaneously. Whether you’re working in OB vans, post-production, or live event setups, this device guarantees seamless signal distribution in even the most demanding environments.
Key Features:
- 1 x SDI input with 8 x independent 3G-SDI outputs
- Automatic SD, HD, and 3G-SDI format detection
- Reclocking on all outputs for superior signal quality
- Supports SDI video up to 1080p60
- Compact and durable all-metal housing
- 12V universal power supply with locking connector included
- Ideal for video walls, broadcast distribution, and monitoring setups
Technical Specifications:
- SDI Video Input: 1 x SDI (switchable between SD, HD, and 3G)
- SDI Video Output: 8 x 3G-SDI with reclocking
- SDI Compliance: SMPTE 259M, 292M, 424M
- Supported Formats: SD (525i/625i), HD (720p, 1080i, 1080p), up to 1080p60
- Reclocking: Yes, on all outputs
- Power: 12V DC (locking power connector, PSU included)
- Dimensions: 112 x 92 x 25 mm
- Weight: Approx. 300 g
Ideal For:
The Blackmagic SDI Distribution Converter is the perfect solution for delivering a single SDI signal to multiple destinations without loss of quality. Use it in control rooms, studios, OB vans, or live productions where reliable SDI distribution is critical.
Ensure pristine signal distribution with the Blackmagic Mini Converter SDI Distribution.
