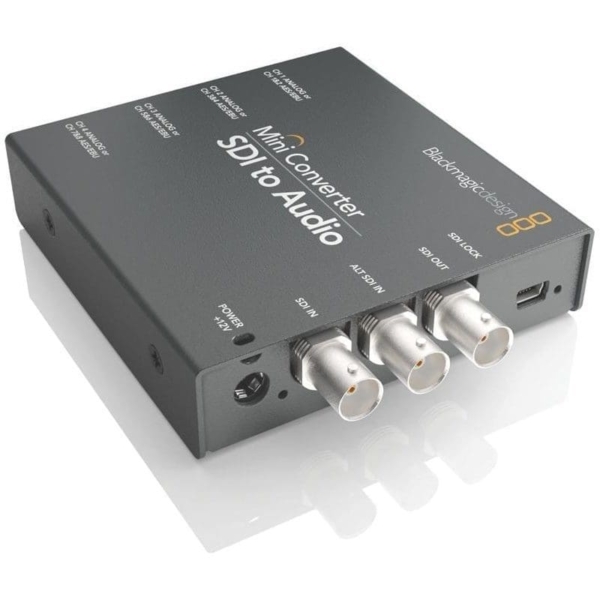

Blackmagic Mini Converter – SDI to Audio
The Blackmagic Mini Converter SDI to Audio is a professional-grade solution for de-embedding audio from any SDI video source. Designed for use in broadcast, live production, and post-production environments, this compact converter extracts audio embedded in SD, HD, or 3G-SDI signals and outputs it as balanced analog or AES/EBU digital audio.
With support for up to 1080p60 video formats and full 24-bit audio processing, the SDI to Audio converter delivers uncompromising sound and image quality. It’s perfect for routing audio to external mixers, monitors, or audio processors while maintaining a clean and stable SDI video signal.
Key Features:
- De-embeds audio from SD, HD, or 3G-SDI video
- Outputs 4 channels of balanced analog or 8 channels of AES/EBU digital audio
- SDI loop output for monitoring or signal distribution
- Full 24-bit digital audio processing
- Compatible with video resolutions up to 1080p60
- Ideal for professional AV, broadcast, and post workflows
- Includes 12V universal power supply with locking connector
Technical Specifications:
- SDI Input: 1 x SD/HD/3G-SDI with embedded audio
- SDI Loop Output: 1 x SDI pass-through
- Audio Outputs: 4 x analog balanced audio (1/4″ jack) or 8 x AES/EBU digital audio
- Supported Formats: NTSC, PAL, 720p, 1080i, 1080p up to 60 fps
- Audio Precision: 24-bit, 48 kHz
- SDI Standards: SMPTE 259M, 292M, 296M, 424M
- Power Supply: 12V DC (locking connector, PSU included)
- Dimensions: 112 x 92 x 25 mm
- Weight: Approx. 300 g
Ideal For:
The Blackmagic SDI to Audio converter is ideal for professionals who need to extract high-quality audio from SDI video sources for live sound reinforcement, monitoring, or post-production processing. Its compact size and rugged design make it a reliable choice for both studio and field use.
Enhance your workflow with precise audio de-embedding using the Blackmagic Mini Converter – SDI to Audio.
