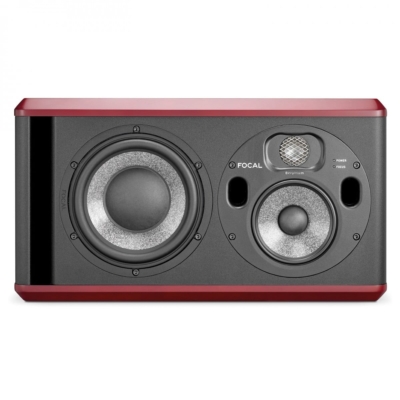

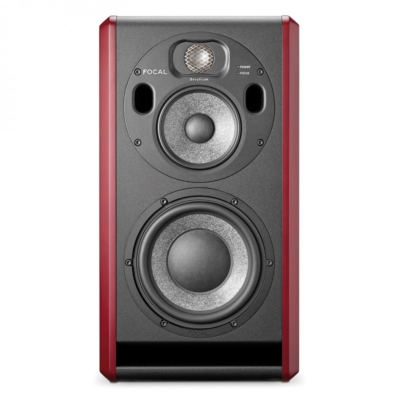

The Focal Trio6 ST6 Studio Monitor is a versatile piece of equipment that offers exceptional transparency, precision, and dynamics for professional studio use. Made in France, this 3-way monitor is designed to provide exceptional sound reproduction with the utmost sonic accuracy. Featuring a double ‘Focus’ mode, the Trio6 can function as a 1-way or 2-way monitor, making it equivalent to three monitors in one. This flexibility allows you to easily switch between different monitoring setups, depending on your specific requirements. Equipped with a Beryllium inverted dome tweeter, the Trio6 delivers a frequency response that extends up to an impressive 40 kHz. This ensures exceptional detail and accuracy in the high-frequency range. Additionally, it boasts a 5-inch midrange woofer and an 8-inch subwoofer, both constructed with composite ‘W’-cone technology and a 35Hz cut-off frequency, providing a powerful and well-defined bass response. The Trio6 incorporates several exclusive Focal technologies, including TMD suspension, laminar venting, reinforced cabinetry, and IAL, to deliver outstanding performance and durability. It also offers a range of useful features such as a high-pass crossover, disengageable automatic standby mode, and a 160 Hz LMF crossover for minimizing console reflections.
Specifications
- Frequency response (@ -3dB): 35Hz – 40kHz
- Focus mode 1: 100Hz – 15kHz
- Focus mode 2: 80Hz – 40kHz
- Maximum SPL (Average CEA2034 50–10kHz free field @ 1m): 115dB
- Focus mode 1 (Average CEA2034 100–10kHz free field @ 1m): 112dB
- Focus mode 2 (Average CEA2034 100–10kHz free field @ 1m): 112dB
- Input: Balanced XLR 10k ohms
- Bass amplifier stage: 100W RMS, G-class
- Midrange amplifier stage: 100W RMS, G-class
- Treble amplifier stage: 50W RMS, AB-class
- Nominal power supply: 100 – 120V 50/60Hz, 220 – 240V 50/60Hz
- User controls: Sensitivity, Auto standby, Focus mode, HPF, LF Shelv, LMF EQ, HF Shelv
- Fuses: 100–120V, 50/60Hz, T3.15AH/250V 220–240V, 50/60Hz, T1.6AH/250V
- Bass: 8″ ‘W’ cone
- Midrange: 5″ ‘W’ cone
- Treble: 1.5″ Beryllium
- Shielding: No
- Construction: 7/8″ (22mm) MDF
- Finish: Dark red natural veneer side panels, black body
- Dimensions (H x W x D): 211/8″x111/2″x141/2″ (53.7 x 29.2 x 36.9cm)
- Weight: 55.12lbs (25kg)
- Temperature range: During use: 5–35°C, During storage: 0–50°C
