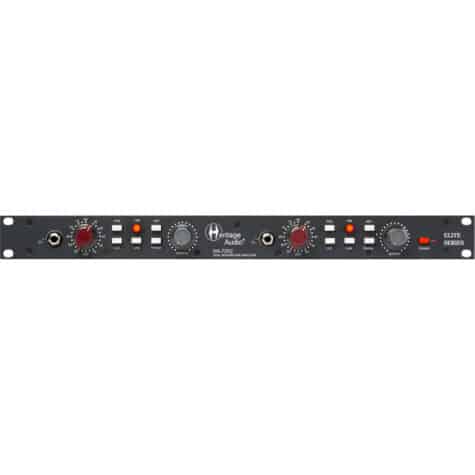

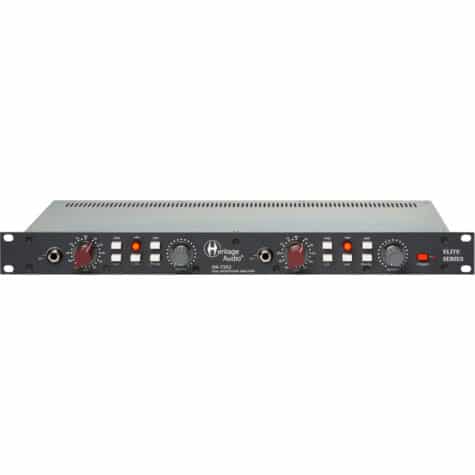

Heritage Audio 73X2 Elite Dual Mic Preamp DI in 1RU Format
The Heritage Audio 73X2 Elite Dual Mic Preamp DI in a compact 1RU format brings the legendary sound of the classic 73-style preamp to your studio in a powerful and accessible package. Featuring two channels of fully discrete, Class-A circuitry, the 73X2 Elite delivers the iconic warmth, depth, and musicality that has defined countless hit records for decades.
Each channel offers a classic 3-gain stage design with a dedicated output trim, allowing you to achieve rich harmonic saturation or pristine clean gain. The 73X2 Elite also features front-panel DI inputs for direct connection of instruments like bass, guitar, and keyboards, preserving their full tone and dynamics with vintage character.
Hand-assembled using premium components, Carnhill transformers, and true to the original circuit topology, the 73X2 Elite is a perfect choice for engineers, producers, and musicians looking for authentic British-style preamp tone in a space-saving design. Ideal for vocals, acoustic instruments, electric guitars, bass, and overheads, this versatile unit ensures your recordings stand out with unparalleled analog richness.
Key Features:
- Dual-channel 73-style microphone preamp with DI in 1RU rack format
- Fully discrete Class-A circuitry for vintage analog sound
- Carnhill input and output transformers for authentic tone
- Front-panel DI inputs for direct instrument recording
- Three-gain stage design with output trim per channel
- Switchable input impedance to match various microphones
- Selectable high-pass filter to manage low-frequency buildup
- Phantom power (+48V), phase reverse, and mic/line input switching
- Handcrafted with premium components for maximum reliability
- Perfect for tracking vocals, guitars, bass, drums, and more
Technical Specifications:
- Mic Input: XLR balanced
- Line Input: XLR balanced
- DI Input: 1/4″ TS front-panel input per channel
- Output: XLR balanced
- Gain Range: Up to 80 dB
- High-Pass Filter: 80 Hz selectable
- Phantom Power: +48V switchable
- Phase Reverse: Yes, switchable
- Input Impedance: Switchable for mic and line sources
- Frequency Response: 20 Hz - 20 kHz ±0.5 dB
- THD+N: <0.025% @ 1 kHz
- Dimensions: 1U 19″ rackmount
- Weight: Approximately 4.5 kg
Bring the unmistakable sound of classic British preamps into your productions with the Heritage Audio 73X2 Elite Dual Mic Preamp DI — a perfect blend of heritage tone, modern flexibility, and professional reliability in a space-saving 1U rack format.
