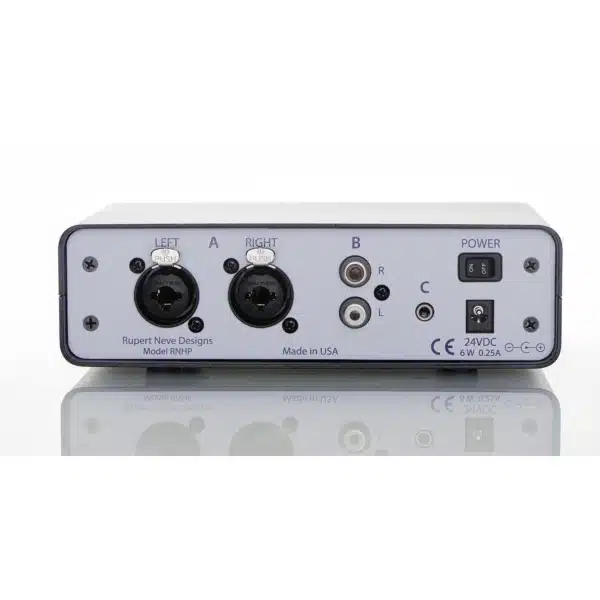

Rupert Neve high-end headphone amplifier that contains Neve’s well-known technology from the large 5088 desks.
Whether you’re tracking, mixing or just listening to music, your headphone amp is just as important to the final sound quality as your headphones – but the world is full of headphone amps with compromised sound, headroom and power.
To address these shortcomings, Rupert Neve and his team at Rupert Neve Designs have developed the RNHP. RNHP is for the absolutely demanding listener who wants every detail in critical listening.
Specifications :

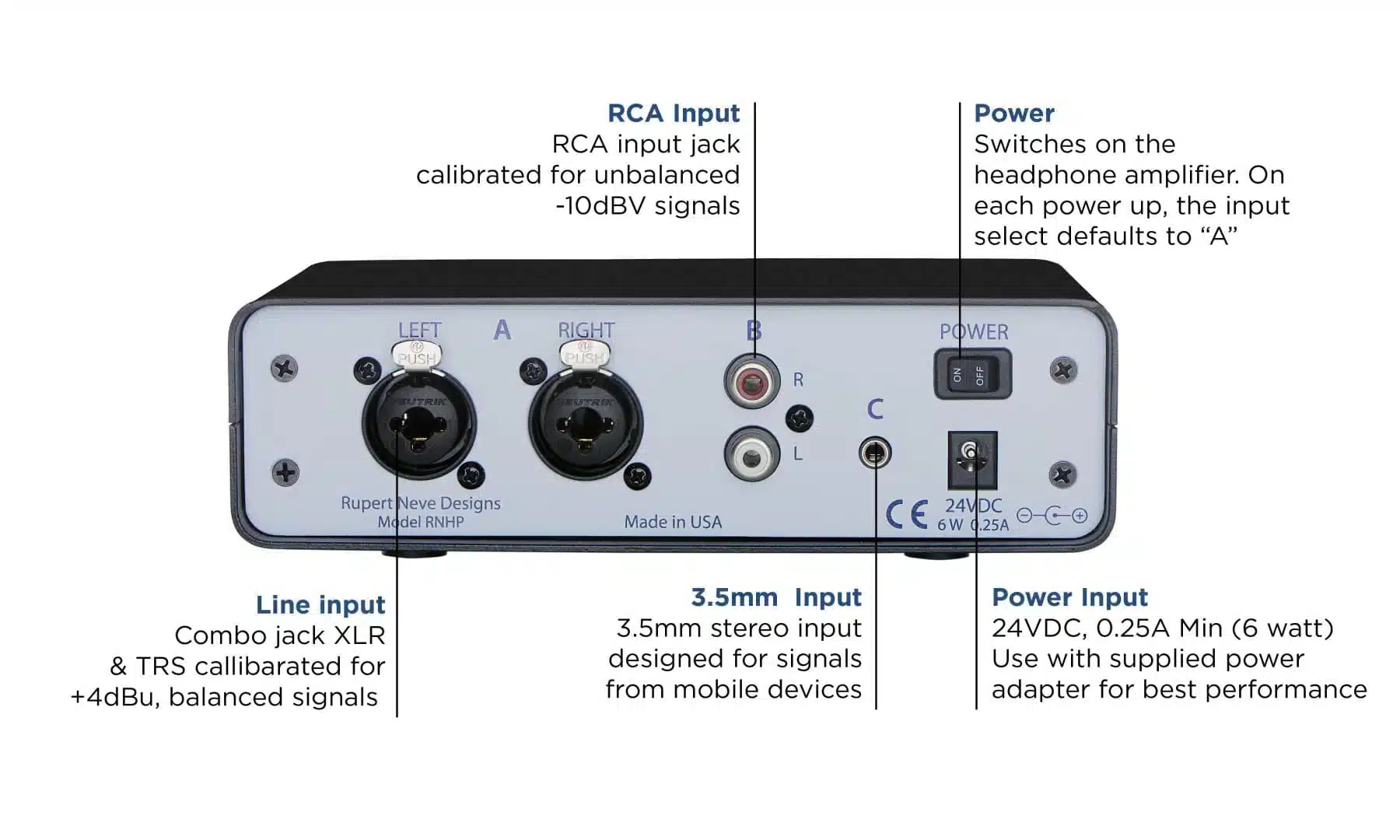

Maximum Input Levels “A” XLR I/P: +22.8 dBu @1kHz “B” RCA I/P: +14.7dBu @1kHz, “C” 3.5mm I/P: +3.3dBu @1kHz Output Power: As measured with typical headphones, Z=44 Ω: 3,617 VAC RMS @1kHz = 300mW RMS 16 Ω typical Load: 1,933 VAC RMS @1kHz = 230mW RMS 150 Ω typical Load: 5,108 VAC RMS @1kHz = 175mW RMS

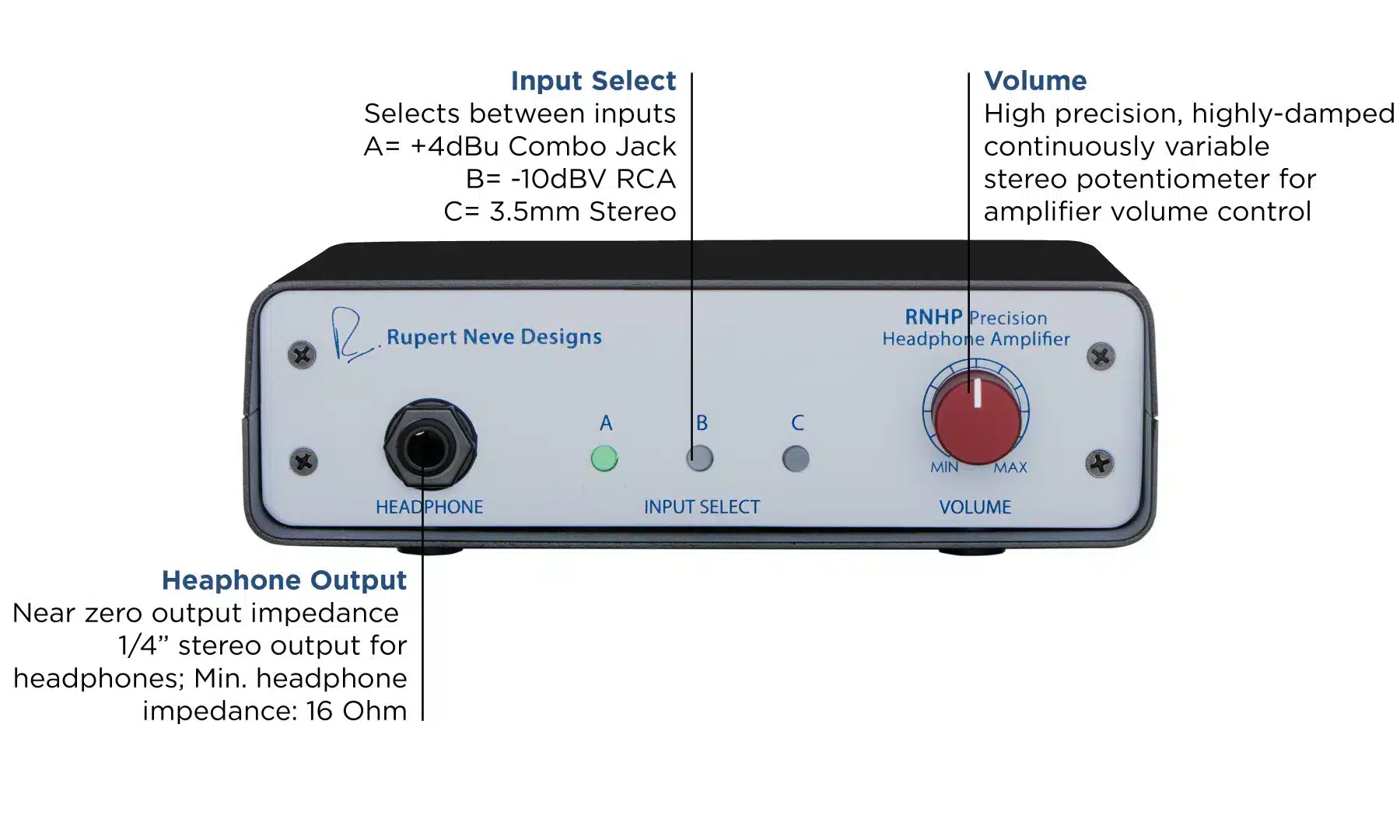

Output Impedance
.08 Ω @ 1KHz, 16-150 Ω load, 0dBu input
Frequency Response
+/- .2dB from 10Hz to 120KHz
Noise
Measured with typical headphones, Z=44 Ω, BW 22Hz – 22kHz “A” XLR Input: -101.9dBV, “B” RCA Input: -100.9dBV “C” 3.5mm Input: -88.8dBV
Dimensions
6.5” wide x 4.6” deep and 1.9” tall
Power Supply Requirements
24VDC @ 0.25Amp (6 watts) minimum. Use with supplied power adapter, as this has been carefully selected for best output power and noise performance. May be used with a properly configured 24V battery as well.
