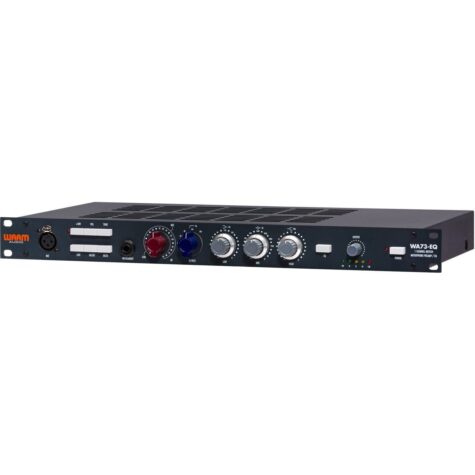

Warm Audio WA73-EQ

1-Channel Class-A British style 1073 Preamp with EQ

The classic “73 style” preamp can be heard on countless pop/rock recordings over the years and is the first choice for many recording engineers. The Warm Audio WA73 is equipped with UK custom designed Carnhill transformers, which are a large part of the typical sound of “73 style” preamps.

• SINGLE-CHANNEL, CLASS A, ’73-STYLE BRITISH MICROPHONE PREAMP WITH EQ
• UK MADE CARNHILL TRANSFORMERS
• UK MADE – BLORE EDWARDS EQ DUAL-CONCENTRIC SWITCH POTENTIOMETERS
• HAND WIRED, HAND ASSEMBLED
• 80DB OF GAIN – RESISTOR STEPPED GAIN SWITCH
• FULLY DISCRETE
• TONE BUTTON – CHANGES INPUT TRANSFORMER IMPEDANCE FOR VARYING TONE
• POLARITY SWITCH
• 48V PHANTOM POWER
• INDUCTOR BASED 3 BAND EQ
• LOW BAND BOOST/CUT – 35, 60, 110, 220 HZ
• MID BAND BOOST/CUT – 360, 700, 1600, 3200, 4800, 7200 HZ
• HIGH BAND BOOST/CUT – 10, 12, 16 KHZ
• ADDITIONAL HIGH BAND FREQUENCY EQ POINTS ADDED (COMPARED TO VINTAGE 1073)
• 4 POSITION INDUCTOR BASED HIPASS FILTER – 50, 80, 160, 300 HZ
• XLR MIC INPUTS (FRONT & BACK)
• LINE LEVEL TRS INPUT
• TS SEND/RECEIVE INSERT JACKS
• XLR & TRS LINE LEVEL OUTPUTS
• DIRECT IN, INSTRUMENT INPUT
• OUTPUT CONTROL
• LED LEVEL INDICATION
• FREQ RESPONSE 20HZ – 20KHZ +/-.5 DB
