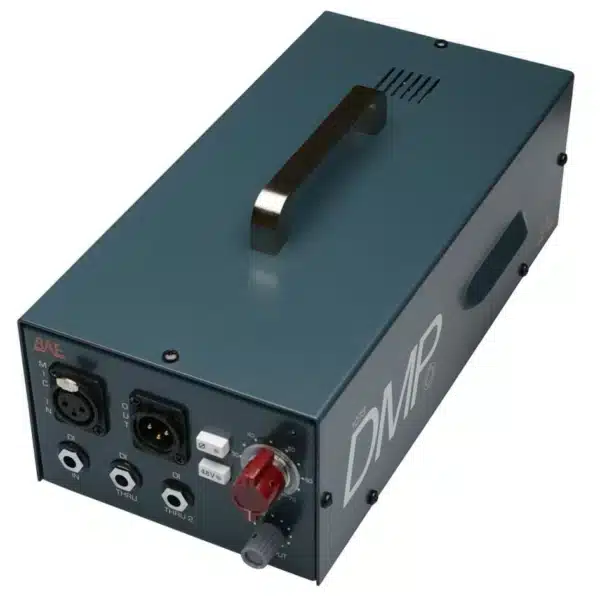

BAE DMP Dual 1073 Desktop Mic Pre

The first portable 1073 Mic Pre, the 1073 DMP, is equipped with the same preamp and the same Carnhill (St Ives) transformers as the 1073 and 1084. All units come standard with the ‘Bootsy Collins mod,’ which includes a Jensen DI transformer to add high-impedance DI to the 1073 DMP. The 1073 DMP features a built-in PSU and the same hand-wired modular design that BAE is known for. The 1073 is a popular little box, as evidenced by the long list of renowned artists who use it, including Slash, Vance Powell, Chris ‘Frenchie’ Smith, Timo Kielnecker (G Love), Chris Chaney (Alanis Morissette, Jane’s Addiction), Warren Haynes, Bootsy Collins, Snoop Dogg, Matt Sorum, Huw Williams, Dave Weiner, Derek Trucks, Oteil Burbridge, Jackie Greene, The Chris Robinson Brotherhood, Charles Twilling, Bobby Vega, and Rafael Moreira. Specifications:

• Built in PSU for extra portability.
• DI in and DI through.
• 48v for phantom power.
• Solid steel chassis.
• Same hand-wired modular design that BAE is known for

Features

• Frequency Response
• 10Hz to -3dB at 55kHz
• Mic Pre Input Impedance
• ≅1200 ohms
• DI Input Impedance
• ≅150k ohms
• Output Impedance
• 65 ohms
• Common Mode Rejection Ratio
• 100dB min @ 60Hz
• Maximum Output Level
• +27.4 dBu @ 600Ω
• Power Requirements
• 115/230 VAC, 28W
• Gain Voltage
• 0 to 33.4 Volts
• Gain dB
• 0 to 71 dB
• Equivalent Input Noise
• -110 dBu; Unweighted 300kHz Bandwidth
• Weight
• 7.3 LBS/3.31 KG
