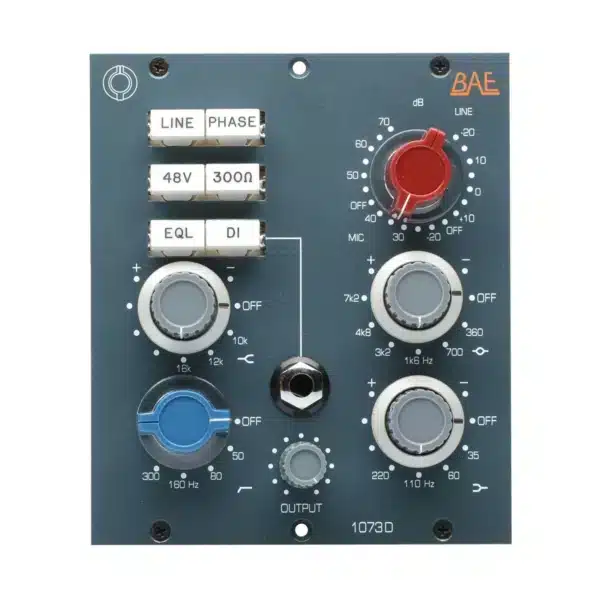

BAE 1073D 500-series Mic Pre/EQ

The 1073 is the most legendary and beloved microphone preamp/EQ, and for good reason. Its origins date back to the early 1970s when Rupert Neve, in many people’s opinion, invented the ‘holy grail’ of  recording with his 1073 preamp/EQ.

The BAE 1073D (Deluxe) is essentially a 1073 in 500 Series format , as authentic and true to the original as possible when made for the 500 Series format. It uses the same St Ives (Carnhill) transformers as the originals, Elma switches, and Canford wire—this is the real deal.

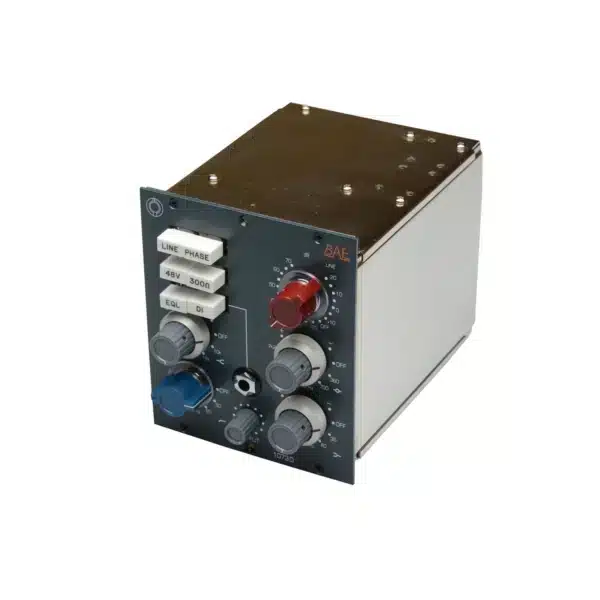

To accommodate all the components without compromising, a 3-space chassis is used.

Specifications

• High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
• Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz 220Hz
• Mid Range: +/-18dB peaking, fixed ‘Q’ with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz 7.2kHz
• High Pass Filter: 50Hz, 80Hz, 160Hz 300Hz
• Phase Button: 180°
