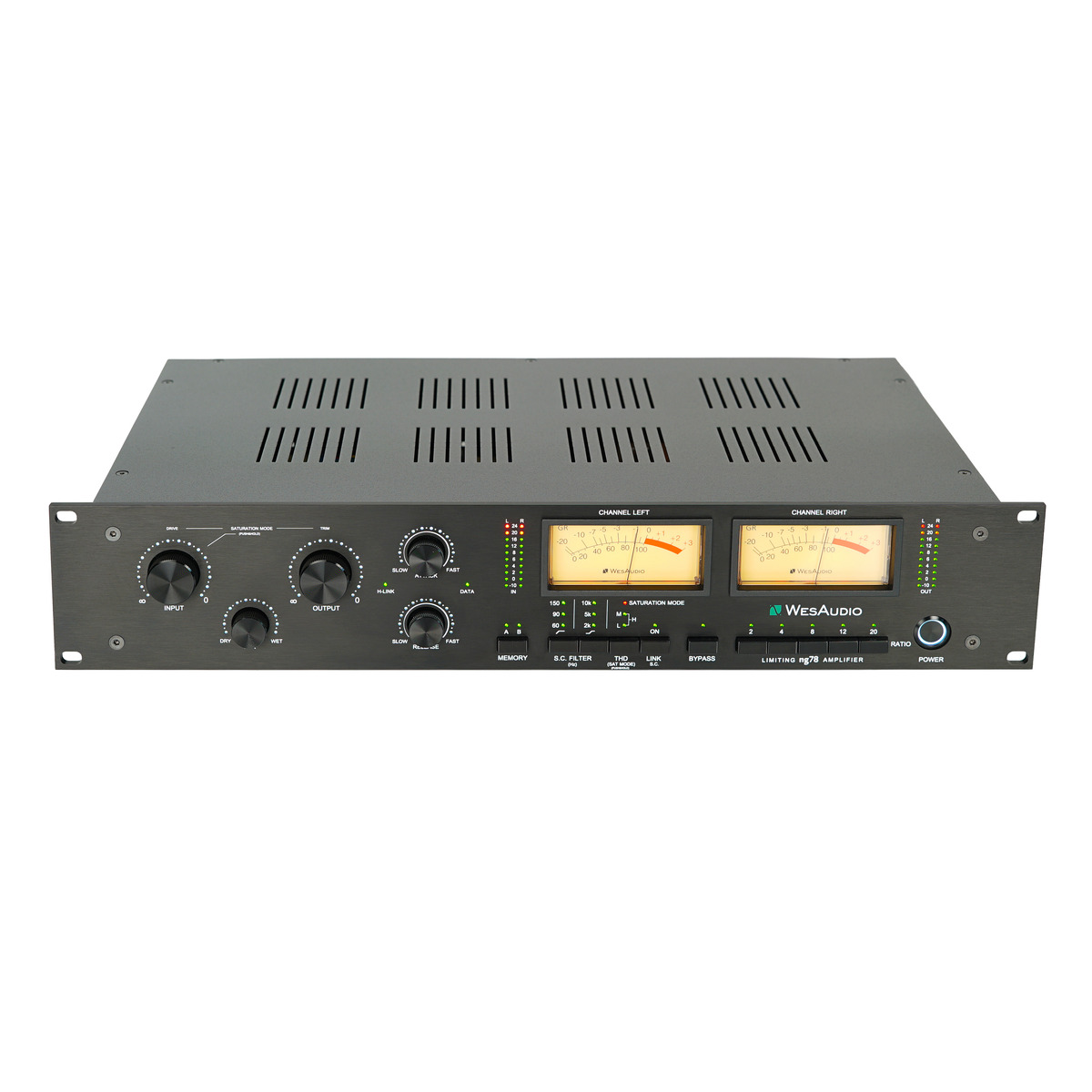

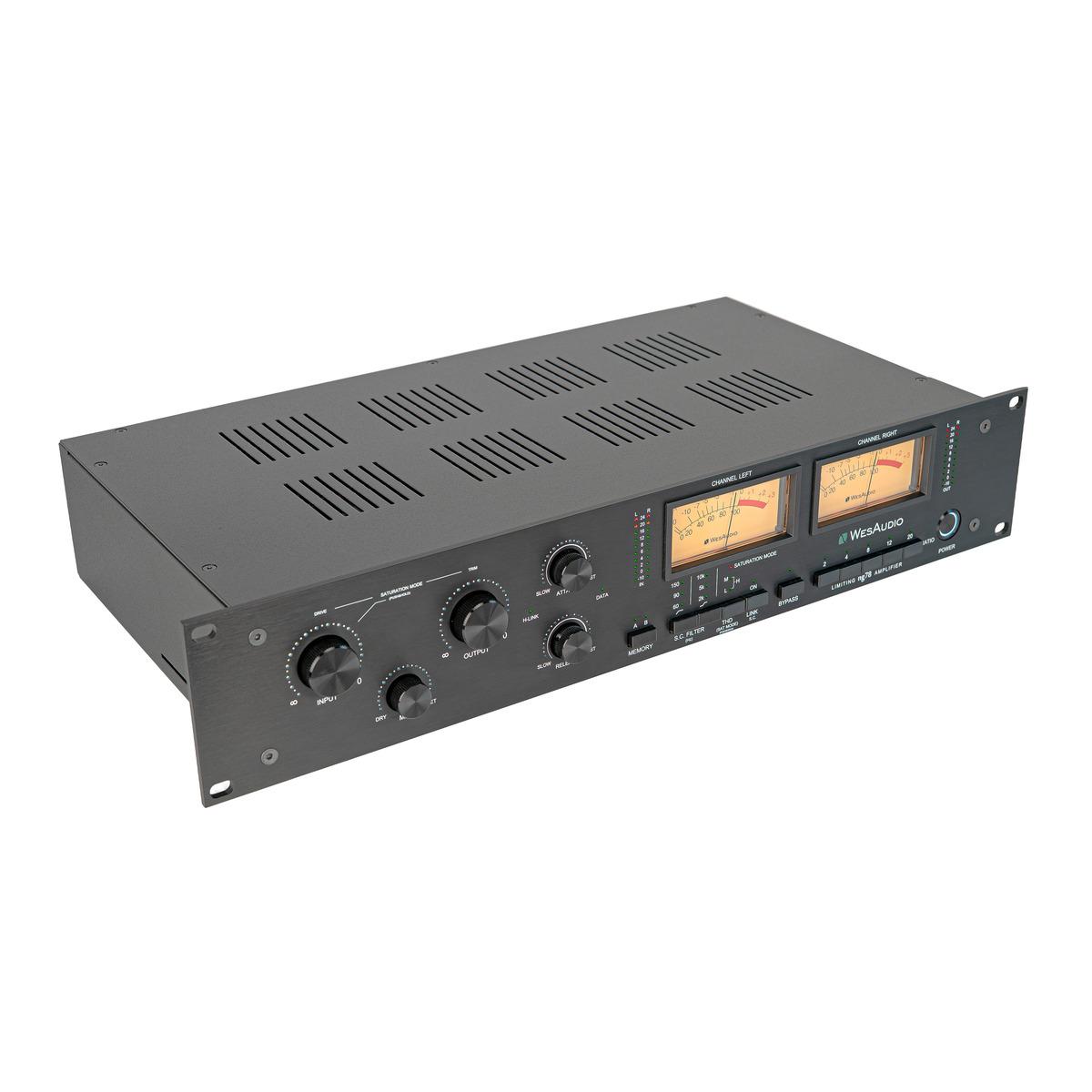

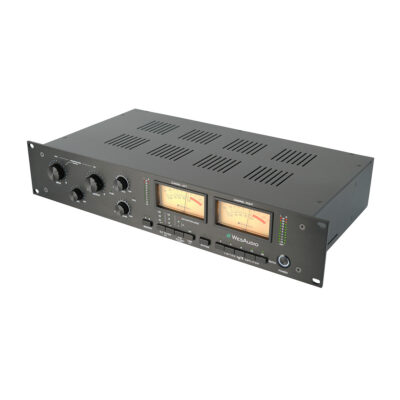

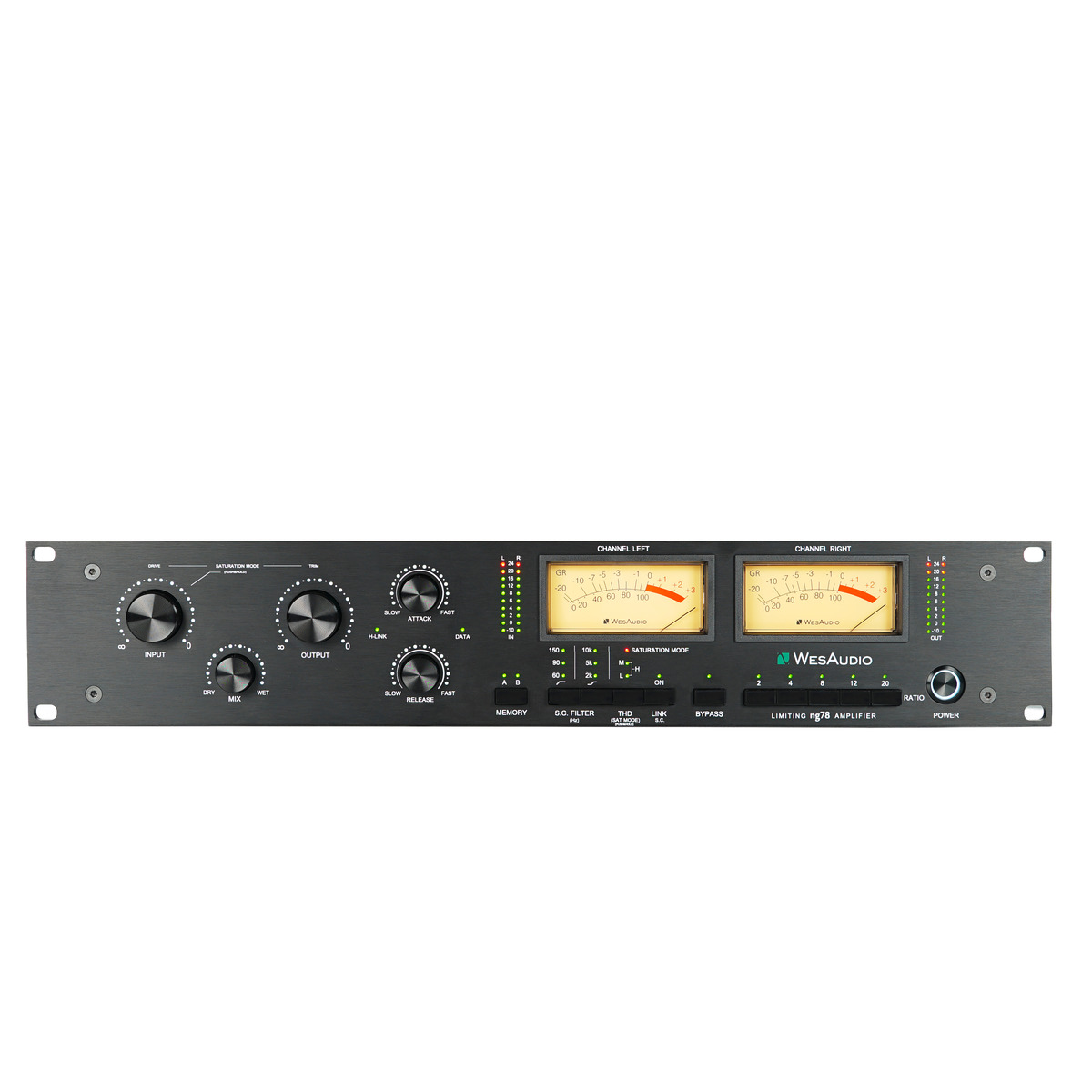

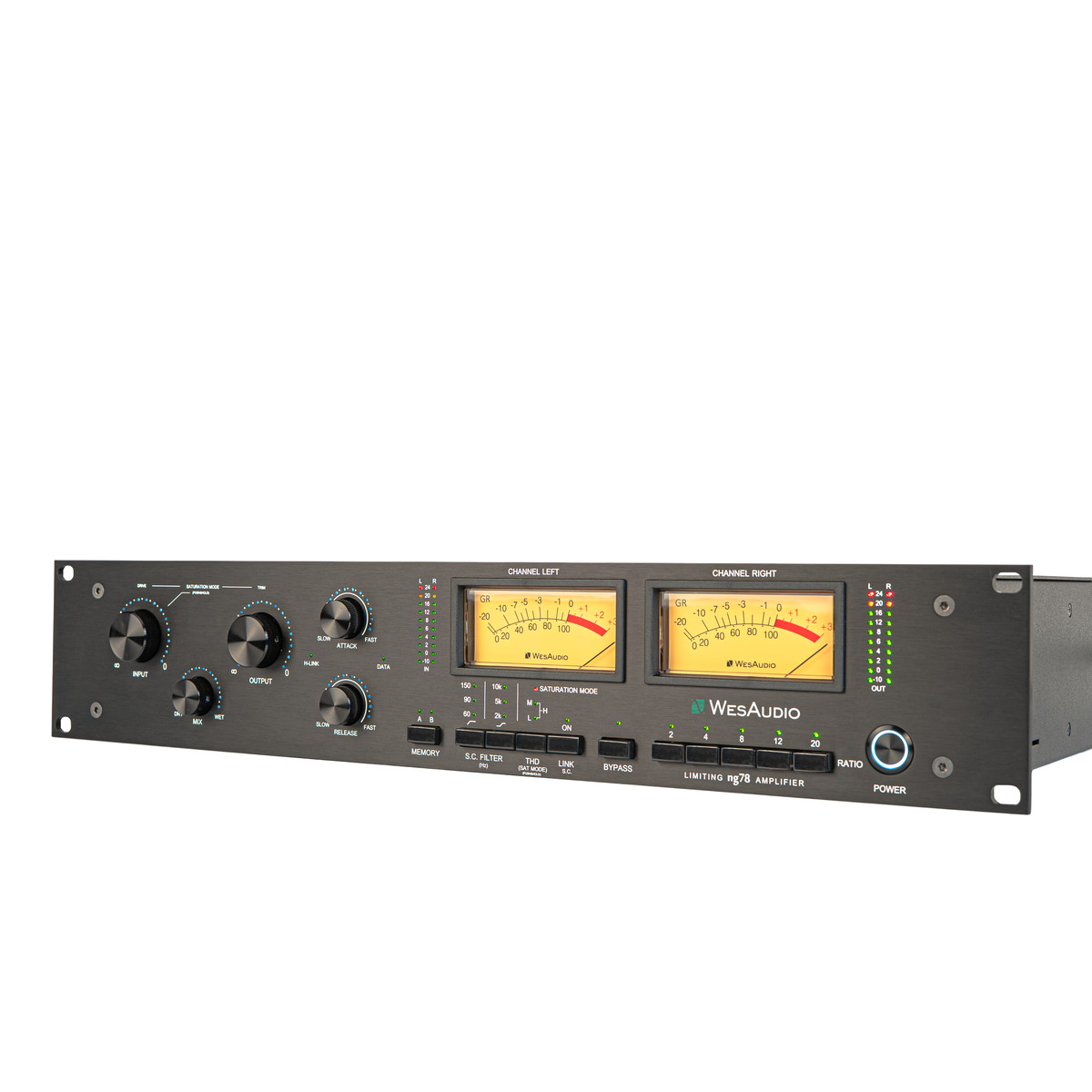

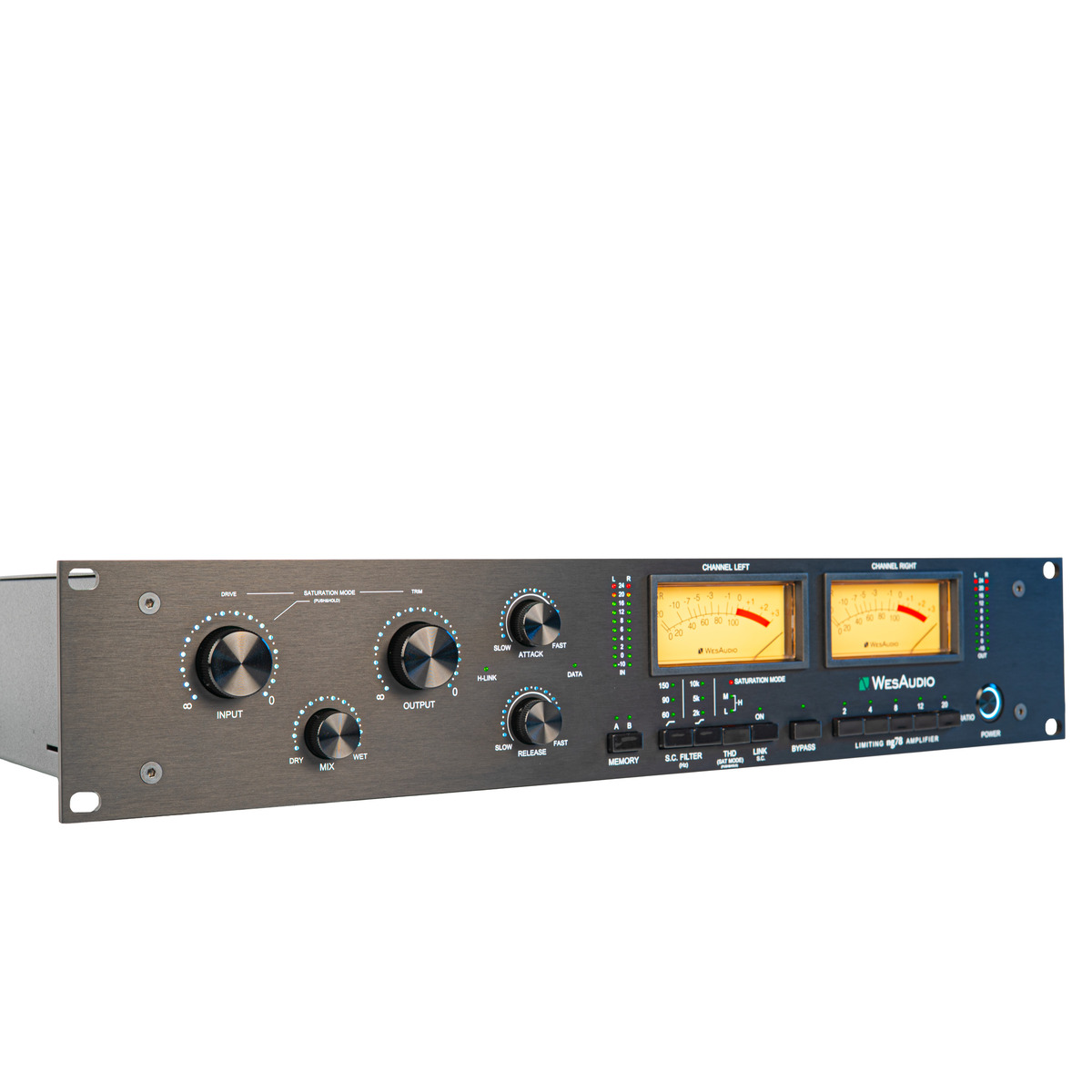

WesAudio ng78 FET Compressor - Next-Generation Stereo FET Dynamics Processor
The WesAudio ng78 FET Compressor is a premium dual-channel stereo FET compressor that merges classic analogue tone with modern digital workflow.
Featuring a 100% analogue signal path with full digital recall and DAW integration, the ng78 delivers the legendary character of vintage FET compression combined with cutting-edge hybrid studio control.
With selectable ratios, variable attack and release times, Carnhill transformer outputs, and built-in saturation control, this compressor offers unmatched versatility for both tracking and mixing engineers.
Key Features
- 100% analogue stereo FET compressor with digitally controlled parameters and total recall.
- +24 dBu headroom for professional-grade signal handling.
- Five selectable ratios: 2:1, 4:1, 8:1, 12:1, 20:1 (including “All Buttons” mode).
- Wide attack range from 20 µs to 20 ms for fine transient control.
- Dedicated MIX knob enables built-in parallel compression without external routing.
- Carnhill transformer output stage adds harmonic depth and analogue weight.
- Saturation mode with THD control (Low / Mid / High) for tone colouring or soft clipping.
- Advanced side-chain filters including HPF at 60 / 90 / 150 Hz and high-shelf at 2 / 5 / 10 kHz.
- Dynamic Link Technology ensures perfect stereo image and compression consistency.
- Hardware A/B comparison function allows instant switching between two parameter states.

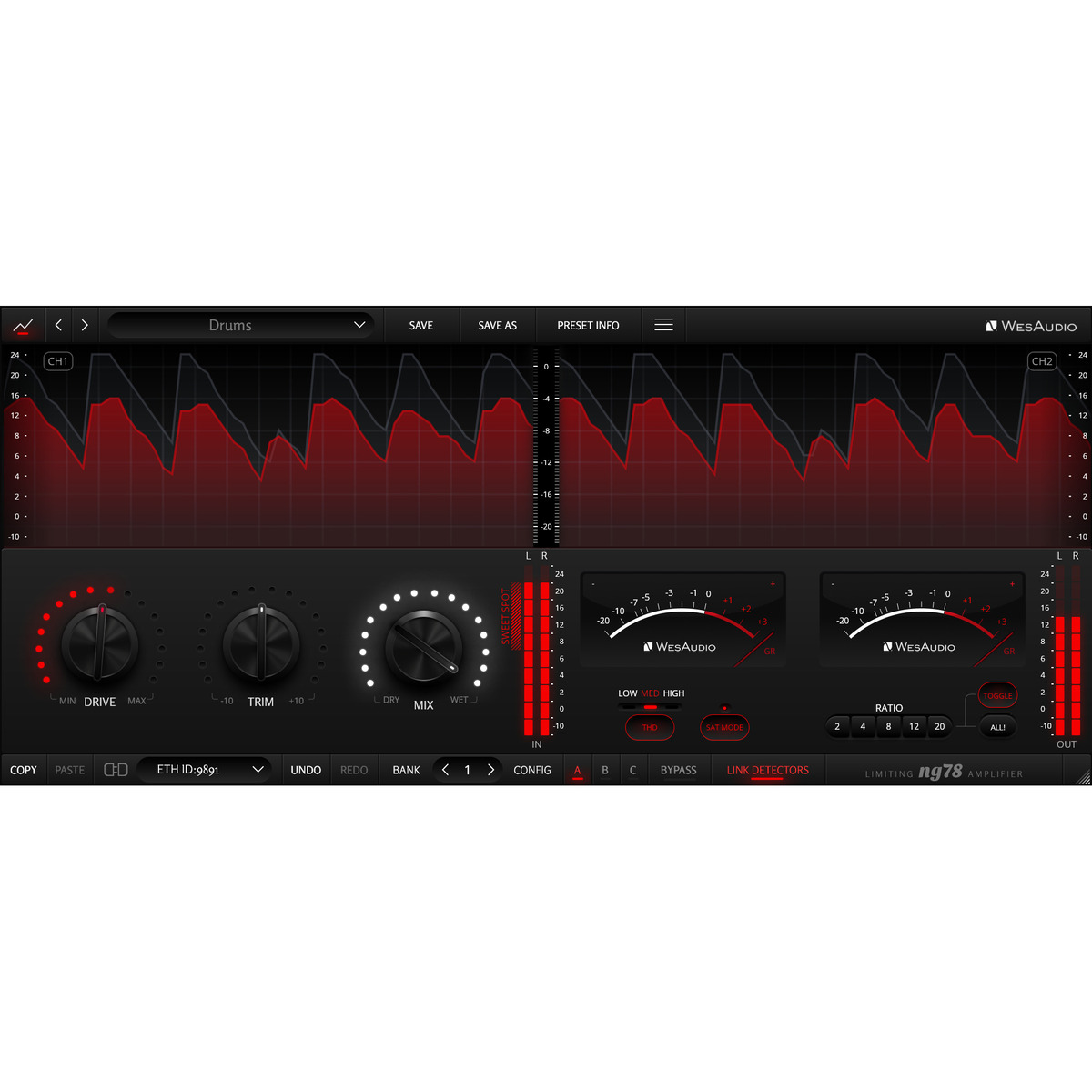

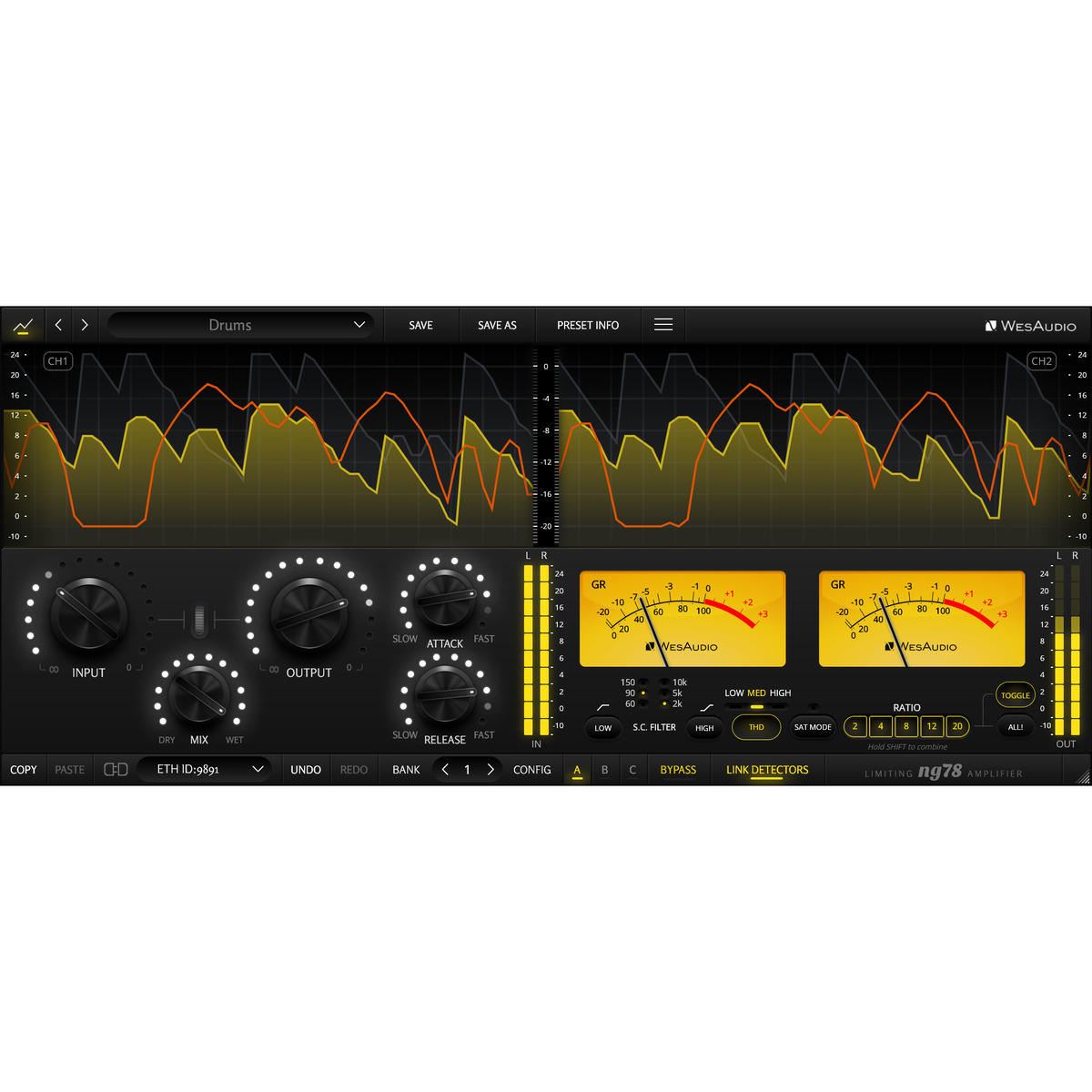

- USB and Ethernet connectivity for seamless DAW plug-in control and total session recall.
Applications
- Mix Bus Compression: Add punch, cohesion, and warmth to your stereo mixes.
- Vocals and Instruments: Smooth dynamics while maintaining detail and presence.
- Drums and Percussion: Capture fast transients and control peaks for modern punchy tones.
- Parallel Compression: Use the built-in mix knob to blend compressed and dry signals.
- Sound Design: Apply saturation and tone-shaping for creative colour and texture.
Technical Specifications
| Type | Stereo FET Compressor (Dual Channel) |
|---|---|
| Signal Path | 100% Analogue, digitally controlled |
| Headroom | +24 dBu |
| Compression Ratios | 2:1, 4:1, 8:1, 12:1, 20:1 (+ All Buttons mode) |
| Attack Time | 20 µs - 20 ms |
| Release Time | 50 ms - 1,100 ms |
| Side-chain Filters | HPF: 60 / 90 / 150 Hz, High-shelf: 2 / 5 / 10 kHz |
| Frequency Response | 20 Hz - 20 kHz (±1 dB) |
| Signal-to-Noise Ratio | > 83 dB |
| Output Impedance | 50 Ω |
| Form Factor | 2U rackmount (19″ width × 88 mm height × 235 mm depth) |
| Power Consumption | 14 W |
| Weight | Approx. 7 kg |

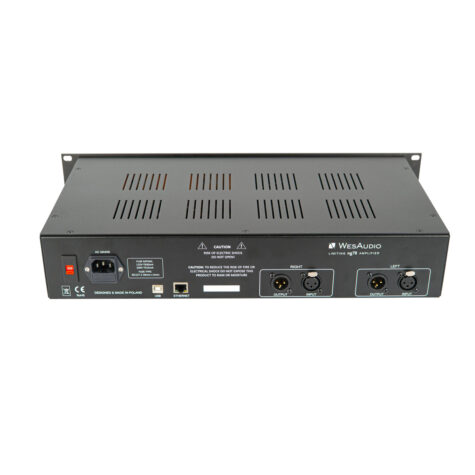

| Connectivity | 2 × XLR inputs, 2 × XLR outputs, USB-B, RJ45 Ethernet |
Why Choose the WesAudio ng78 FET Compressor?
The WesAudio ng78 represents the next generation of analogue FET compression, blending the power of modern automation with the sonic integrity of classic analogue hardware.
Whether used on mix bus, vocals, or drums, it delivers the unmistakable energy and punch of a classic 1176-style compressor - with the added precision, recall, and flexibility of digital control.
For hybrid studios seeking the perfect balance between analogue warmth and DAW-based workflow efficiency, the ng78 is a truly future-proof dynamics processor.
