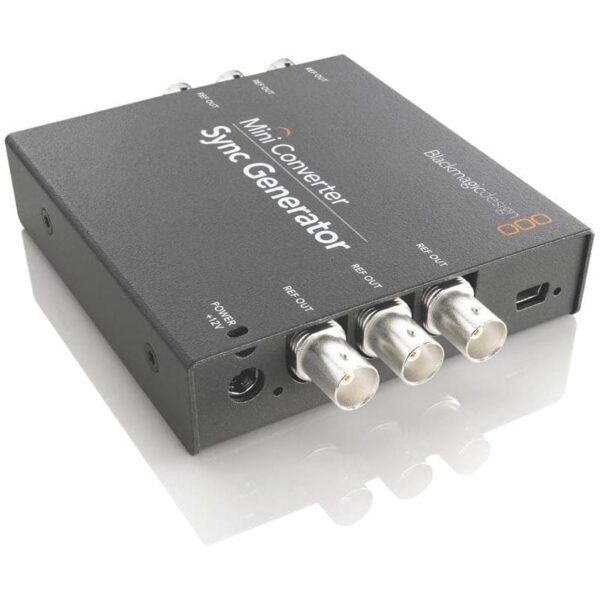

Blackmagic Mini Converter - Sync Generator
The Blackmagic Mini Converter Sync Generator is a compact, reliable solution for generating industry-standard video reference signals, ideal for synchronising SDI video equipment in broadcast and professional AV environments. It outputs Six stable reference signals simultaneously and supports blackburst in SD and tri-sync in HD, ensuring smooth, jitter-free video switching and capture.
Whether you're running a live production, broadcast studio, or post-production facility, the Sync Generator provides the essential video timing required for system stability. It features a high-precision crystal oscillator to maintain consistent sync accuracy and is compatible with all standard SD and HD video formats.
Key Features:
- Generates reference sync signals for professional video systems
- Outputs 6 x reference outputs simultaneously
- Supports blackburst (SD) and tri-sync (HD) timing
- Automatic format switching based on user selection
- Ultra-stable crystal oscillator for high accuracy
- Compact, rugged metal design for rack or field use
- Includes 12V universal power supply with locking connector
Technical Specifications:
- Reference Outputs: 6 x BNC
- Reference Formats: Blackburst (SD), Tri-Level Sync (HD)
- Video Standards: 525i59.94 NTSC, 625i50 PAL, HD formats up to 1080p
- Sync Precision: < ± 0.2 ppm via high-stability crystal oscillator
- Reclocking: Not required (no input signals)
- Settings Control: Mini switches for easy format selection
- Power Supply: 12V DC (locking connector, PSU included)
- Dimensions: 112 x 92 x 25 mm
- Weight: Approx. 300 g
Ideal For:
The Blackmagic Sync Generator is the perfect timing hub for live video switchers, capture systems, routers, and video servers. Ensure consistent signal synchronisation across all devices and eliminate timing issues in complex SDI-based setups.
Reliable, compact, and accurate - the Blackmagic Mini Converter Sync Generator is an essential tool in any professional video system.
