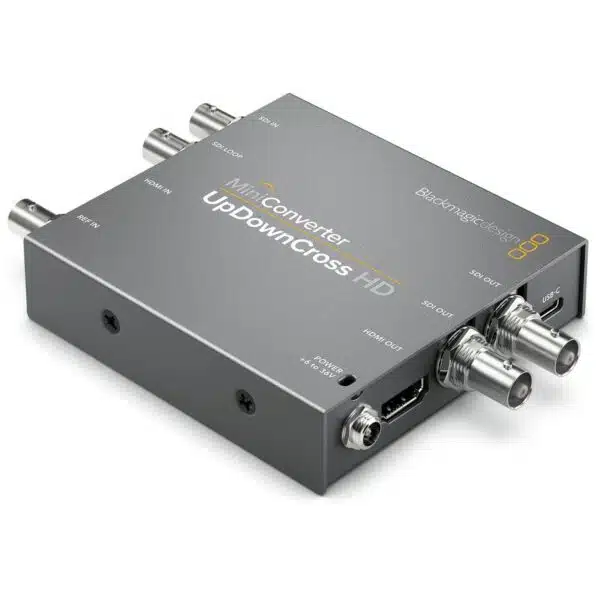

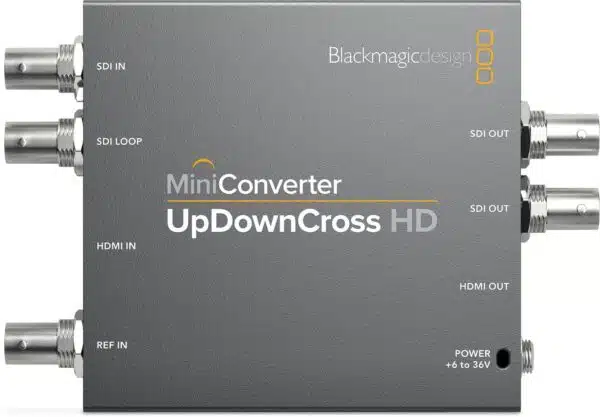

Blackmagic Mini Converter - UpDownCross HD
The Blackmagic Mini Converter UpDownCross HD is a compact and powerful broadcast-quality standards converter that allows you to convert any SD or HD video format to any other SD or HD format via SDI, HDMI, or analogue video connections. Whether you're working with mismatched video formats or need to integrate various equipment into a single workflow, this versatile converter ensures smooth and accurate conversions with ultra-low latency.
Built with Teranex-quality algorithms, the UpDownCross HD offers superior scaling and de-interlacing, making it ideal for live production, AV installations, and broadcast environments. It supports full 10-bit processing and includes both reference input for timing synchronisation and AES/EBU audio support for professional applications.
Key Features:
- Up/down/cross conversion between all SD and HD formats up to 1080p60
- SDI, HDMI, and analogue video inputs and outputs
- Full 10-bit image processing with low latency
- Built-in reference input for blackburst or tri-sync
- SDI reclocking and timecode support
- Balanced analogue and AES/EBU digital audio inputs
- Includes 12V universal power supply with locking connector
Technical Specifications:
- Video Inputs: 1 x SDI, 1 x HDMI, 1 x Analogue (CVBS or YPbPr)
- Video Outputs: 2 x SDI, 1 x HDMI, 1 x Analogue (selectable)
- Supported Formats: 525i, 625i, 720p50/60, 1080i50/60, 1080p23.98/24/25/30/50/60
- Audio Inputs: 2 x AES/EBU, 2 x Analogue (balanced 1/4″ jack)
- Audio Outputs: Embedded in SDI and HDMI
- Processing: 10-bit up, down, and cross conversion
- Reference Input: Tri-level sync or blackburst
- Power Supply: 12V DC (locking connector, PSU included)
- Dimensions: 112 x 92 x 25 mm
- Weight: Approx. 300 g
Ideal For:
The UpDownCross HD is perfect for broadcasters, event AV teams, post-production professionals, and anyone needing reliable, high-quality video format conversion. Its compact design and robust feature set make it a go-to tool for on-the-fly format matching and signal integration.
Upgrade your signal workflow with the reliable and flexible Blackmagic Mini Converter UpDownCross HD - built for real-world professional environments.
