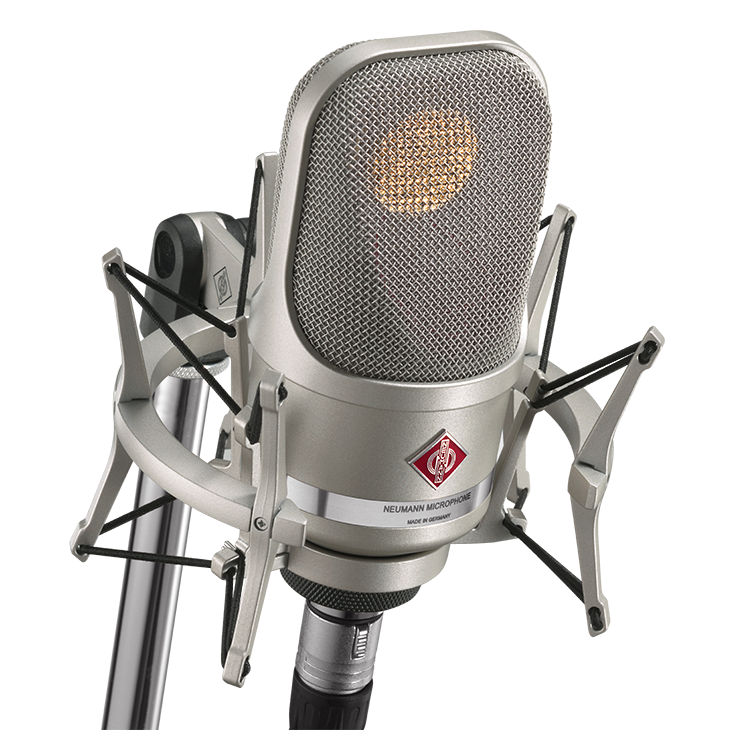

Neumann TLM 107 Studio Set
The Neumann TLM 107 Studio Set is a state-of-the-art multi-pattern large-diaphragm condenser microphone designed for professional recording, mixing, and broadcast applications. Combining Neumann’s legendary sound engineering with cutting-edge technology, the TLM 107 offers exceptional versatility, ultra-low noise, and transparent sound for every studio environment. This studio set includes the TLM 107 microphone and the EA 4 shock mount for advanced vibration isolation and secure placement.
Equipped with five selectable polar patterns — omni, wide cardioid, cardioid, hypercardioid, and figure-8 — the TLM 107 adapts easily to a wide range of recording situations. Whether you’re capturing vocals, acoustic instruments, or entire ensembles, it delivers detailed and balanced sound with precision and depth. Its transformerless circuit design ensures distortion-free performance even at high sound pressure levels up to 141 dB, while maintaining an impressively low self-noise of just 10 dB-A.
The TLM 107’s intuitive navigation switch and LED indicators allow effortless control of polar patterns, pad, and low-cut settings directly on the microphone. Crafted with meticulous German engineering, it embodies Neumann’s commitment to excellence, reliability, and sonic precision — making it a true reference microphone for modern recording studios.
Features
- Multi-pattern large-diaphragm condenser microphone (5 selectable patterns)
- Omni, wide cardioid, cardioid, hypercardioid, and figure-8 polar patterns
- Exceptionally low self-noise (10 dB-A)
- Handles sound pressure levels up to 141 dB
- Transformerless circuitry for maximum signal transparency
- Switchable low-cut and -10 dB pad options
- LED indicators for easy operation
- Includes EA 4 shock mount for vibration isolation
- Made in Germany
Applications
- Professional studio recording
- Vocal, instrument, and orchestral recording
- Voiceover and broadcast production
- Stereo and ambient recording setups
Included
- Neumann TLM 107 microphone
- EA 4 elastic shock mount
- Documentation
Technical Specifications
- Acoustic Operating Principle: Pressure gradient transducer
- Transducer Type: Condenser, dual large diaphragm
- Polar Patterns: Omni, Wide Cardioid, Cardioid, Hypercardioid, Figure-8
- Frequency Range: 20 Hz - 20 kHz
- Sensitivity: 20 mV/Pa
- Rated Impedance: 50 Ω
- Load Impedance: ≥ 1 kΩ
- Maximum SPL: 141 dB (0 dB pad)
- Equivalent Noise Level: 10 dB-A
- Dynamic Range: 131 dB
- Low Cut: 40 Hz / 100 Hz (selectable)
- Pad: 0 dB / -10 dB
- Supply Voltage: 48 V ± 4 V (P48, IEC 61938)
- Connector: XLR 3F
- Dimensions: Ø 78 mm × 166 mm
- Weight: approx. 445 g
- Finish: Nickel or Black (depending on version)
- Made in Germany
