Telefunken TF17 Stereo Set

The TF17 Stereo Set is designed for high fidelity stereo or dual mono recording in the studio or on stage.
Combining an iconic “German” inspired mid-forward character with modern FET technology, the TF17 features an extended low frequency response, bold midrange and smooth top end with a fast transient response, high SPL handling, and low self-noise.
When used in stereo, the TF17 provides a rich and focused sound stage.

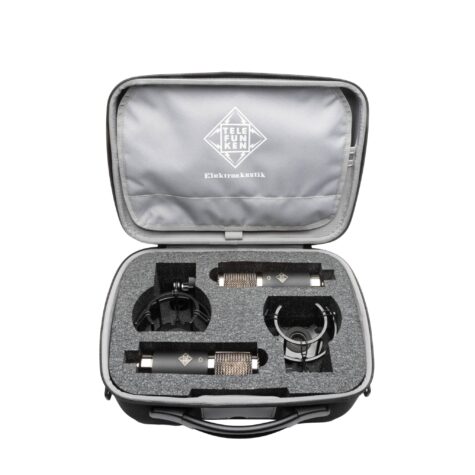

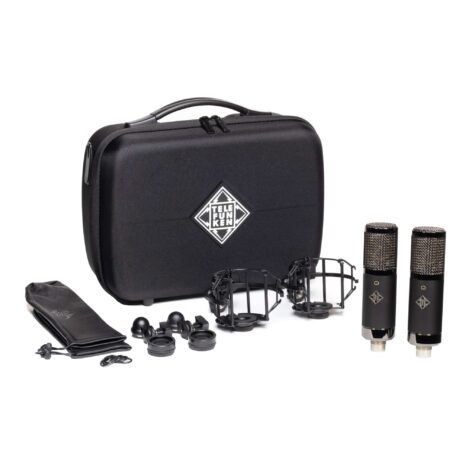

Featuring a matched pair of TF17 microphones, this set is ideal for drums and percussion, piano, and vocal or brass ensembles.
Each microphone features a K47-style center terminated capsule, precision through-hole components and a discrete, hand-tuned JFET amplifier.
The capsules and amplifiers are frequency, gain and noise matched.
All TF17 Stereo Sets are assembled, matched, and tested in the USA. Specifications: Polar Pattern: Cardioid Frequency Range: 20 Hz – 20 kHz, ±3 dB Capsule: TK47S – Center Terminated Large Diaphragm, Single Membrane Amplifier Type: Transistor (+48V phantom power required) Transformer: OEP/Carnhill T217 Sensitivity: 12 mV/Pa, ±1 dB THD at 1 kHz at 1 Pa (Amplifier): 0.01% Output Impedance: < 200 Ω Maximum SPL (for 1% THD): > 135 dB S/N Ratio: 91 dBA Self-Noise (Amplifier): 3 dBA Dimensions: 175 mm L x 46 mm Dia Weight: 545 g
