Telefunken TF47

A modern classic
The Telefunken TF47 is a fantastic high-end tube microphone designed as a combination of the legendary M49 and U47/48 microphones. The result is a microphone that gives superior detail and fullness to the sound combined with the well-known “deliciousness” that only Telefunken has. Telefunken is well known for recreating the legendary microphones found in the company’s Diamond series, and the design philosophy has been carried over to the more affordable TF series of microphones, and uses some of the same parts as found in the large models. TF47 has, among other things, same BV8 transformer as U47/48 and NOS 5840W tube. The TF47’s character has made it known and loved in both large and small studios worldwide, and is perfect for modern production where the same one with a good preamp suits both vocal and instrument recordings.

Technical Specifications
Type Condenser Pressure Gradient

Capsule
TK47 Center Terminated Diaphragm
Tube Type
5840W (New Old Stock)
Transformer
Custom Wound TELEFUNKEN BV8
Polar Pattern
Cardioid, Omnidirectional, Figure-8
Frequency Range
20Hz – 20kHz
Sensitivity
22 mV/Pa
THD at 1kHZ at 1Pa (Amplifier)
< 0.3%
Output Impedance
< 300 Ω
Maximum SPL (for 1% THD)
125 dB
S/N Ratio
84 dBA
Self Noise (Amplifier)
10 dBA Dimensions/Size 200 mm L x 46 mm Dia

Weight
710 g
Current Draw from Mains
50mA
Power Supply
M 903 PSU – 7 Pin Female XLR Input, 3 Pin Male XLR Output, Polar Pattern Selector
Cable
M 803 – 7 Meter TELEFUNKEN Tube Microphone Cable, 7 Pin Male & Female XLRs Shock Mount M 703 – Shock Mount, M 782 – Stand Mount

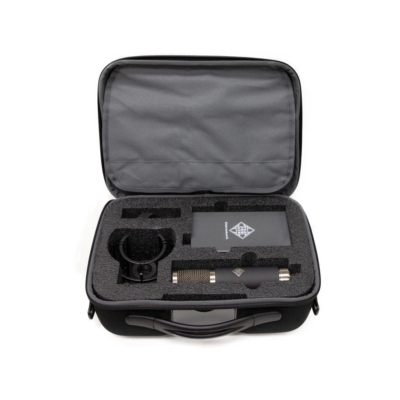

Flight Case
ZC03 – Light Weight Carrying Case
