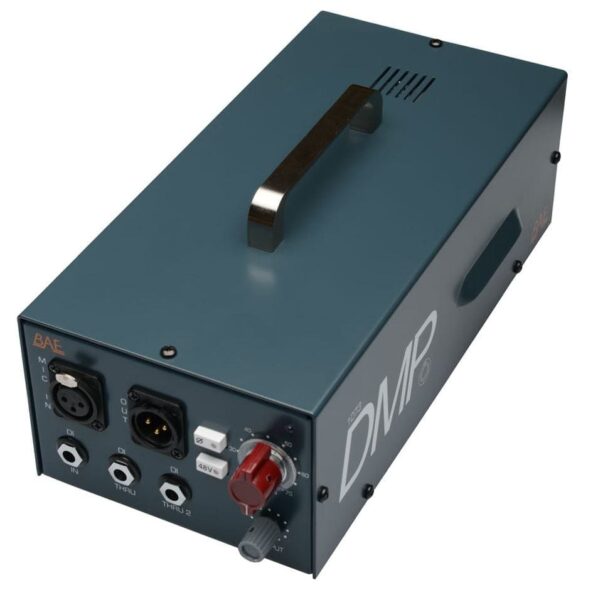

BAE DMP 1073 Desktop Mic Pre
The BAE DMP 1073 Desktop Mic Pre brings the unmistakable character of the classic 1073 microphone preamp to a compact, dual-channel desktop format. Designed and hand-built by BAE Audio, the DMP 1073 delivers the same Class A, transformer-balanced signal path found in BAE’s rack and console modules — with the convenience of a standalone desktop unit.
Each channel features a fully Class A topology with high-quality Carnhill input and output transformers, producing the signature 1073 sound: solid low end, forward and musical midrange, and smooth, harmonically rich highs. The DMP 1073 excels on vocals, guitars, bass, drums, and any source where depth, weight, and analog character are essential.
The front panel provides intuitive control with stepped gain, output trim, phantom power, phase reverse, and dedicated DI inputs for instruments. With two independent channels in a portable enclosure, the DMP 1073 is ideal for stereo recording, mobile rigs, and studios seeking classic tone without committing to a full rack system.
Features
- Dual-channel desktop microphone preamplifier
- Classic 1073-style Class A, transformer-balanced design
- Carnhill input and output transformers
- Stepped input gain control with output trim
- Front-panel DI inputs for instruments
- Phantom power and phase reverse per channel
- Independent controls for each channel
- Hand-built construction with premium components
Applications
- Studio vocal recording
- Electric and acoustic guitars
- Bass and DI instruments
- Drum overheads and percussion
- Stereo recording and mobile setups
Technical Specifications
- Type: Dual-channel microphone preamplifier
- Topology: Class A, transformer-balanced
- Input Transformers: Carnhill
- Output Transformers: Carnhill
- Gain Range: Up to approx. 70 dB
- Inputs: Mic (XLR), Instrument DI (front panel)
- Outputs: Balanced XLR
- Controls: Gain, Output Trim, Phase, Phantom Power
- Form Factor: Desktop
- Power Supply: External PSU
