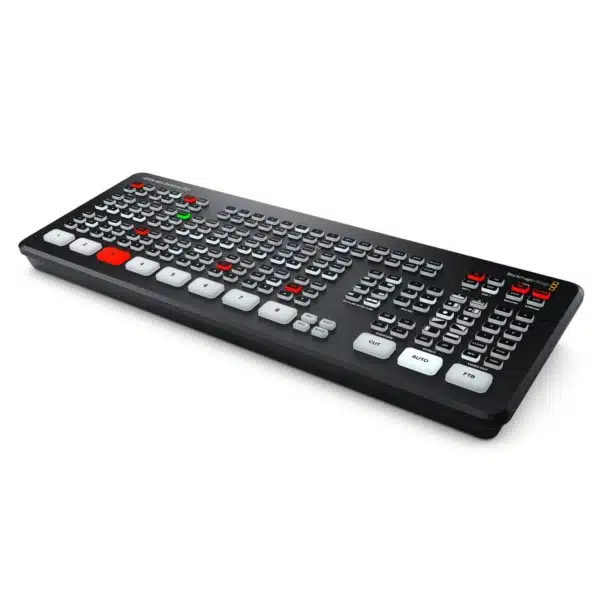

Blackmagic ATEM Mini Extreme ISO – Advanced Live Production Switcher with ISO Recording
The Blackmagic ATEM Mini Extreme ISO is a powerful, all-in-one live production switcher designed for multi-camera streaming, recording, and broadcast workflows. With support for up to 8 HDMI inputs, advanced audio mixing, built-in streaming, and ISO recording for all inputs, this switcher delivers professional results for live events, webinars, conferences, and content creation.
The “ISO” functionality sets this model apart: it allows you to record all 8 inputs as separate video files along with the program output, enabling high-quality post-production editing in DaVinci Resolve. A DaVinci Resolve project file is also saved automatically, making it easy to relink footage and fine-tune your final product.
The ATEM Mini Extreme ISO includes a full-featured control panel, two separate HDMI outputs, USB-C webcam output, multiview monitoring, advanced keyers, DVE transitions, SuperSource compositing engine, and support for live streaming via Ethernet or tethered smartphones.
Key Features:
- 8 HDMI inputs with support for 1080p60
- ISO recording of all inputs + program feed to USB drive
- Generates DaVinci Resolve project for post-production
- 2 HDMI outputs, USB-C webcam output, and Ethernet streaming
- 2 media players for still graphics and titles
- Multiview monitoring for all sources, preview, and program
- SuperSource with 4 PIP boxes and DVE effects
- 4 upstream chroma/luma keyers, 2 downstream keyers
- Fairlight audio mixer with EQ and dynamics on all channels
- Compact desktop design, ideal for portable production setups
Technical Specifications:
- Video Inputs: 8 x HDMI Type A (1080p60 max)
- Video Outputs: 2 x HDMI, 1 x USB-C (webcam), 1 x Ethernet
- Streaming: Built-in RTMP encoder for direct streaming
- Recording: ISO recording to external USB-C drives
- Multiview: HDMI output with customizable layout
- Audio: 2 x 3.5mm stereo mic inputs, embedded HDMI audio
- Audio Mixing: Fairlight mixer with 6-band EQ, limiter, compressor
- Control: Front panel, ATEM Software Control (Mac/PC), hardware panels
- Power: 12V DC power supply included
- Dimensions: 370 x 136 x 41 mm
Ideal For:
The ATEM Mini Extreme ISO is perfect for streamers, video producers, educators, live event broadcasters, and anyone who wants a professional, multi-camera streaming workflow with full post-production capabilities. With ISO recording and DaVinci Resolve integration, you gain both live and edited content effortlessly.
Get advanced live switching, streaming, and editing in one compact unit with the Blackmagic ATEM Mini Extreme ISO.
