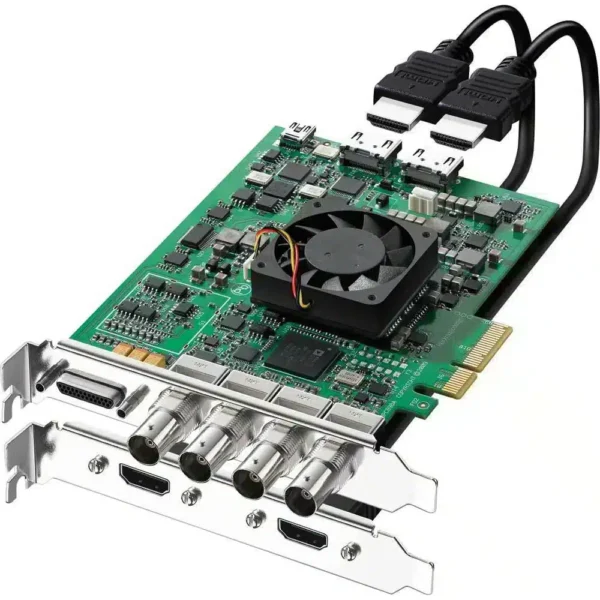

Blackmagic DeckLink 4K Extreme

DeckLink 4K Extreme features a high performance design for working in the highest
film quality! Get 4 times the resolution of 1080 HD with full Ultra HD 4K capture and
playback using 6G-SDI and HDMI 4K support. DeckLink 4K Extreme includes single
and dual channel SDI connections for both regular 2D and 3D stereoscopic
workflows as well as full resolution color RGB 4:4:4 capture and playback.

Includes dual link 6G-SDI, HDMI 3D/4K and analog component, composite, S-video
connections. Work in SD, HD and Ultra HD 4K. Also includes AES and analog
balanced audio, 16 channel SDI audio, genlock, deck control, broadcast quality up,
down and cross conversion, plus built in SD/HD internal keyer.

Blackmagic Design DeckLink 4K Extreme Features

• PCIe I/O card compatible with Mac, Windows, and Linux based workstations and servers
• DCI 4K, 4:2:2, or UHD 4K, YUV, 4:2:2 by single-link 6G-SDI
• DCI 4K, 4:2:2 by HDMI
• 1080p, RGB, 4:4:4 by single-link 3G-SDI
• 1080p, 4:2:2 by single-link HD-SDI
• 1080p, 4:4:4 by dual-link HD-SDI
• Dual-channel 2D/3D stereoscopic by SDI
• Component, Composite, S-Video, XLR, RS-422, and genlock on an included breakout cable
• Internal SD/HD keyer
• Broadcast-quality up/down/cross conversion
