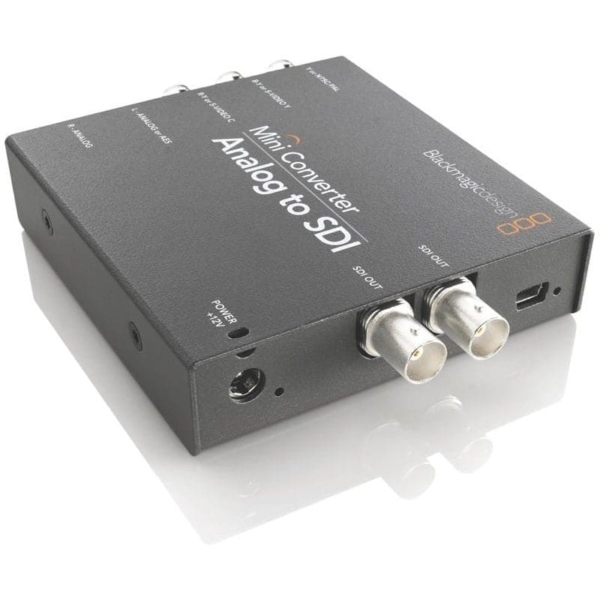

Blackmagic Mini Converter – Analog to SDI 2
The Blackmagic Mini Converter Analog to SDI 2 is a compact and professional-grade signal converter that transforms analog video signals into broadcast-quality SDI output. Perfect for integrating legacy analog equipment into modern SDI workflows, it supports a wide range of analog formats and converts to SD, HD, and 3G-SDI formats with full 10-bit video processing for superior image quality.
This versatile converter accepts component, composite, and S-video signals and embeds up to two channels of analog audio or four channels of AES/EBU digital audio into the SDI stream. Whether you’re digitizing archival footage or bridging analog sources in live production, the Analog to SDI 2 offers stable and reliable performance in any professional video environment.
Key Features:
- Converts analog video to 3G/HD/SD-SDI output
- Supports component, composite, and S-video input
- Embedded audio: 2-channel analog or 4-channel AES/EBU
- Full 10-bit video processing for maximum image quality
- Auto-detection of video standard with format matching
- SDI reclocking for improved signal integrity
- Compact metal housing – ideal for studio or field use
- Includes 12V universal power supply with locking connector
Technical Specifications:
- Video Inputs: 1 x component, 1 x composite, 1 x S-video (Y/C via mini DIN)
- Audio Inputs: 2 x analog audio (1/4″ jack), 4 x AES/EBU digital audio
- SDI Outputs: 2 x SDI (3G/HD/SD auto-switching)
- Supported Formats: NTSC, PAL, 720p, 1080i, 1080p up to 60 fps
- SDI Compliance: SMPTE 259M, 292M, 296M, 424M
- Power Supply: 12V DC (included with locking connector)
- Dimensions: 112 x 92 x 25 mm
- Weight: Approx. 300 g
Ideal For:
The Blackmagic Mini Converter Analog to SDI 2 is ideal for professionals who need to bridge analog legacy gear with modern SDI infrastructure. Whether used in broadcast studios, live event rigs, AV installations, or archival workflows, it delivers dependable, high-quality signal conversion in a robust, compact form factor.
Bring your analog signals into the digital broadcast world with the Blackmagic Analog to SDI 2 – a reliable and essential tool for any professional video setup.
