Blackmagic Mini Converter – SDI to Analog

Brand: Blackmagic

Blackmagic Mini Converter - SDI to Analog

1.639,00 kr. (1.311,20 kr. ex. moms)

På fjernlager ✔️

Forventet leveringsdato: 16/02/2026
Set en bedre pris – bed os om at prismatche
Varenummer (SKU): 360242 Kategori: Varemærke:

Blackmagic Mini Converter – SDI to Analog

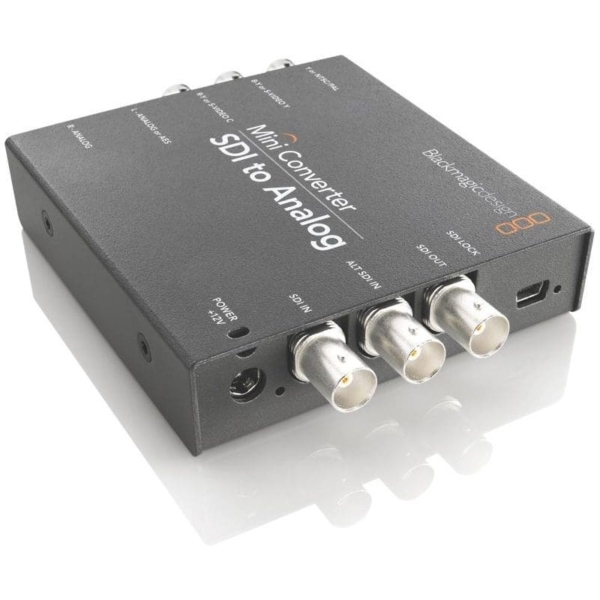

The Blackmagic Mini Converter SDI to Analog is a professional-grade video converter that transforms SD, HD, or 3G-SDI signals into analog formats for seamless integration with legacy equipment. Ideal for broadcasters, post-production facilities, and AV professionals, this compact unit allows you to output component, composite, or S-video signals from any SDI source.

Featuring 10-bit high-quality processing and support for a wide range of SD and HD formats up to 1080p60, the converter ensures accurate color reproduction and low-latency signal conversion. It also includes balanced analog or AES/EBU digital audio outputs, making it a versatile solution for bridging digital workflows with analog infrastructure.

Key Features:

  • Converts SDI to component, composite, or S-video output
  • Supports SD, HD, and 3G-SDI video signals up to 1080p60
  • 10-bit video processing for superior image quality
  • Analog and AES/EBU audio output options
  • Selectable NTSC/PAL formats and HD formats
  • Ideal for use with older monitors, projectors, and analog systems
  • Includes 12V universal power supply with locking connector

Technical Specifications:

  • SDI Input: 1 x SD, HD, or 3G-SDI
  • Analog Video Outputs: 1 x component, 1 x composite, 1 x S-video (Y/C)
  • Audio Outputs: 2 x balanced analog audio, 2 x AES/EBU digital audio (1/4″ jacks)
  • Supported Video Formats: 525i, 625i, 720p50/60, 1080i50/60, 1080p23.98/24/25/30/50/60
  • SDI Compliance: SMPTE 259M, 292M, 296M, 424M
  • Processing: 10-bit color depth
  • Power Supply: 12V DC (locking connector, included)
  • Dimensions: 112 x 92 x 25 mm
  • Weight: Approx. 300 g

Ideal For:

The Blackmagic SDI to Analog Converter is the perfect solution for connecting SDI cameras, routers, or switchers to analog displays, projectors, or legacy recording gear. Whether you’re adapting modern equipment for archival purposes or integrating with older broadcast systems, this converter ensures consistent, high-quality results.

Bridge the gap between digital and analog with the reliable and robust Blackmagic Mini Converter – SDI to Analog.
