Blackmagic Mini Converter SDI to Analog 4K – High-Quality SDI to Analog Video Conversion with Ultra HD Support

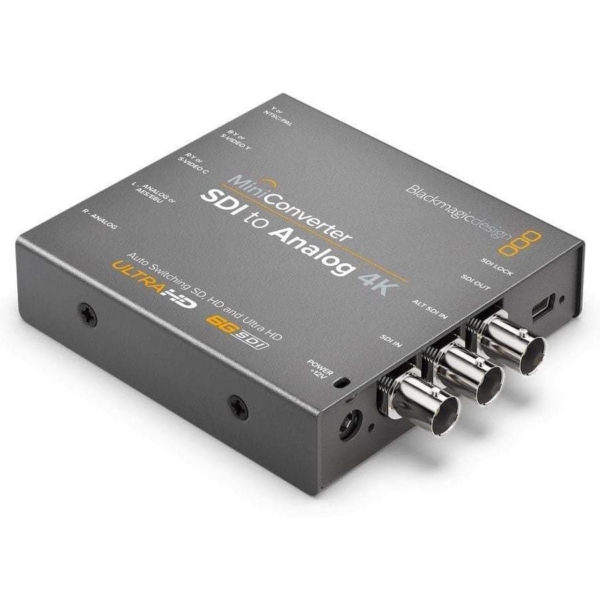

The Blackmagic Mini Converter SDI to Analog 4K is a professional-grade video converter designed to convert SDI signals into analog video output, including component, composite, and S-Video. With full support for 6G-SDI and resolutions up to 2160p30 Ultra HD, this compact unit ensures seamless compatibility with both legacy and modern equipment.

Ideal for broadcast, live production, and AV system integration, the converter auto-detects and adapts to SD, HD, 3G, and 6G-SDI formats. It also includes balanced analog or AES/EBU digital audio output, making it a versatile solution for feeding video monitors, analog switchers, projectors, or recording equipment.

Key Features:

Converts 6G-SDI to analog component, composite, or S-Video
Supports SD, HD, 3G-SDI, and Ultra HD up to 2160p30
Balanced analog or AES/EBU digital audio output
Auto-detects and switches between SD, HD, and Ultra HD formats
Professional-grade signal integrity and low-latency processing
Includes 12V universal power supply with locking connector

Technical Specifications:

SDI Input: 1 x SD/HD/3G/6G-SDI
SDI Loop Output: 1 x SDI loop-through
Analog Video Output: Component YUV, Composite NTSC/PAL, or S-Video
Audio Output: 2-channel balanced analog or AES/EBU digital audio
SDI Standards: SMPTE 259M, 292M, 424M, 2081
Supported Resolutions: SD up to 2160p30 Ultra HD
Color Precision: 10-bit broadcast quality
Power Supply: 12V DC with locking connector (included)
Dimensions: 112 x 92 x 25 mm
Weight: Approx. 300 g

Ideal For:

The SDI to Analog 4K Converter is perfect for bridging digital SDI sources with legacy analog equipment in broadcast studios, post-production facilities, and AV installations. It’s a reliable solution when you need Ultra HD flexibility and analog output in a single compact unit.

Expand your signal compatibility and future-proof your workflow with the Blackmagic Mini Converter SDI to Analog 4K.
