The TS3 Plus is the ideal solution for Thunderbolt 3 Mac & PC users who need to connect multiple devices to their laptops such as SD Card Readers, USB hard drives, dual monitors, digital audio devices, Thunderbolt 3 components, and more.

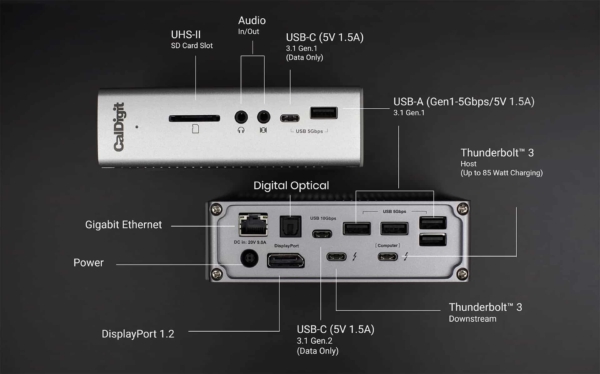

Interface
2 x Thunderbolt™ 3
1 x DisplayPort 1.2
5 x USB-A 3.1 Gen 1 (5Gb/s, 1.5A, 7.5W)
2 x USB-C
1 x USB-C 3.1 Gen 2 (10Gb/s, 1.5A, 7.5W) Rear
1 x USB-C 3.1 Gen 1 ( 5Gb/s, 1.5A, 7.5W) Front
1 x SD Card Reader (SD 4.0 UHS-II)
1 x Digital Optical Audio (S/PDIF)
1 x Gigabit Ethernet
1 x Analog Audio In (Stereo)
1 x Analog Audio Out (Stereo)
Dimensions and Weight
Height : 5.15 inches (131.0 mm)
Width : 1.57 inches (40.0 mm)
Depth : 3.87 inches (98.44 mm)
Weight: 1.04 lbs (0.47 kgs)
In the Box
1 x CalDigit TS3 Plus
1 x Power Adapter (180W)
1 x Power Cord
1 x Thunderbolt 3 Cable (Certified 40Gb/s, up to 100W)
