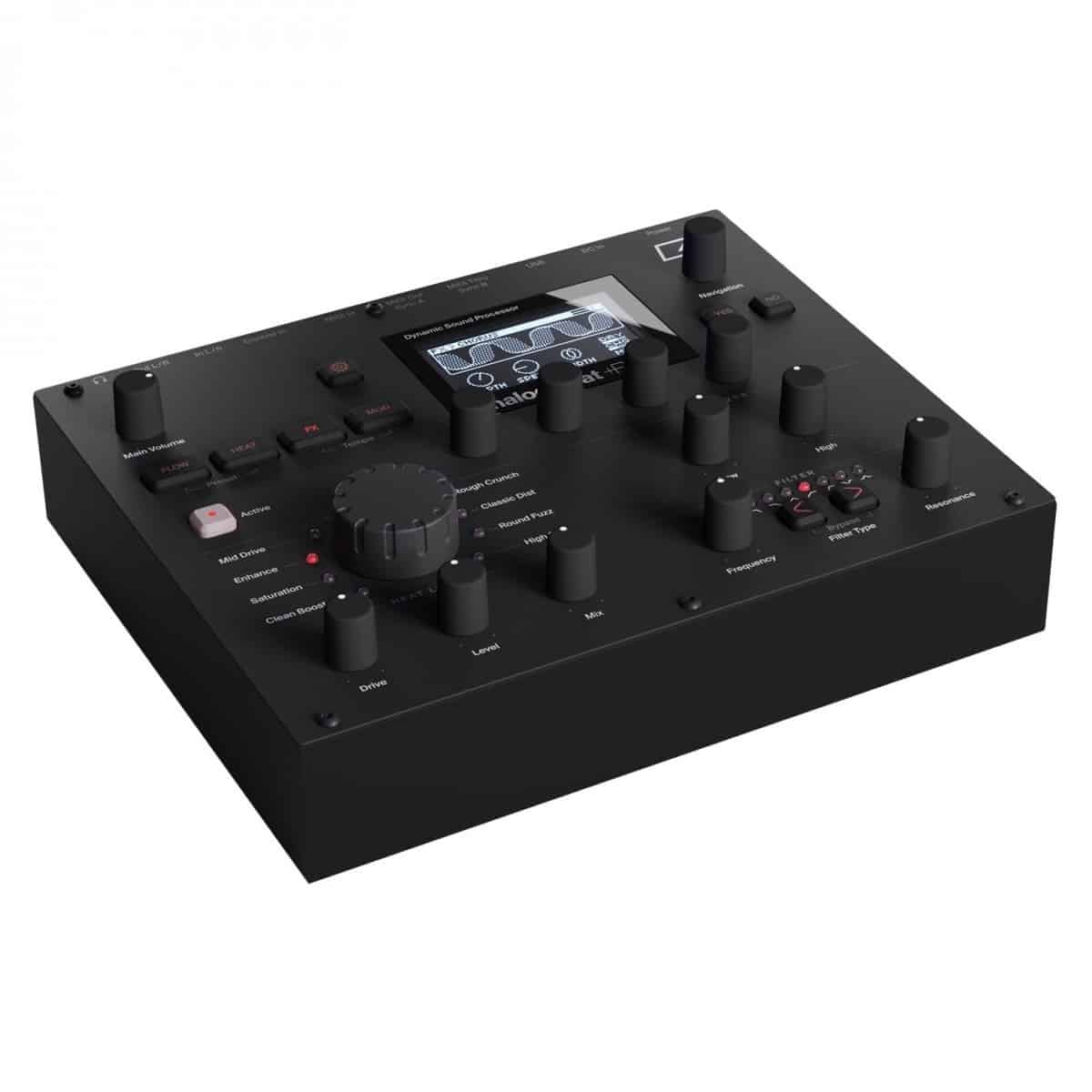

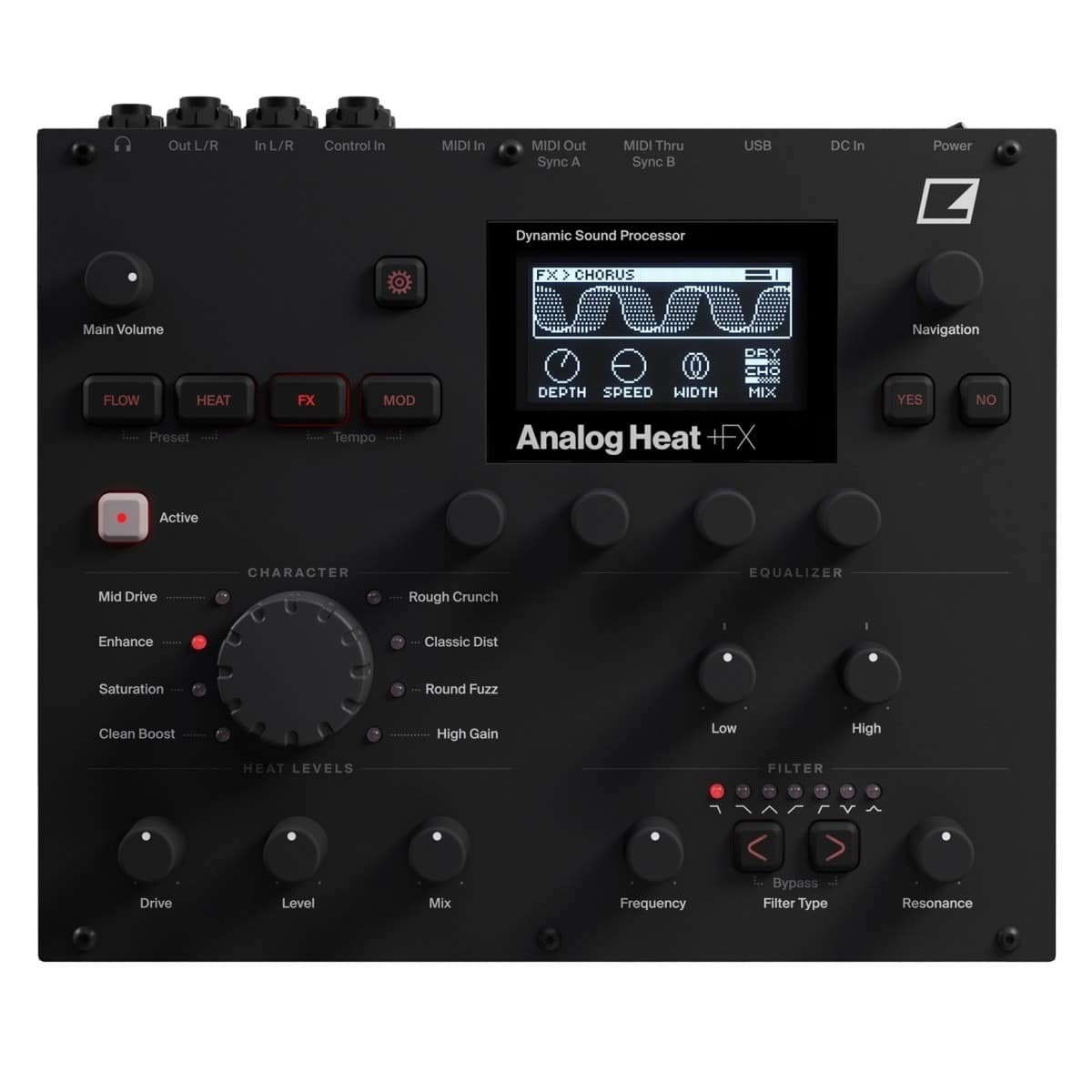

Elektron Analog Heat +FX
The ultimate tool to create your signature sound. On top of its powerful analog distortion circuits, filter, and EQ, Elektron added a
new layer of digital effects. Using the newly designed graphical user interface, you can freely arrange the
effect chain and choose the order of the FX blocks. Then, use the expanded internal and external modulation capabilities to set it all in motion.
Specifications
Sound processing
- 8 × stereo analog distortion circuits
- Stereo analog multi-mode filter (7 filter types)
- 2-band adaptable stereo analog EQ
- Noise Gate
- Reverb
- Delay
- Chorus
- Warble
- Bits
- Compressor
- Bass focus
Modulation
- 1 × assignable envelope generator/envelope follower with two destinations
- 3 × assignable LFO (with two destinations per LFO)
Storage
- 512 user preset slots

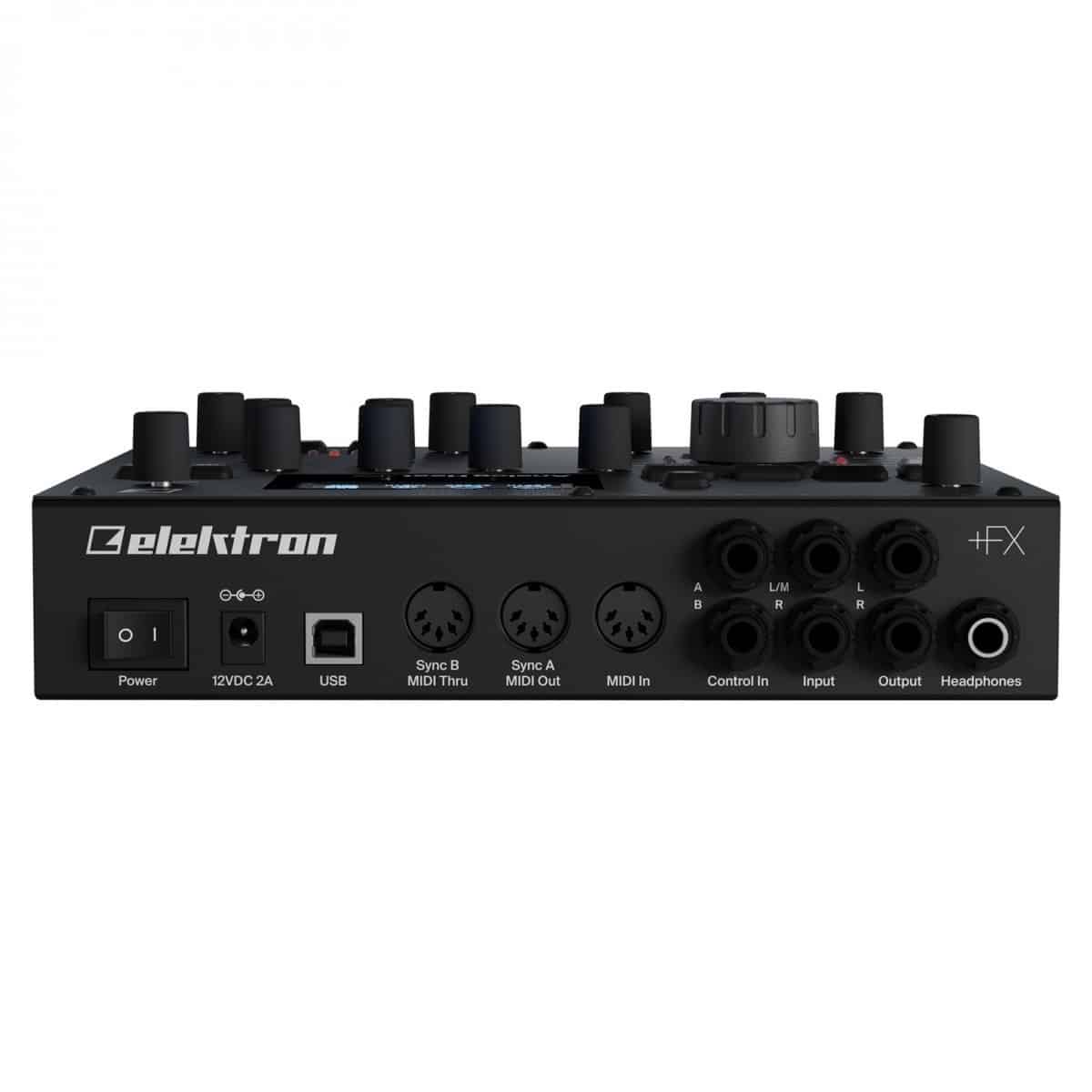

Hardware
- 128×64 pixel OLED screen
- MIDI In/Out/Thru with DIN Sync out
- 2 × ¼″ balanced audio out jacks
- 2 × ¼″ balanced audio in jacks
- 1 × ¼″ stereo headphones jack
- 2 × ¼″ CV/Expression pedal input jacks
- 48 kHz, 24-bit D/A and A/D converters
- Hi-Speed USB 2.0 port
Audio outputs
- Headphones out level: +19 dBu peak
- Headphones output impedance: 36 Ω
- Impedance balanced main outputs level: +19 dBu peak
- Main outputs impedance: 440 Ω unbalanced
Audio inputs
- Balanced audio input level: +19 dBu peak
- Audio input impedance: 39 kΩ
Control inputs
- Input level: -5 V – +5 V
- Accepts CV, expression pedals, footswitches
Physical specifications
- Sturdy steel casing
- Dimensions: W215 x D184 x H63 mm (including audio outputs, knobs and feet)
- Weight: approximately 1.5 kg
- 100×100 mm VESA mounting holes
Miscellaneous
- Overbridge enabled
- Class compliant USB audio
- 3 year Elektron warranty
Included in the box
- Power Supply PSU-3c
- Elektron USB cable
