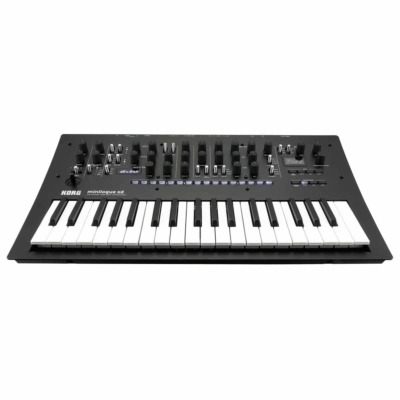

Korg Minilogue XD
4.599,00 kr. (3.679,20 kr. ex. moms)
På fjernlager
FORVENTET LEVERING: 04 jan 2025(ved bestilling idag!)
Varenummer (SKU): 41668168
Kategori: Keyboards / Synths
Brand:Korg
Polyphonic Analog Synthesizer
In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential.
- Keyboard
- 37-keys (Slim-key, velocity sensitive)
- Sound Generation
- Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
- Maximum Polyphony
- 4 voices
- Programs
- 500 voices (more than 200 preload, 300 user programs).
Each program provides a program sort function that includes voice mode settings.
Favorite function built in.
- Voice Mode
- 4 (POLY, UNISON, CHORD, ARP / LATCH).
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.
- Sequencer
- 16-step polyphonic sequencer
Motion sequence can be used on up to four parameters
- Main Synthesis Parameters
- VCO1
- WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
- VCO2
- WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
- MODULATION
- SYNC, RING, CROSS MOD DEPTH
- MULTI ENGINE
- NOISE/VPM/USER, TYPE、SHAPE
- MIXER
- VCO1, VCO2, MULTI
- VCF
- CUTOFF, RESONANCE, DRIVE, KEYTRACK
- AMP EG
- ATTACK, DECAY, SUSTAIN, RELEASE
- EG
- ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
- LFO
- WAVE (SAW, TRIANGLE, SQUARE), MODE（BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
- Main effect Parameters
- EFFECT
- TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
- MULTI ENGINE
- Noise Generator
- 4 types
- VPM oscillator
- 16 types
- User oscillator
- 16 slots
- MOD EFFECTS
- CHORUS
- 8 types
- ENSEMBLE
- 3 types
- PHASER
- 8 types
- FLANGER
- 8 types
- USER
- 8 types
- DELAY
- DELAY
- 12 types
- USER
- 8 slots
- REVERB
- REVERB
- 10 types
- USER
- 8 slots
- Controls
- Joy stick that can modify different parameters for each program, PORTAMENTO knob
- Display
- Main
- Real-time OLED oscilloscope provides visual feedback of parameter changes
- MULTI ENGINE section
- 7 segments x 6 digit LED display

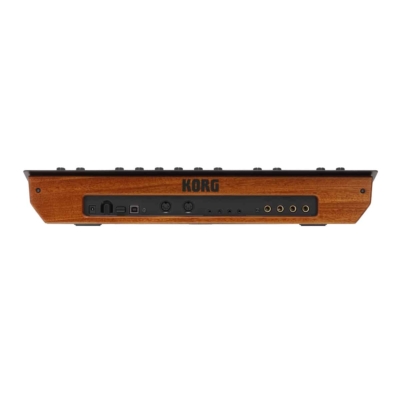

- Input/Output connectors
- Headphone jack (Stereo phone jack)
- OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
- CV IN 1, CV IN 2 jacks (3.5 mm [1/8″] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)
- SYNC IN jack (3.5 mm [1/8″] mini jack, maximum input level 20 V)
- SYNC OUT jack (3.5 mm [1/8″] mini jack, output level 5 V)
- MIDI IN jack
- MIDI OUT jack
- USB B jack
- DAMPER jack (half damper is not supported)
- Power Supply
- AC adapter (DC9 V)
- Power Consumption
- 8 W
- Dimensions (W x D x H)
- 500 mm x 300 mm x 85 mm / 19.69″ x 11.81″ x 3.35″
- Weight
- 2.8 kg / 6.17 lbs.
- Included Items
- AC adapter
- Accessories (sold separetely)
- SC-MINILOGUE Soft shall case
- SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK
- SQ-CABLE-6 Sync cable
- DS-1H Damper pedal
- PS-1 Pedal switch
- PS-3 Pedal switch
